Service Manual 6288 RM-78/RM-268
Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (24)

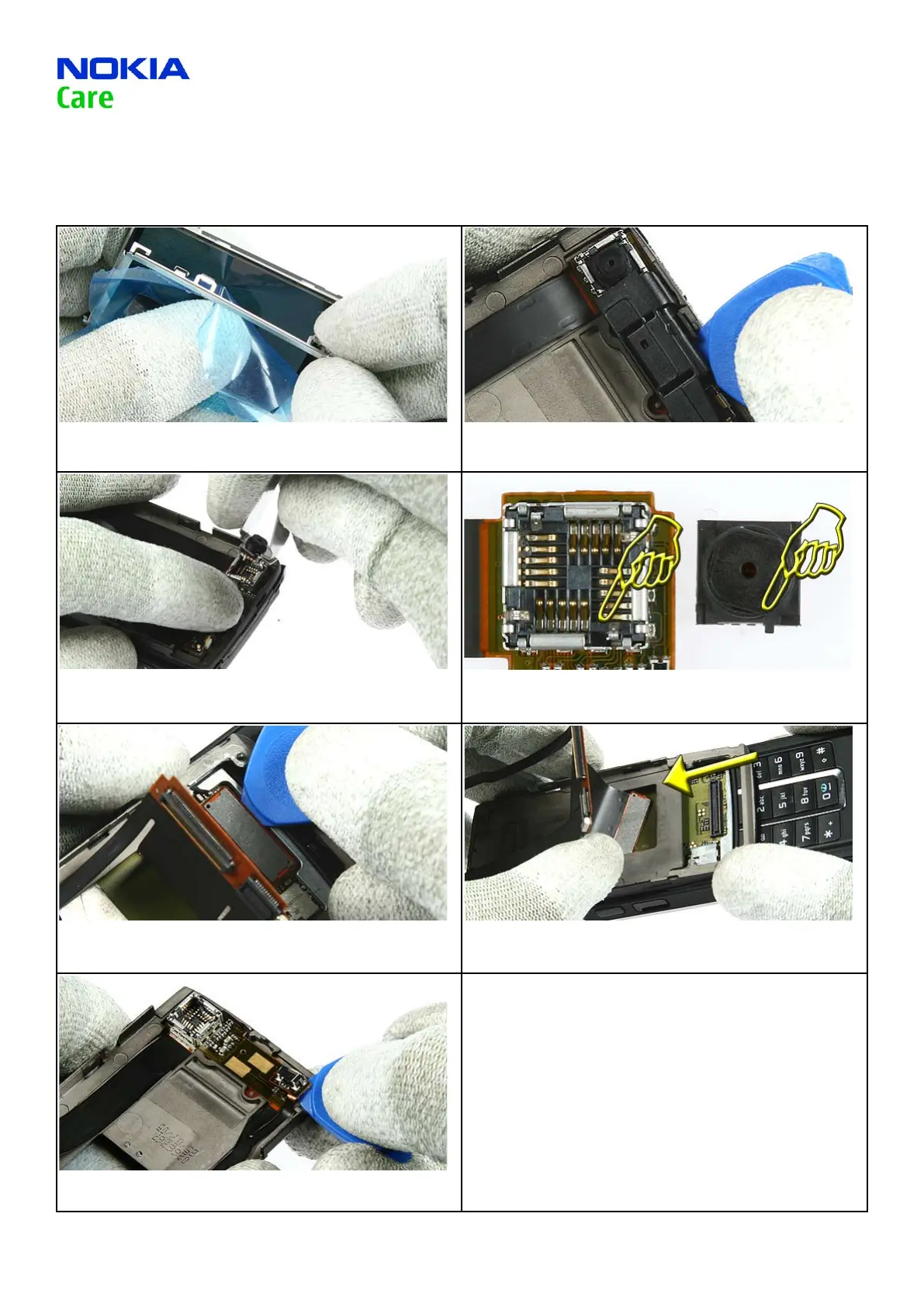

19.) (VGA Camera only RM-78): Release the VGA Camera
with the SS-51. Hold the Main Flex near the Camera Socket
while removing the camera.
20.) (VGA Camera only RM-78): For Assembly: Mind the cor-
rect positioning of the VGA Camera.
21.) Shift the unit into mid position. Release the connector
of the Main Flex Assy.
22.) Slot the flex connector through the C-Cover Assy care
-
fully.
23.) Lift the glued Power Switch carefully.
18.) Release the Camera Guide Assy with the SRT-6.
17.) Separate the LCD Module from the Display Metal Shield.
To Next Page
