Nokia 6288 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
26.Feb.2007
16
Service Manual 6288 RM-78/RM-268
Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page (24)

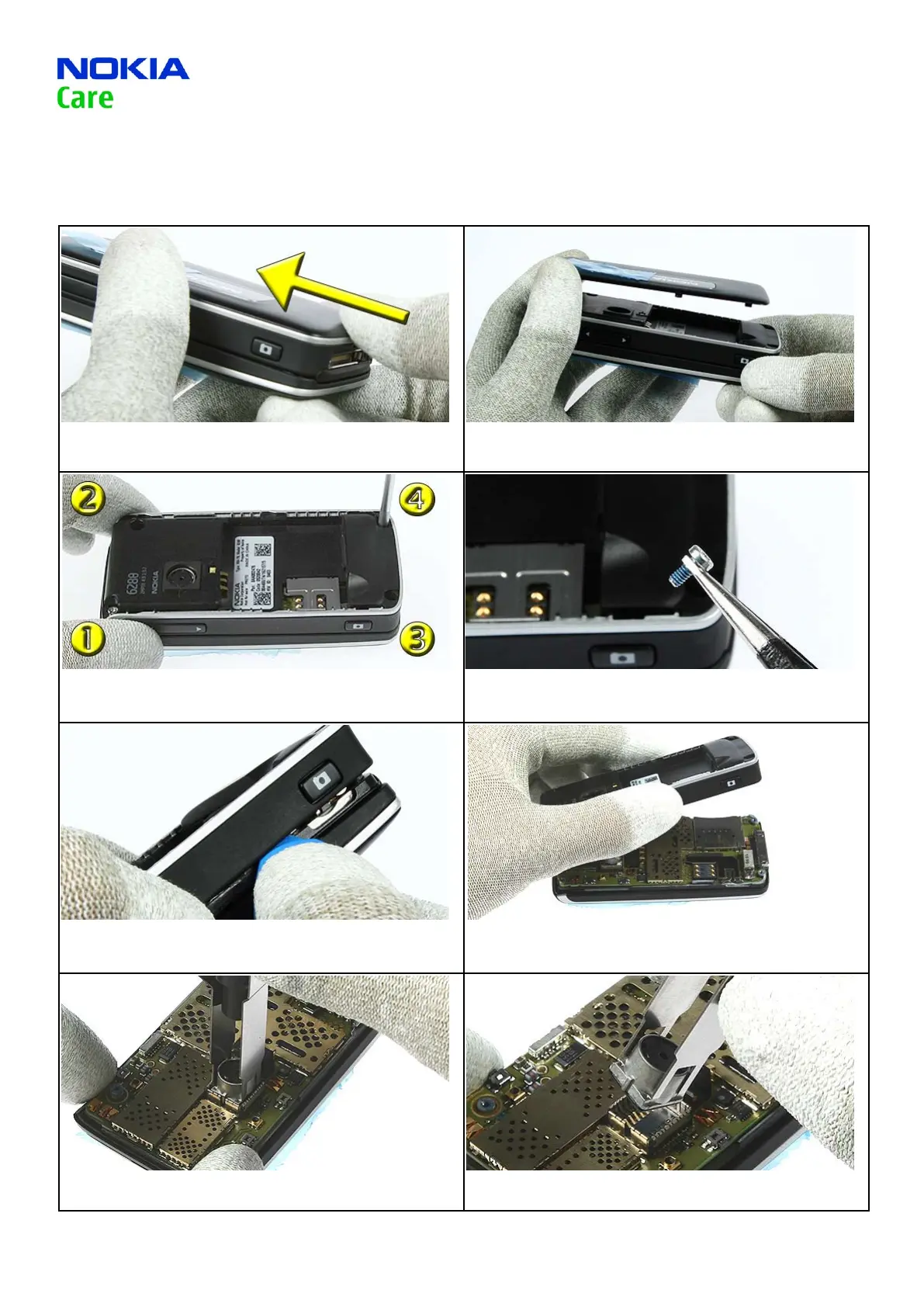

1.) Open the B-Cover by pressing it from the bottom side.
2.) Ensure that no battery is inserted.
3.) Unscrew all Torx size 6 plus screws in the shown order.
For Assembly use the reverse order and a torque of 25 Ncm.
4.) Once removed, the screws can’t be used again. Always
use new screws for assembly.
5.) Release the clips of the D-Cover. 6.) Remove the D-Cover.
7.) Remove the SMIA Camera with the SS-45.
8) Mind the correct position while assembling.
DISASSEMBLY INSTRUCTION (LOWER PART)11.

Nokia 6288 Specifications

General

Display type	TFT
Display diagonal	2.2 \
Display resolution	240 x 320 pixels
Display number of colors	262144 colors
Internal memory	152 MB
Flash card support	Yes
Compatible memory cards	miniSD
Rear camera resolution	1600 x 1200 pixels
Interface	Pop-Port, PC Suite
Networking type	GSM, EDGE, UMTS
Playback formats	MP3, MP4, AAC & eAAC+
Operating frequency	900/1800/1900/2100 MHz
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Ringer type	Polyphonic
Polyphonic rings quantity	64
Form factor	Slider
Personal info management (PIM)	Alarm clock, Calculator, Calendar
Product color	Black
Talk time (2G)	4.5 h
Standby time (2G)	280 h
Bluetooth version	2.0+EDR
Data network	3G, EDGE, GPRS
Mobile network generation	3G

Weight and Dimensions

Depth	21 mm
Width	46 mm
Height	100 mm
Weight	115 g
