Service Manual 6288 RM-78/RM-268
Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page
(24)

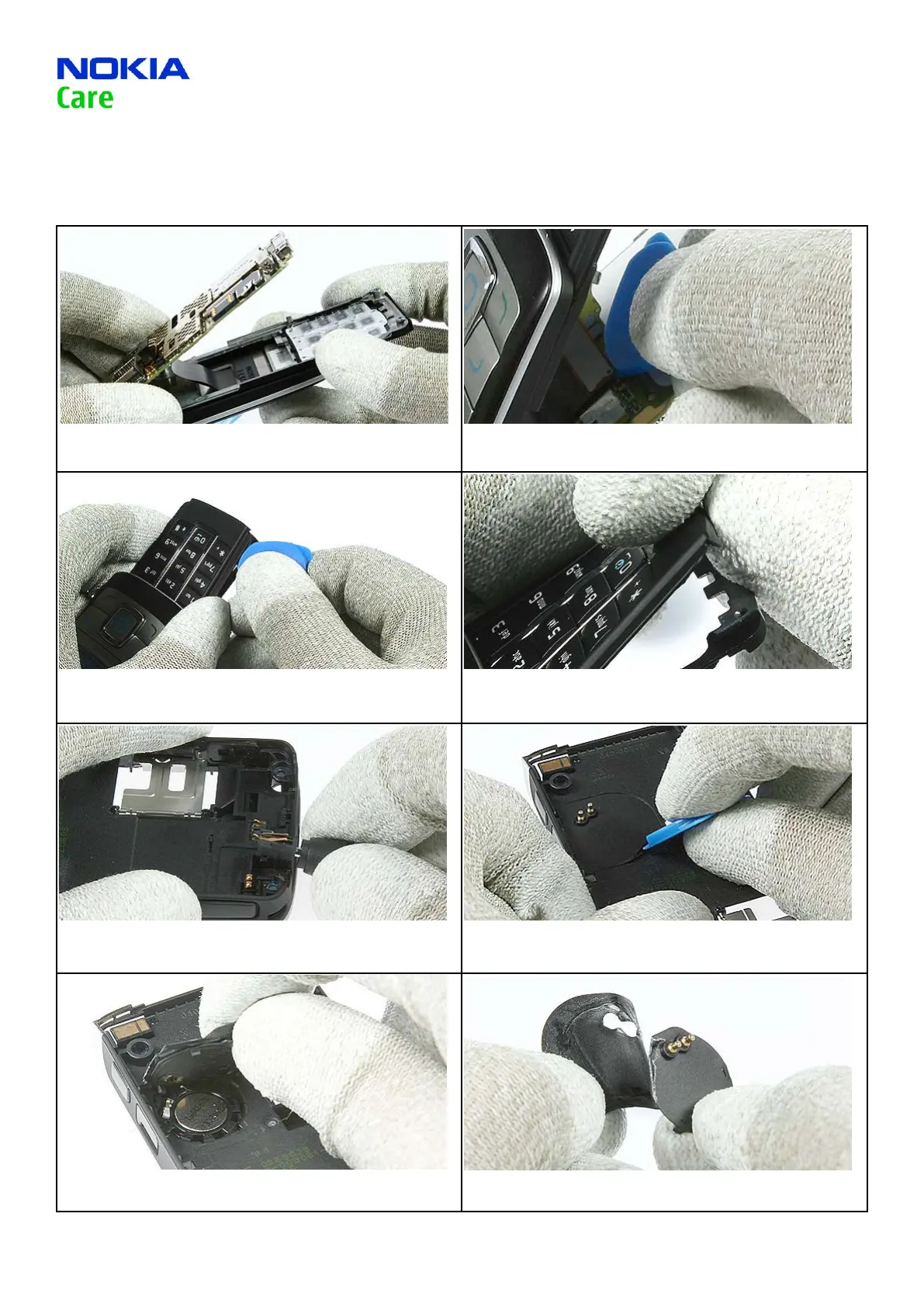

9.) Lift up the Engine Module, but bear in mind that the flex
connector is still connected.
10.) Open the flex connector carefully.
11.) Lever out the glued Keymat Assy. 12.) Ensure that no residue of the adhesive remains.
Always use new adhesive when reassemble.
13.) Remove the DC Jack with the DC Plug.
14.) Release the IHF Label with the SRT-6.
15.) Remove the IHF Lid. 16.) Peel up the IHF Label completely. Always use a new
one when reassembly. Ensure that no residues remain.
