Service Manual 6288 RM-78/RM-268
Copyright © 2006-2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page
(24)

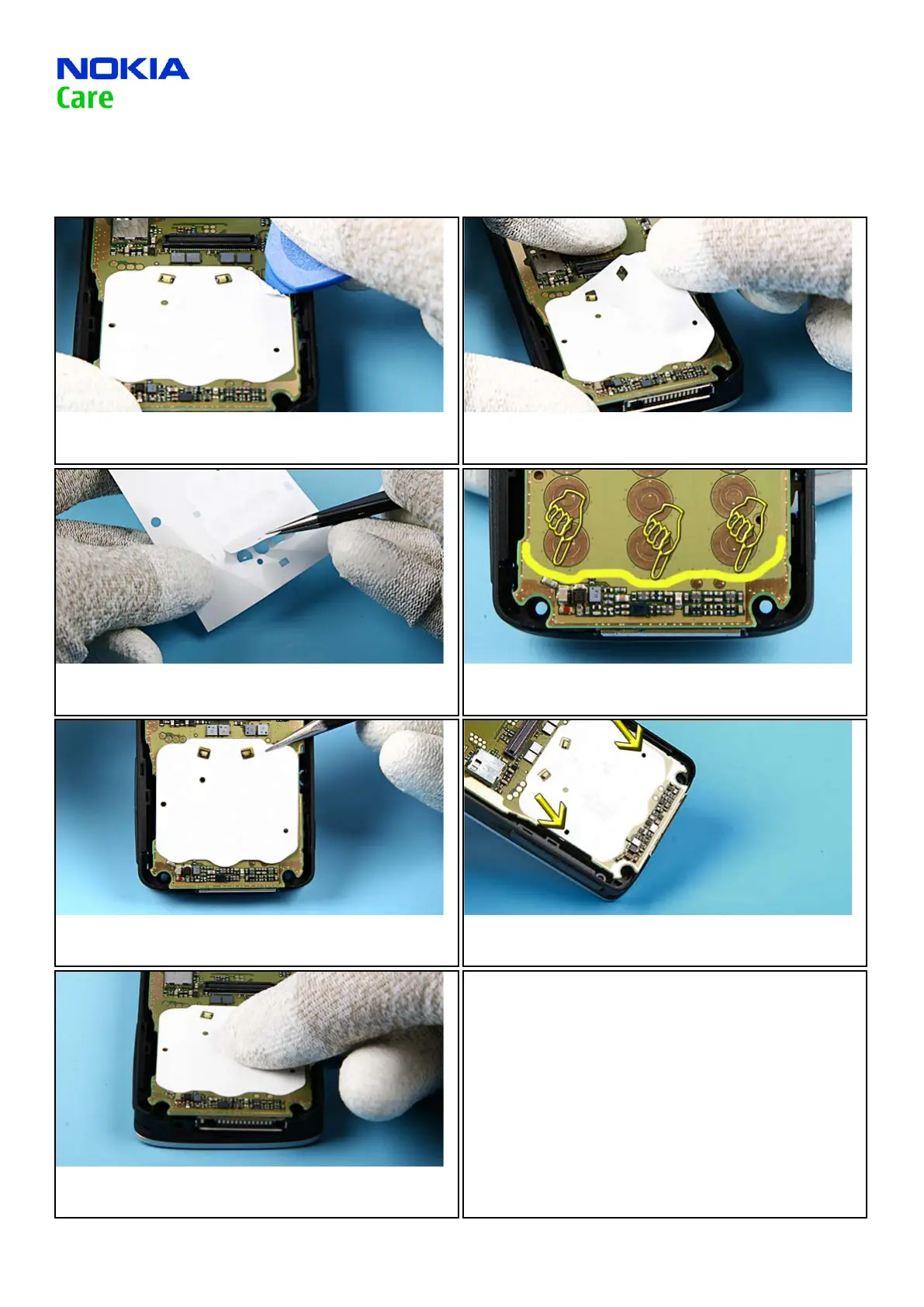

MAIN DOMESHEET EXCHANGE INSTRUCTIONS12.
1. Carefully remove the MAIN DOMESHEET with SRT-6. Be
careful not to damage surrounding components.
2. Remove the MAIN DOMESHEET slowly.
3. Take the new MAIN DOMESHEET from the carrier lm. 4. There are outline markings which show the exact
placement of the DOMESHEET.
5. Place the new MAIN DOMESHEET onto the ENGINE MODULE. 6. The holes of the dome sheet must also match exactly to
those in the module.
7. Finally, x the MAIN DOMESHEET all-over.
