6303 Classic RM-443
Service Manual Level 1&2
12 CONFIDENTIAL

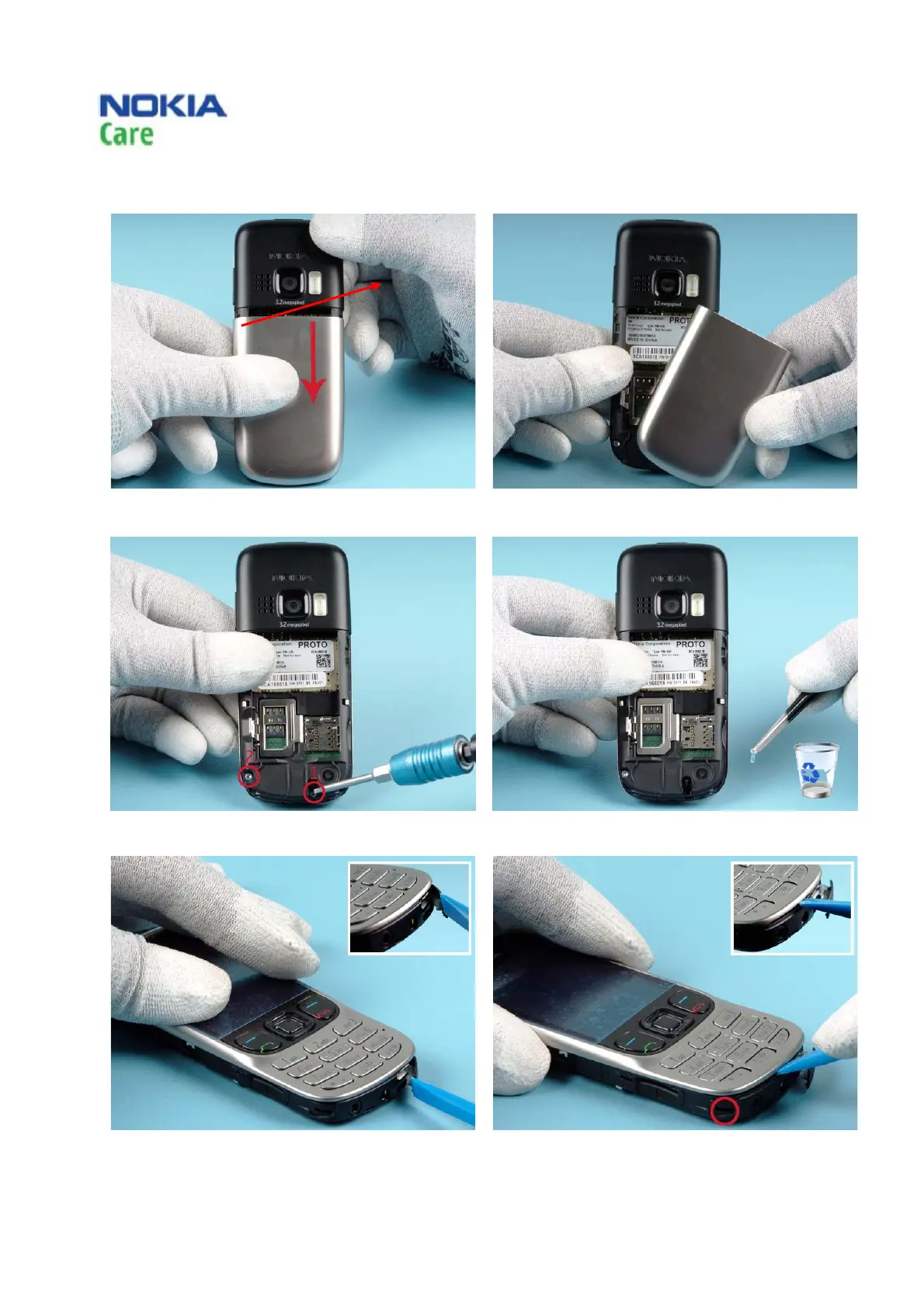

10. DISASSEMBLY INSTRUCTIONS 10. DISASSEMBLY INSTRUCTIONS
1) Open the C-COVER by sliding the cover as
shown.
2) Remove the C-COVER.
3a) Unscrew the two T6+ screws.
3b Remove the screws with the tweezers. Do not
use the screws again.
4) Use the SS-93 tool to open the USB COVER to
have better access on the bottom side.
5) Release the bottom clip with the SS-93 tool.
Issue 2 Copyright © 2009 NOKIA. All rights reserved.
