6303 Classic RM-443
Service Manual Level 1&2
15 CONFIDENTIAL

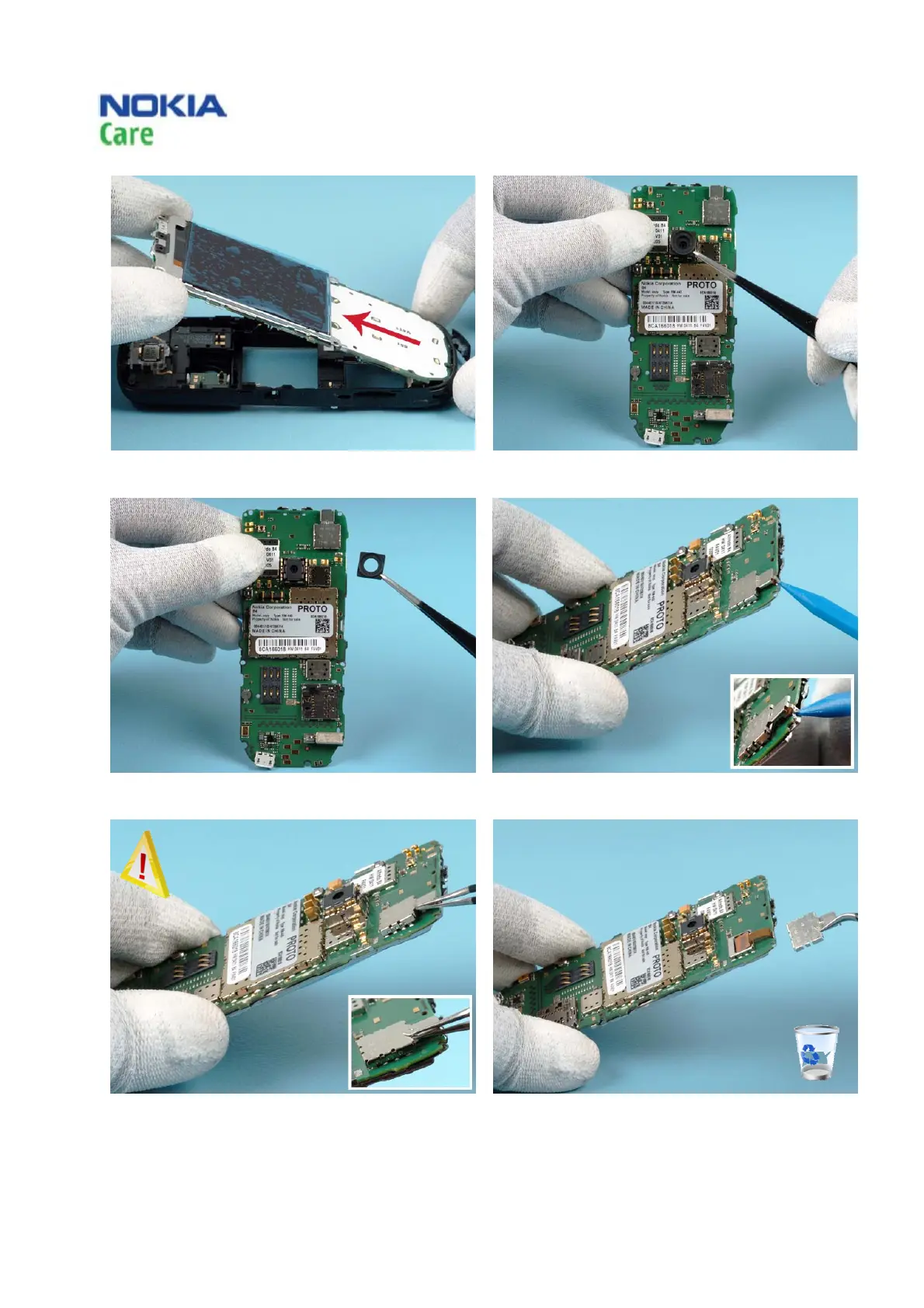

15) Separate the PWB from the B-COVER ASSY by
lifting the PWB in the direction shown.
16a) Release the CAMERA GASKET with the
tweezers.
16b) Remove the CAMERA GASKET with the
tweezers.
17) Open the clip of FLEX SHIELDING with the SS-
93 tool.
18a) Carefully release the FLEX SHIELDING with the
tweezers. Be careful not to touch the flex under
the FLEX SHIELDING.
18b) Remove the FLEX SHIELDING with the
tweezers. Do not use this part again.
Issue 2 Copyright © 2009 NOKIA. All rights reserved.
