6303 Classic RM-443
Service Manual Level 1&2
14 CONFIDENTIAL

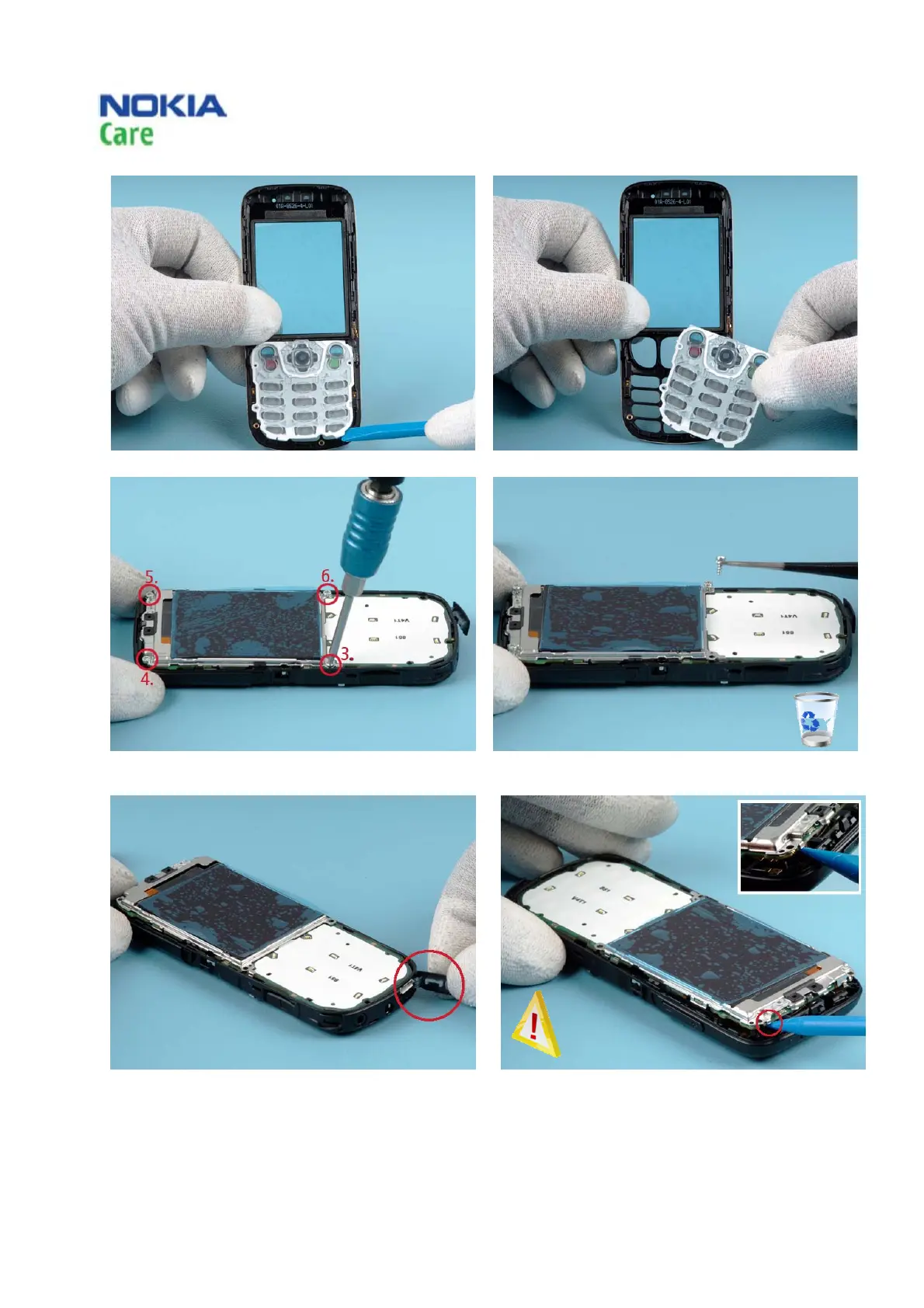

10) Use the SS-93 tool to release the KEYMAT ASSY. 11) Remove the KEYMAT ASSY.
12a) Unscrew the four T6+ screws in the order
shown.
12b) Remove the screws with the tweezers. Do
not use the screws again.
13) Make sure that the USB COVER is still open.
14) Use the SS-93 tool to release the clip on top to
lift up the PWB incl. UI SHIELDING ASSY and LCD.
Be careful not to damage the components on the
PWB!
Issue 2 Copyright © 2009 NOKIA. All rights reserved.
