PAGE 10 (19) Approved 1.0
Nokia Mobile Phones Customer Care E&A
SQX 00444-en MWy
Technical Services, Repair Concepts Confidential 25.09.2002
5. SW-UPDATE
To use FLS-4S Flash Dongle you have to follow the user guide inside the sales package. Please
check always for the latest version of flash software, which is available on Nokia Partner Web Site.

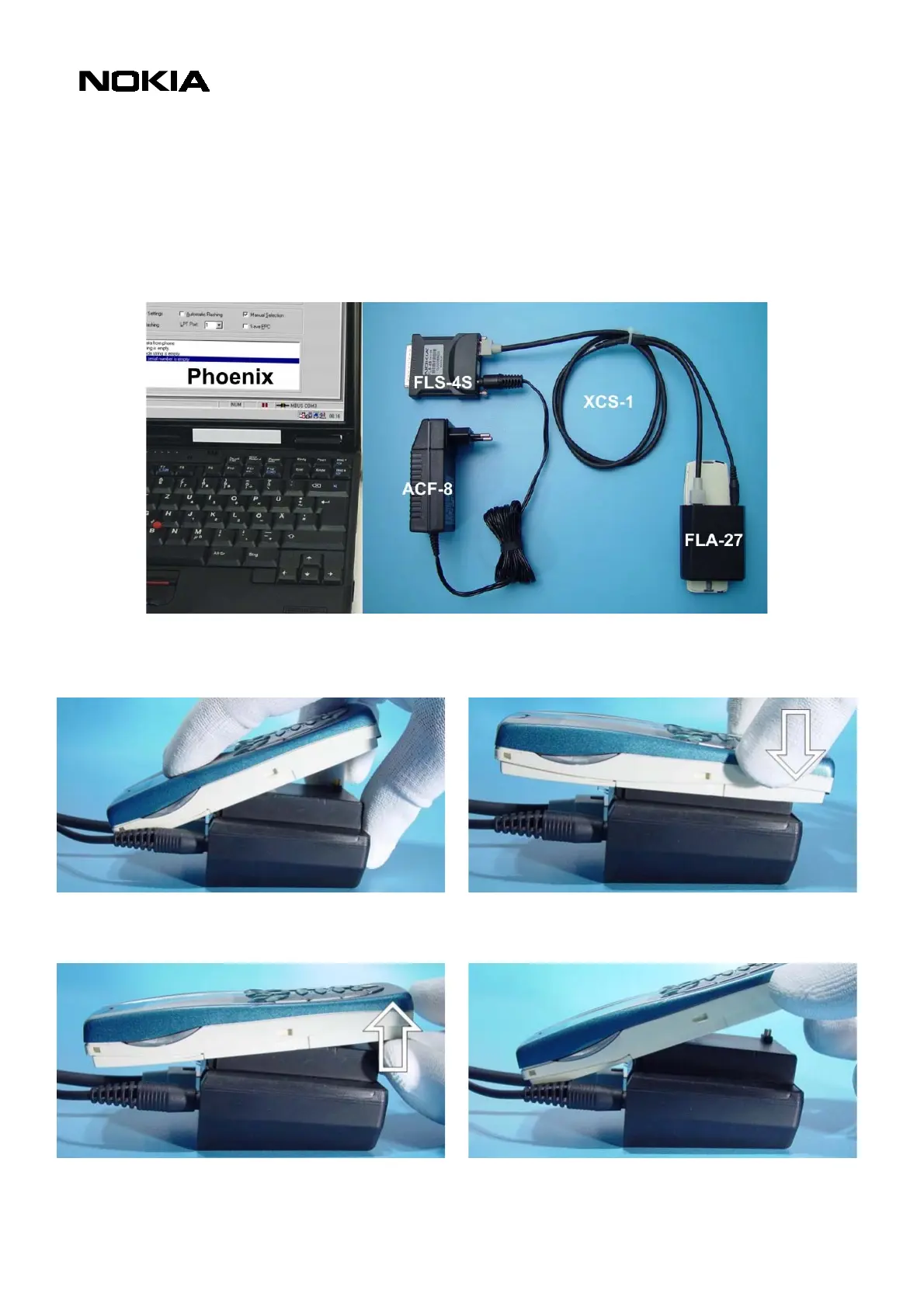

Flash Concept – (Point of Sales)
It is very important to follow this insertion and removal procedure, otherwise the contact pins of Flash
Adapter will be damaged.
Insert the Flash Adapter FLA-27 like a battery, start
at the battery connector side.
Now, push down the bottom side of the phone, do
not use too much force.
When removing the Flash Adapter, always start from
the bottom side of the unit.
Take away the unit now.
Service Manual 7210/6610 Level 1&2 Copyright 2002 © Nokia Corporation
