Nokia 7210 - Disassembly Instructions (See also Video Clips)

PAGE 12 (19) Approved 1.0
Nokia Mobile Phones Customer Care E&A
SQX 00444-en MWy
Technical Services, Repair Concepts Confidential 25.09.2002

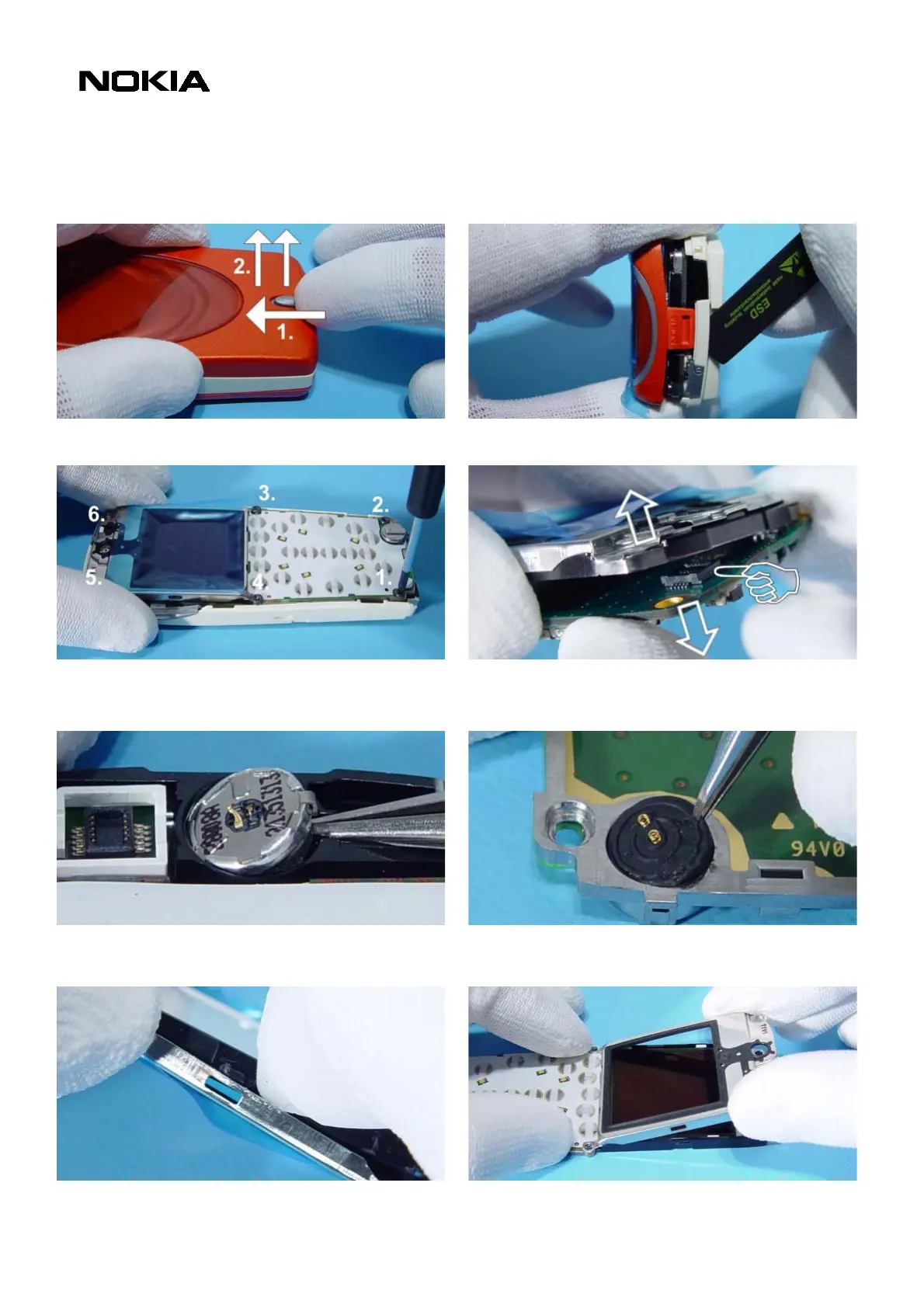

7. DISASSEMBLY INSTRUCTIONS (SEE ALSO VIDEO CLIPS)
Push the Release Button to the left before pulling up
the B-Cover.
Unlock the top guidance to remove the A-Cover.
Unscrew the six T6 screws, using the order shown.
For assembly, the reverse order and a torque of
17Ncm have to be used.
Take the modules from the C-Cover and unplug the
display connector by pulling the modules apart
carefully.
The Speaker is attached with double-sided adhesive
Foam Tape. Always use new tape when mounting the
S
p
eaker.
Do not damage the spring contacts, when removing
the Microphone.
Open the snaps with SRT-6 on both sides of the
Display Shield.
The Display Shield is attached with hooks at its
bottom side.
Service Manual 7210/6610 Level 1&2 Copyright 2002 © Nokia Corporation
