[ 48 ]
3 After you have removed the back cover, insert your finger into the
finger grip and lift the battery from its compartment.

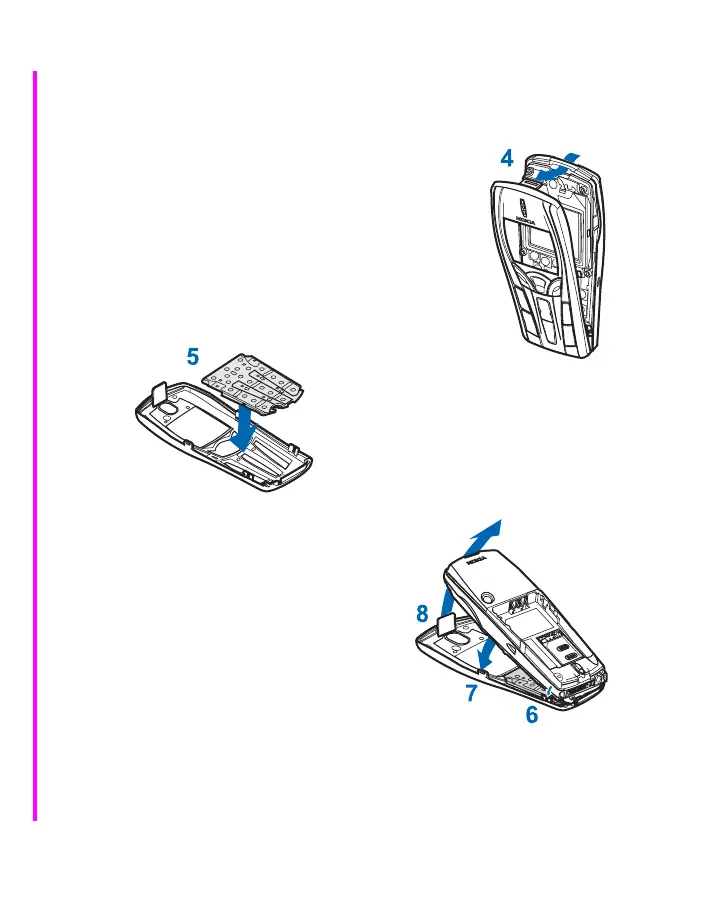

REMOVE THE FRONT COVER
4 Press the front cover latch on the top of the
phone while gently pulling the top of the front
cover away from the rest of the phone.
INSTALL THE KEYMAT AND NEW FRONT COVER
5 Remove the key mat from the old front cover and
place it into the new front cover as shown.
6 Insert the latches from the bottom of
the new front cover into the
matching holes at the bottom of the
phone.
7 Gently push the latches from the
middle of the front cover into the
matching holes in the middle of the
phone.
8 Gently push the cover latch on the
top of the front cover through the
locking hole in the top of the phone,
and snap the cover into place.
