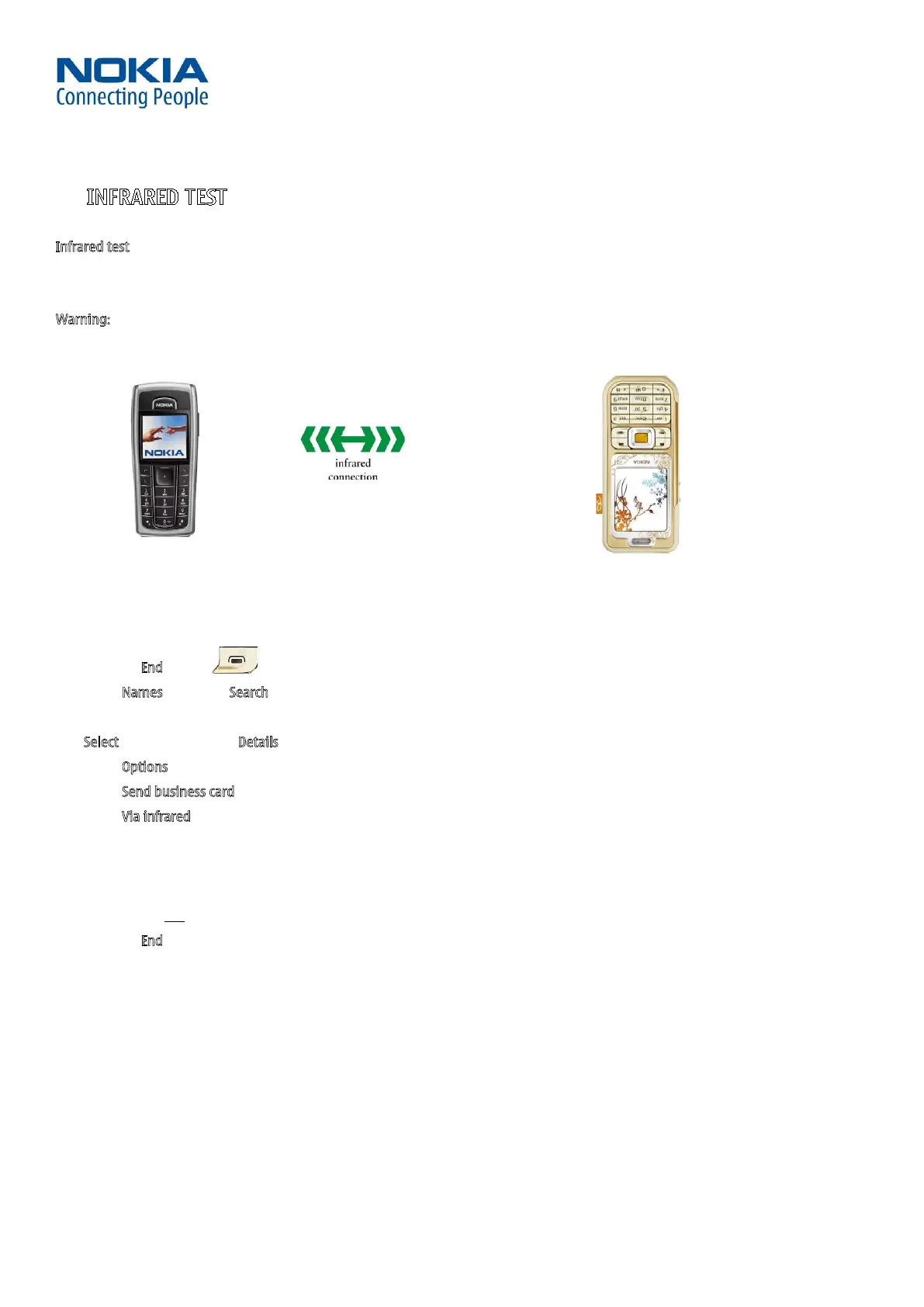

INFRARED TEST15.
Infrared test
You need another infrared device (e.g. 6230) to do a GoNoGo test. The infrared windows of the devices must be directed to
each other and should have a distance of approximate 15 cm. Make sure that infrared is activated in receiver device.
Warning: Do not point the IR (infrared) beam at anyone’s eye or allow it to interfere with other IR devices. This device is a Class 1 Laser
product.
Reference unit, infrared activated Test unit
Settings on the test unit:
• Press the End button to reach the Home Menu
• Select Names and select Search for an entry
If phone and SIM memory is empty, create one new entry.
• Select an entry and select Details
• Select Options
• Select Send business card
•
Select Via infrared
If sending of business card fails, make sure again that infrared windows are directed to each other and infrared is activated in
reference unit. Then try again sending.
Test was successful, if you get the message “Business card received” on the Reference unit.
You will not get a conrmation on sender device.
• Press the End button to reach the Home Menu

Nokia 7360 Specifications

General

FM radio	Yes
Ringer type	Polyphonic
Polyphonic rings quantity	24
Rear camera resolution	640 x 480 pixels
Playback formats	MP3/AAC
Operating frequency	GSM 900/1800/1900 MHz
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
Internal memory	4 MB
Product color	Brown
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5B
Talk time (2G)	4 h
Battery capacity	760 mAh
Standby time (2G)	450 h
Data network	GPRS

Weight and Dimensions

Depth	45 mm
Width	105 mm
Height	18 mm
Weight	92 g
