Nokia 7360 Service Manual

WW Competence Transfer
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
21.11.2005
12
Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page
(26)

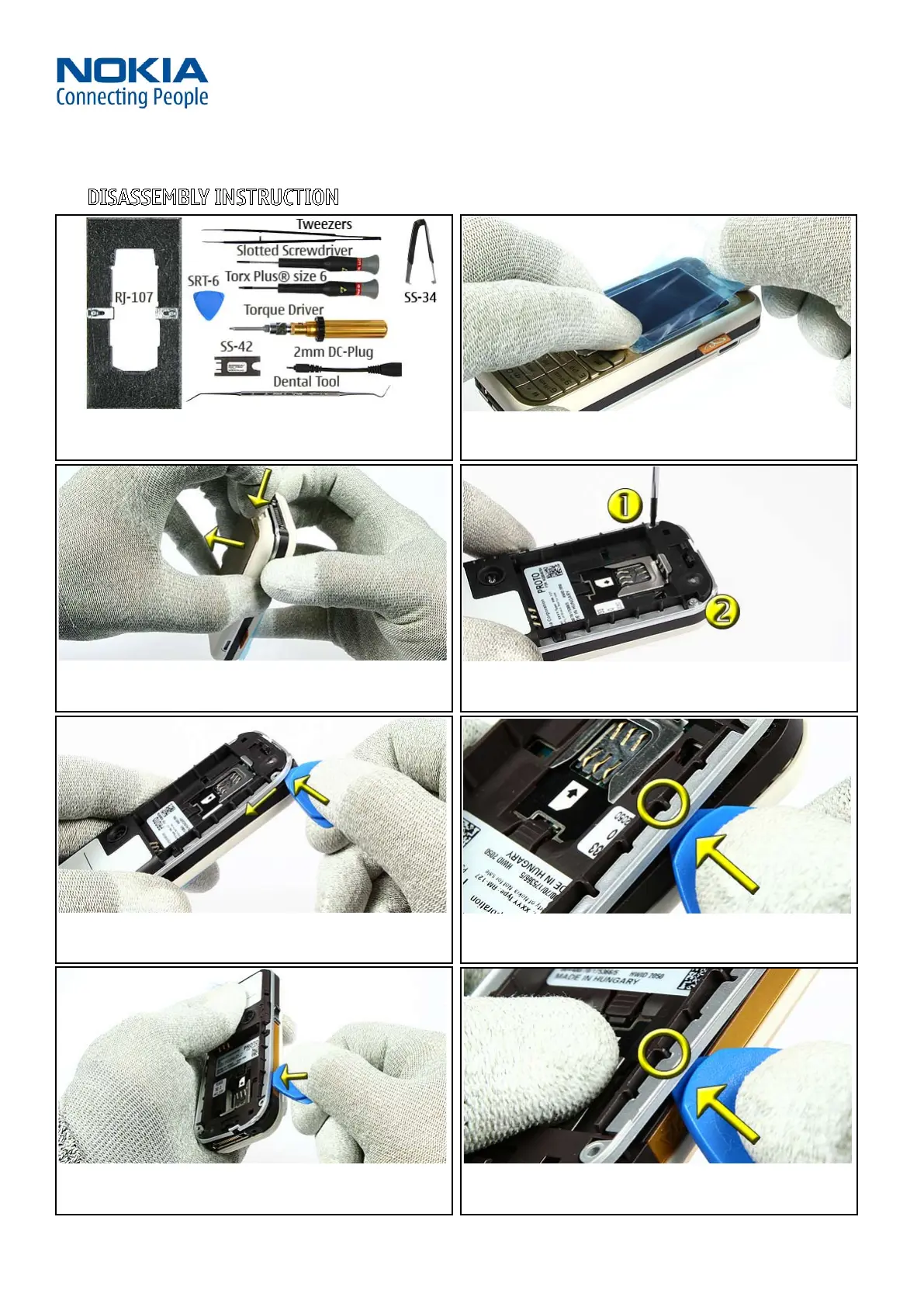

DISASSEMBLY INSTRUCTION9.
1. You need the following tools. 2. Protect the window with a plastic film.
3. Press the release button of the C-COVER ASSY and lift it from
the bottom side of the phone.
4. Unscrew the two Torx Plus® size 6 screws in the order shown.
For Assembly use the reverse order and a torque of 23Ncm.
5. Place the SRT-6 between TRIM PAINTED and B-COVER ASSY and
lift it a little bit. Move it to the shown direction and ...
6. ... stick deeper the SRT-6 at the marked position till the TRIM
PAINTED unlocks.
7. Now place the SRT-6 between TRIM PAINTED and B-COVER ASSY
on the opposite side and ...
8. ... unlock it in the same way before on the other side.

Nokia 7360 Specifications

General

FM radio	Yes
Ringer type	Polyphonic
Polyphonic rings quantity	24
Rear camera resolution	640 x 480 pixels
Playback formats	MP3/AAC
Operating frequency	GSM 900/1800/1900 MHz
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
Internal memory	4 MB
Product color	Brown
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5B
Talk time (2G)	4 h
Battery capacity	760 mAh
Standby time (2G)	450 h
Data network	GPRS

Weight and Dimensions

Depth	45 mm
Width	105 mm
Height	18 mm
Weight	92 g
