Nokia 7360 Service Manual

WW Competence Transfer
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
21.11.2005
6
Service Manual 7360 RM-127 Copyright © 2005 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page
(26)
Recommendation for the ecologically friendly disposal of components. Colorized components show the different
categories. See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.

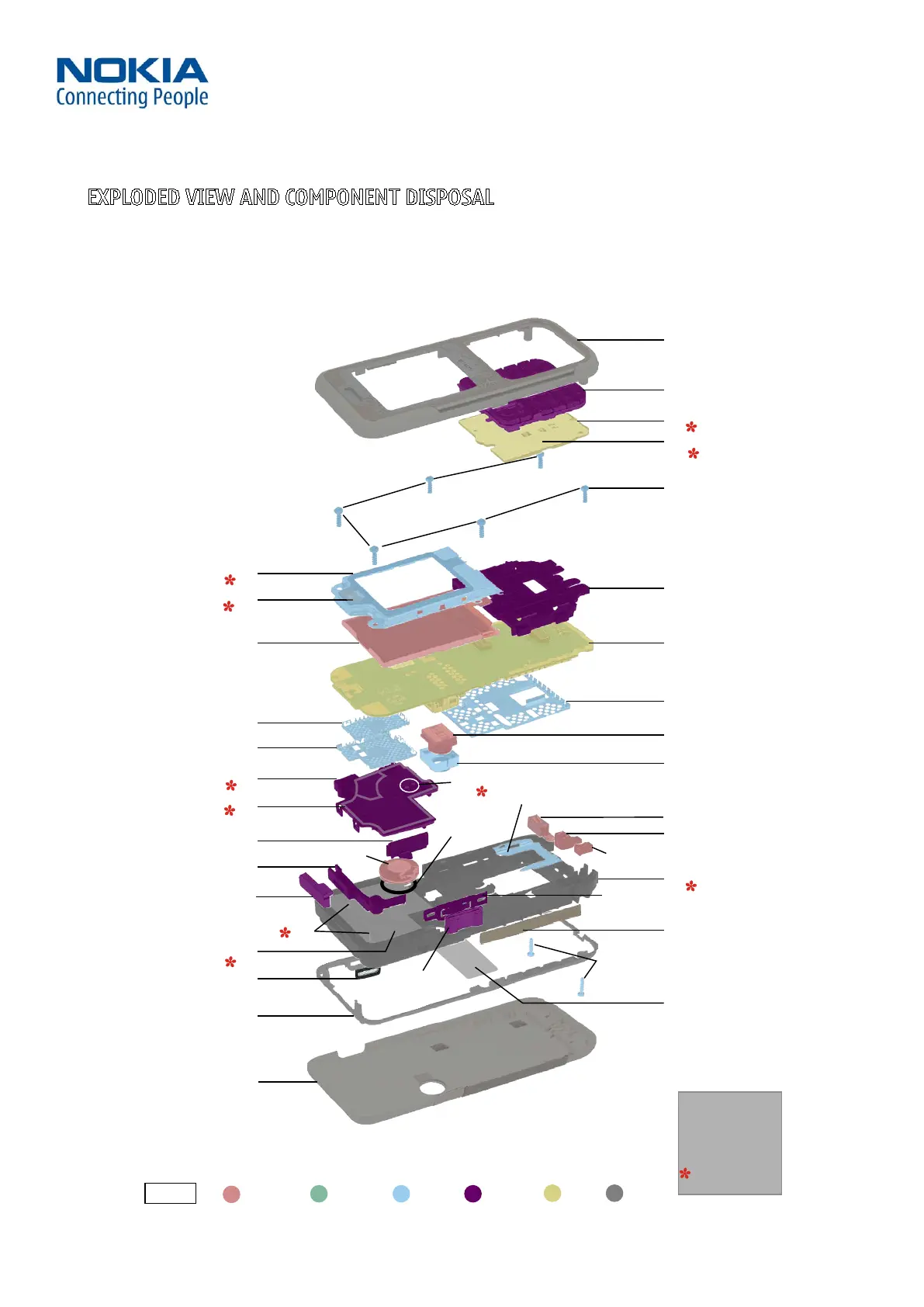

EXPLODED VIEW AND COMPONENT DISPOSAL4.
ELECTRO
SILICON METAL
PLASTIC
PWB
COVER
7360 RM-127 Exploded view
Ver. 2.0
A1= UI SHIELD ASSY
A2= UI MODULE ASSY
A3= B-COVER ASSY
incl. A4
A4= IHF LID ASSY
= only available as
assembly
DOMESHEET (A2)
I007
UI MODULE (A2)
I006
UI PWB
HOLDER (A2)
I008
EARPIECE (A1)
I005
UI SHIELD (A1)
I004
A-COVER ASSY
I001
KEYMAT
I002
TRIM PAINTED
I034
IHF MESH
I035
LCD MODULE
I009
PA SHIELD LID
I012
BB SHIELD LID
I010
ENGINE MODULE
(NOT SUPPLIED)
I015
VGA CAMERA
SHIELD
I013
VGA CAMERA
I014
RF SHIELD LID
I011
SCREWS RF
1.8X6 T6+
I003
SCREWS RF
1.8X7.4 T6+
I036
C-COVER ASSY
I037
TYPE LABEL
(LEVEL 3/4 ONLY)
I038
B-COVER (A3)
I019
POGO PIN (A3)
I021
DC-JACK (A3)
I029
POWER KEY (A3)
I032
POWER KEY ACTUATOR (A3)
I033
MICROPHONE (A3)
I028
VOLUME KEY
ACTUATOR (A3)
I026
VOLUME KEY (A3)
I025
IRDA WINDOW (A3)
I024
IHF SPEAKER (A3)
I030
IHF SPEAKER
ADHESIVE (A3)
I031
SIDE
DECORATION (A3)
I022
VIBRA MOTOR (A3)
I027
SIM-GRIP (A3)
I023
ANTENNA RADIATOR +
DECO FOIL (A3)
I020
IHF LID (A4)
I018
IHF GASKET (A4)
I017
IHF PIN(A4)
I016

Nokia 7360 Specifications

General

FM radio	Yes
Ringer type	Polyphonic
Polyphonic rings quantity	24
Rear camera resolution	640 x 480 pixels
Playback formats	MP3/AAC
Operating frequency	GSM 900/1800/1900 MHz
Display resolution	128 x 160 pixels
Display number of colors	65536 colors
Internal memory	4 MB
Product color	Brown
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Battery type	BL-5B
Talk time (2G)	4 h
Battery capacity	760 mAh
Standby time (2G)	450 h
Data network	GPRS

Weight and Dimensions

Depth	45 mm
Width	105 mm
Height	18 mm
Weight	92 g
