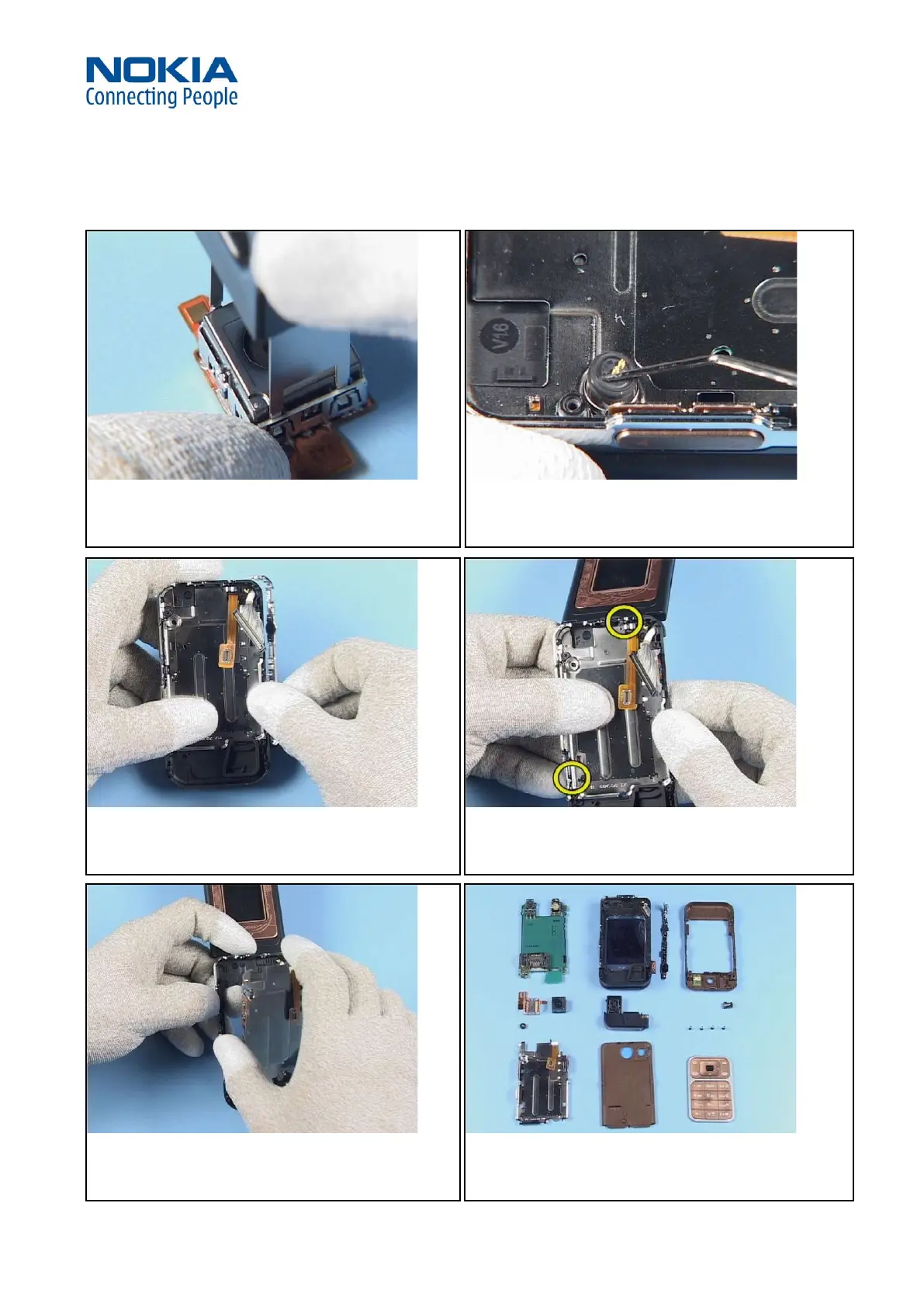

25. Insert the SS-81 into the CAMERA socket until the snaps
open and remove the MAIN CAMERA from the CAMERA FLEX
CONNECTOR.
26. Remove the MICROPHONE.
27. Before removing the LOWER C-COVER ASSEMBLY, rst
remove the shown decoration part. Be careful as this is no a
spare part.
28. Bend a bit the LOWER A-COVER to release the metal clips of
the LOWER C-COVER.
29. and remove the LOWER C-COVER ASSEMBLY.
30. The disassembly procedure is now nished.
