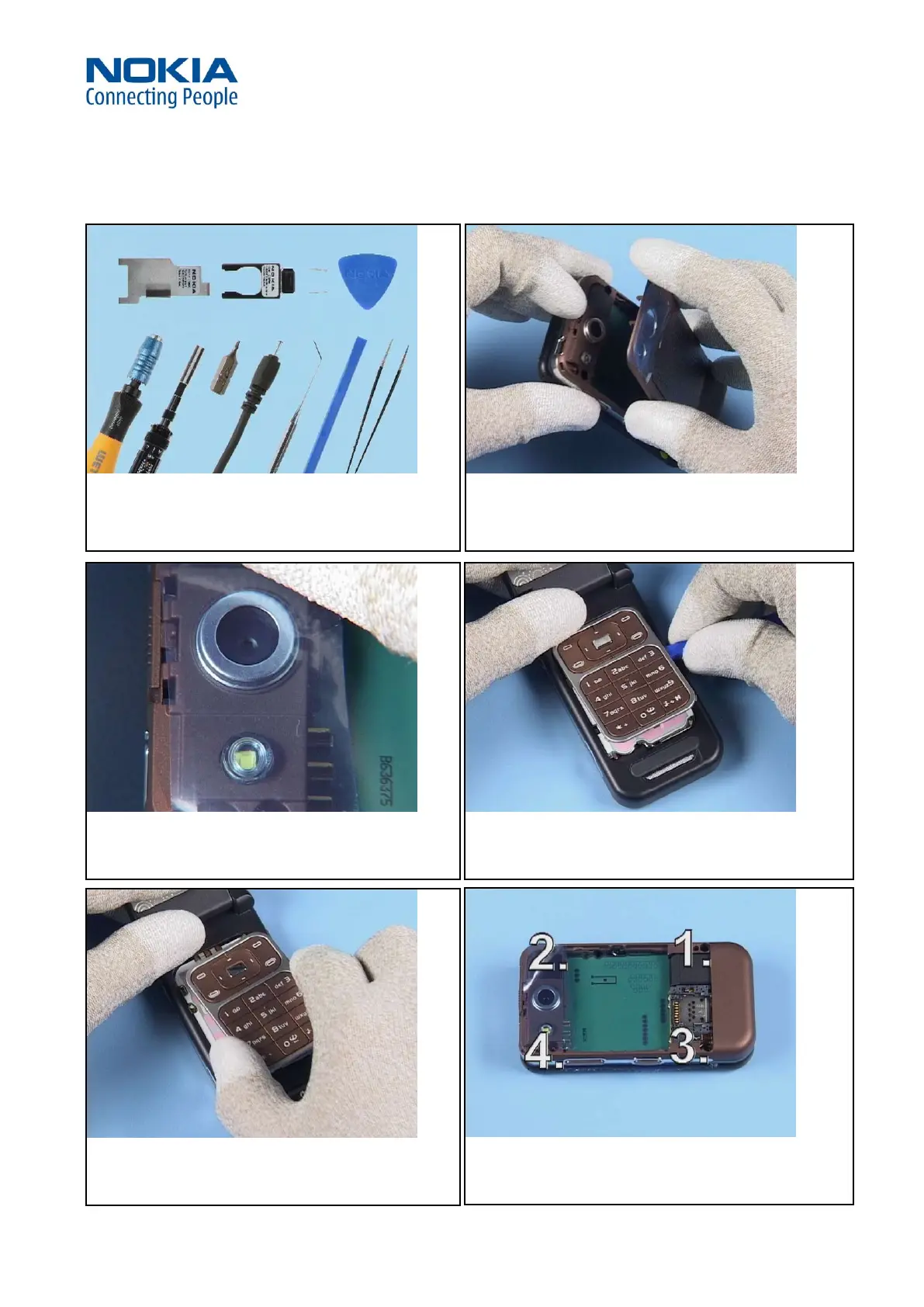

1. Needed tools: a Torx driver, a torque driver with a bit holder,
a Torx plus size 6 bit, a DC-plug, a dental pick, the SS-93,
metal tweezers, the SS-111 connector opening tool, the SS-81
camera removal tool and the SRT-6.
2. Open and remove the BATTERY COVER. If a battery is inserted,
take it out.
3 Cover the sensitive surfaces with a protective lm.
4. Use the SS-93 to unlock the KEYMAT start on the shown side.
5. Remove the KEYMAT from the LOWER A-COVER.
6. Unscrew the screws in the order shown.
LOWER BLOCK DISASSEMBLY INSTRUCTIONS12.
