Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
31.Okt.2006
13
Service Manual 7390 RM-140 Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page
(47)

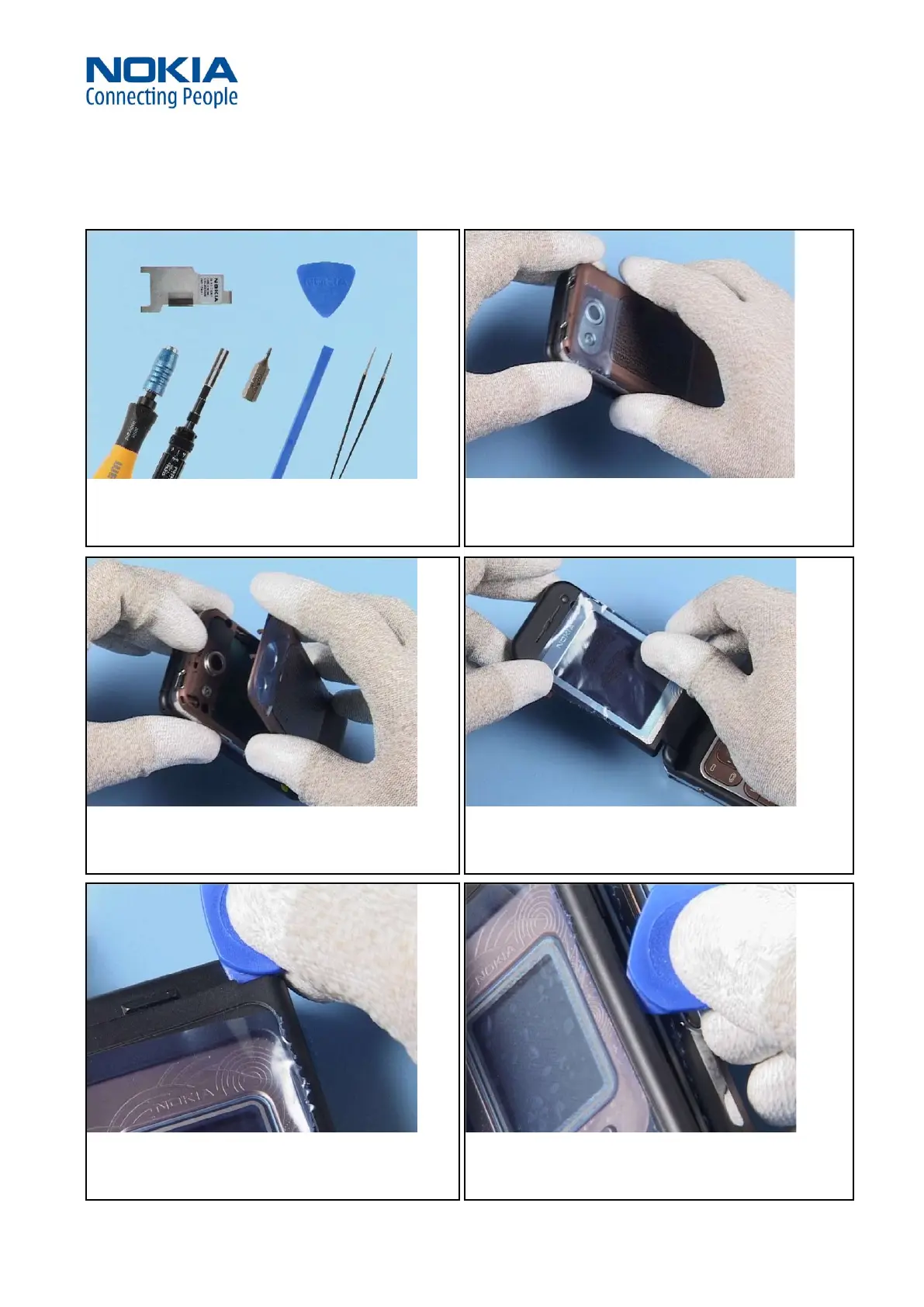

UPPER BLOCK DISASSEMBLY INSTRUCTION 10.
1. Needed tools: a Torx driver, a torque driver with a bit holder,
a Torx plus size 4 bit, the SS-93, metal tweezers, the SS-111
connector opening tool and the SRT-6.
2. Always cover all sensitive surfaces with a protective lm.
3. Open and remove the BATTERY COVER. If a battery is
inserted, take it out.
4. Protect the window with the lm.
5. To separate the covers of the upper block begin with the
SRT-6 on the shown side.
6. Gently, slide the opening tool along the gap to open all snaps
of the cover.
To Next Page
