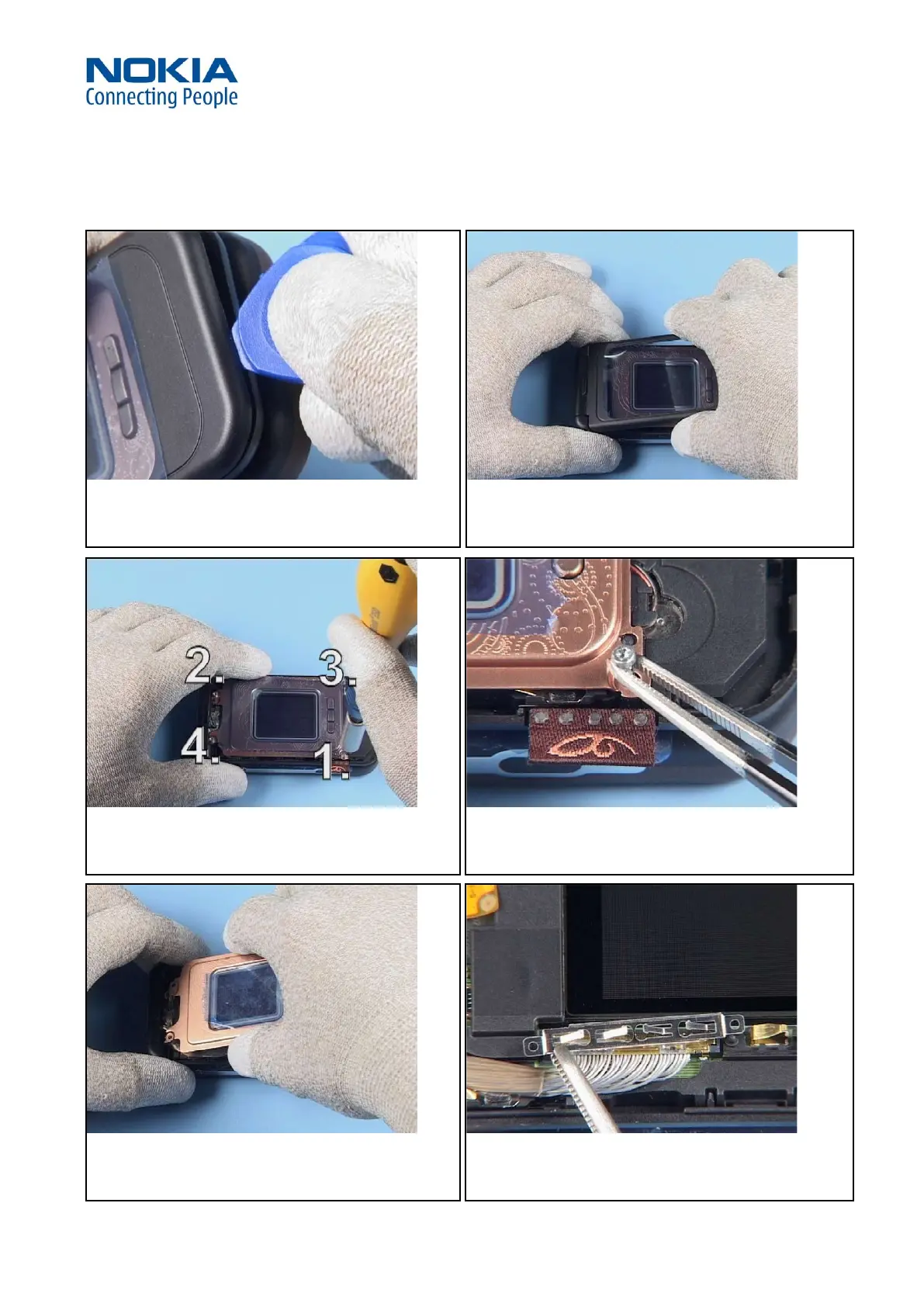

7. Do the same on the shown side.
8. Now, remove the UPPER B-COVER.
9. Locate the (4) M1.4x3.6 Torx Plus 4IP screws and unscrew
them in the order shown.
10. Remove the screws.
11. Remove the SECOND DISPLAY FRAME ASSY.
12. Use tweezers to remove COAX GROUNDING SPRING.
