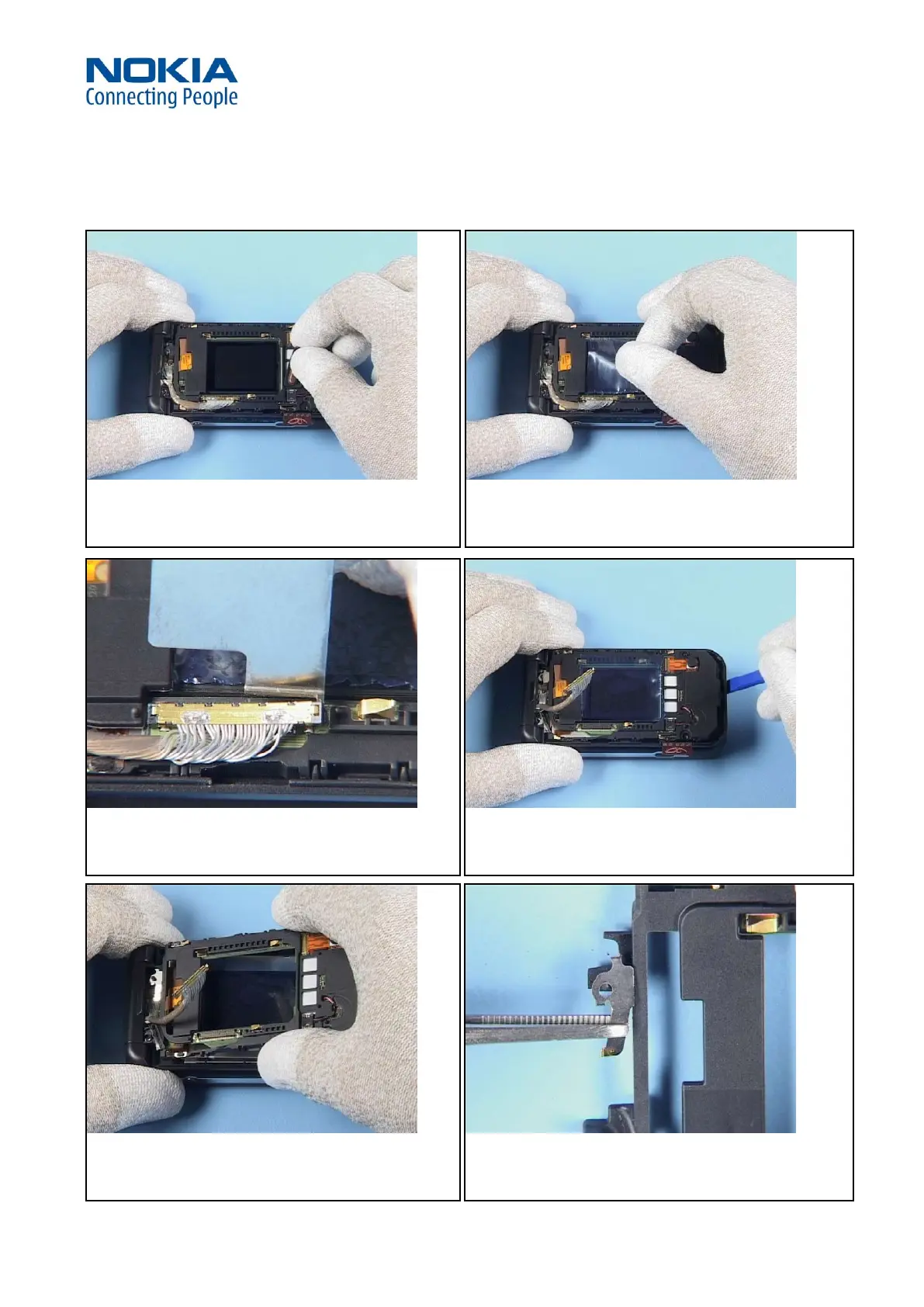

13. Remove the CUI KEYS.
14. Cover the display surface with the protective lm.
15. Be very careful, when opening the COAX CONNECTOR .
Start on the shown side and gently raise the connector with
opening tool.
16. Unlock the UPPER C-COVER ASSY using the SS-93...
17. …and remove it from the A-COVER ASSY.
18. Now, the COAX PWB GROUNDING SPRING can be removed.
