Service Manual 7390 RM-140 Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page (47)

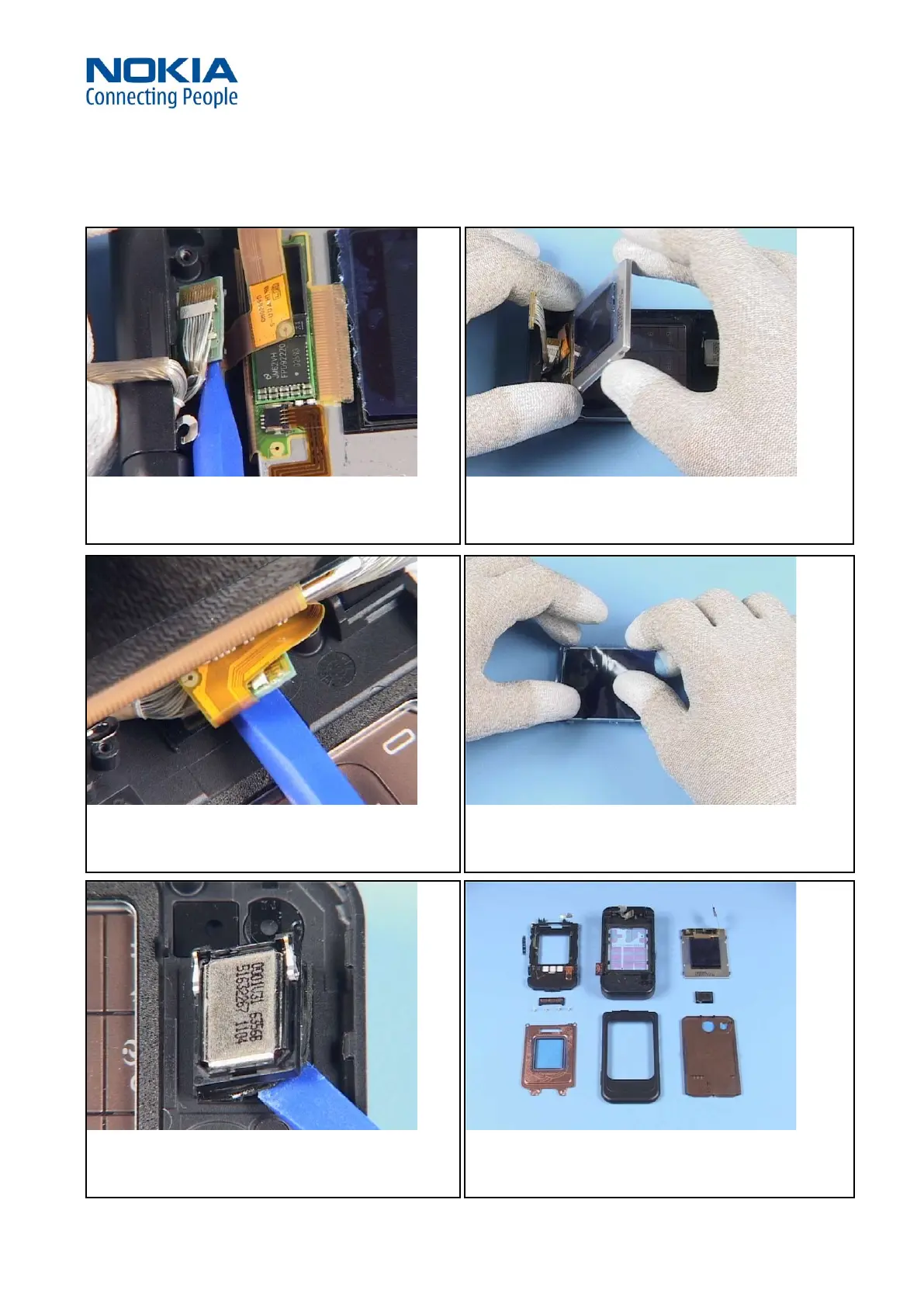

19. Using SS-93, gently open the display connector.
20. Lift the display assembly as shown...
21. …and, using SS-93, carefully pull out the display connector
from the UPPER A-COVER.
22. Cover the display surface with the protective lm.
23. Remove the IHF SPEAKER, rst breaking the adhesive seal
and then lifting it from position and discard it.
24. The disassembly procedure is now completed.
