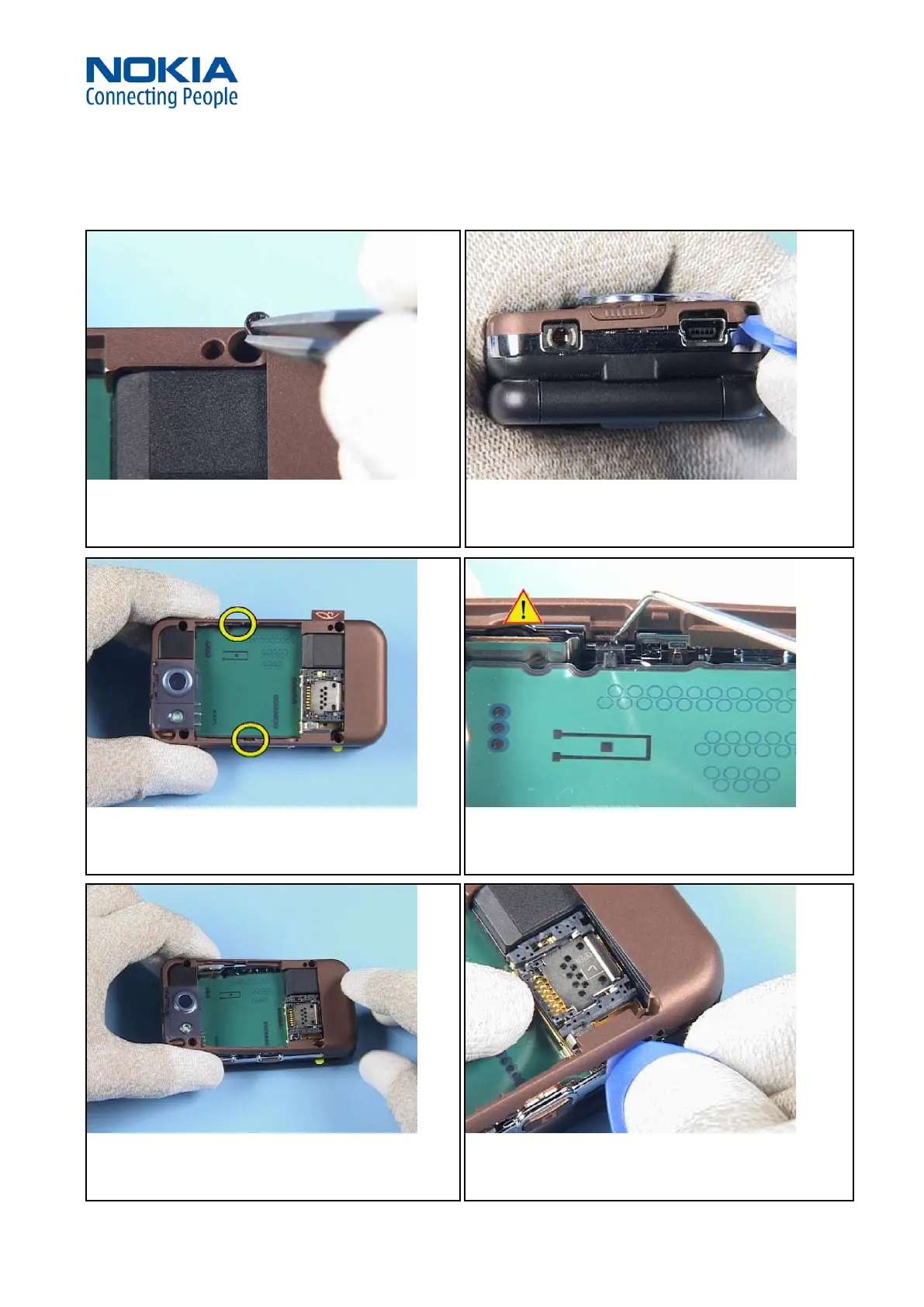

7. Remove the SCREWS.
8. Start to release the LOWER B-COVER by
opening the snaps on the shown side.
9. The LOWER B-COVER is additionally secured with two snaps
to the LOWER A-COVER.
10. Gently, open the snaps on both sides with the dental pick.
11. Lift a bit the LOWER B-COVER, ...
12. ...unlock the remaining snaps and remove the LOWER B-
COVER.
