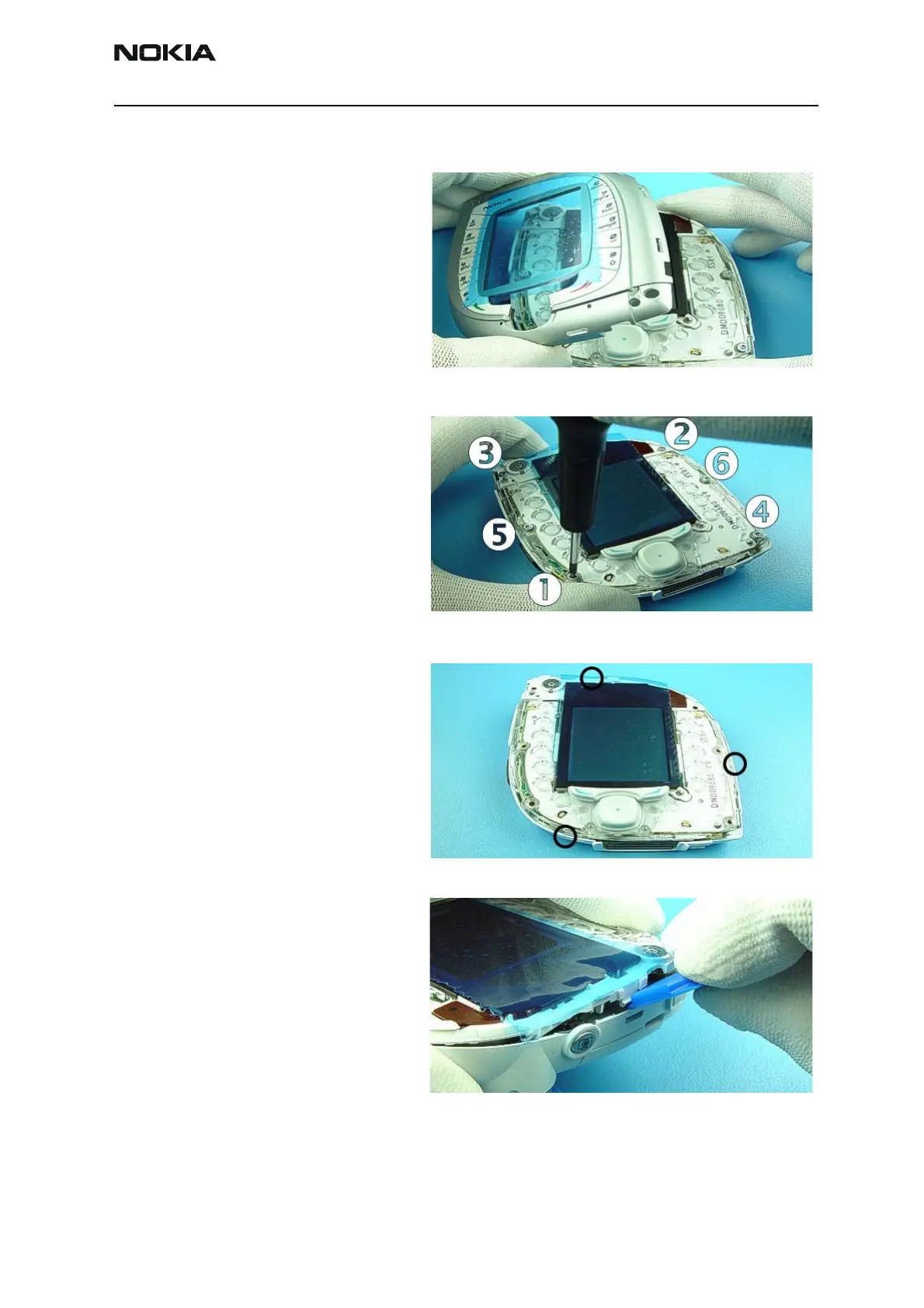

9. Remove A-cover.
10. Unscrew the six Torx Plus screws
using the order shown. For assembly
the reverse order and a torque of 19
Ncm has to be used for an old B-
cover and 22 Ncm for a new B-cover.
No electric or air driver are allowed
to be used for assembly.
11. Unlock the three clips from the UI
Assembly, as indicated.
12. If unlocking doesn’t work check
that the Antenna screw has been
removed.
