Nokia C1-02

Nokia C1-
02
RM-643 / RM-644
Service Manual Level 1&2
16 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

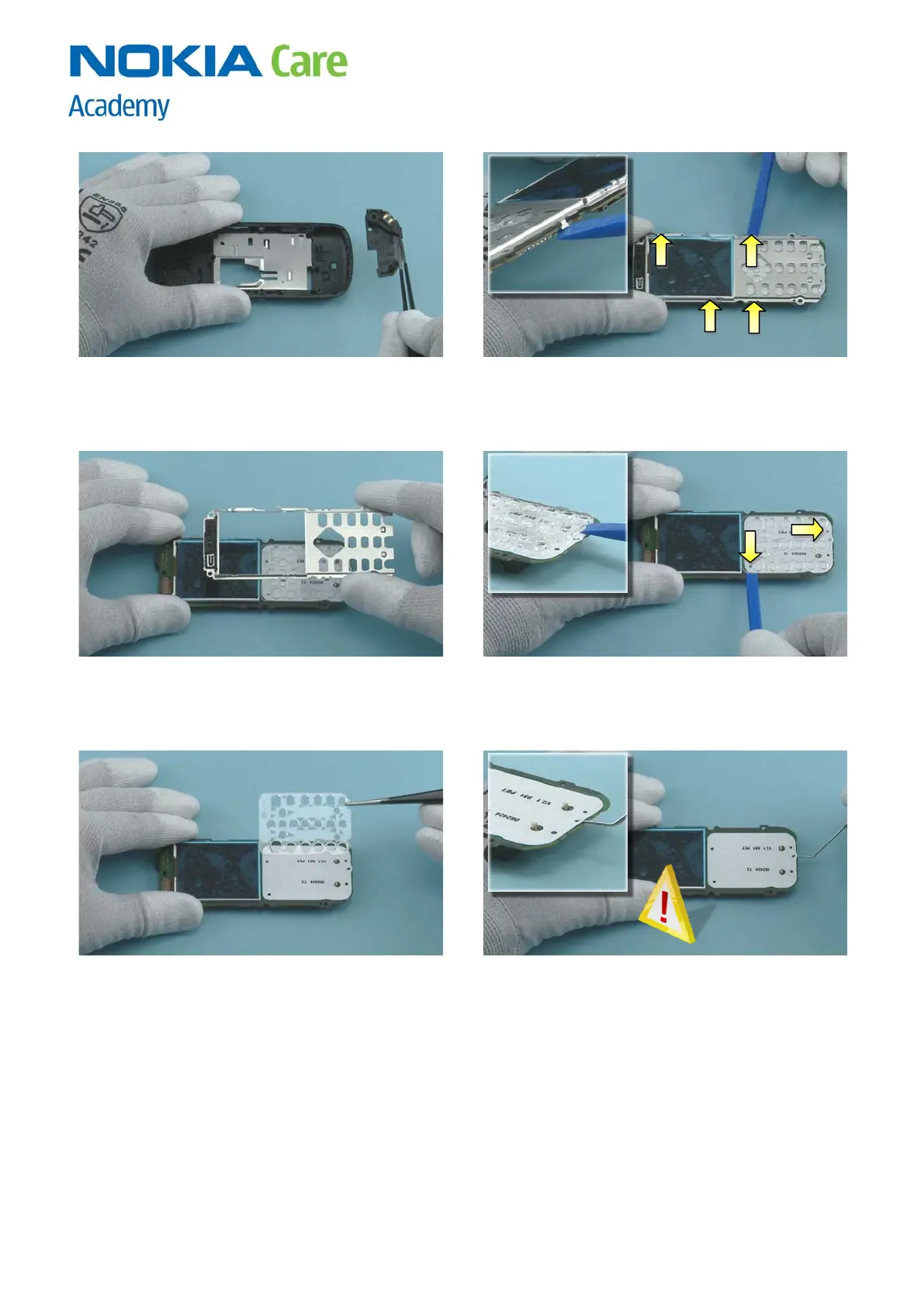

25) Remove the ANTENNA MODULE with the
tweezers.
26) Release the four clips holding the UI SHIELDING
with the SS-93.
27) Remove the UI SHIELDING. 28) Release the two guiding pins holding the LIGHT
GUIDE with the SS-93.
29) Remove the LIGHT GUIDE. 30) Use the dental tool to release the DOMESHEET. Be
careful not to injure yourself with the sharp end of
the dental tool!
