Nokia C5-00 Service Manual

Nokia C5-00
RM-645
Service Manual Level 1&2
11
Co nf id e nt ial • Cop yright © 2011 NOKIA • A ll rights reserved
V e rs ion 2 .0
I SSUE 1
8. SW-UPDATE

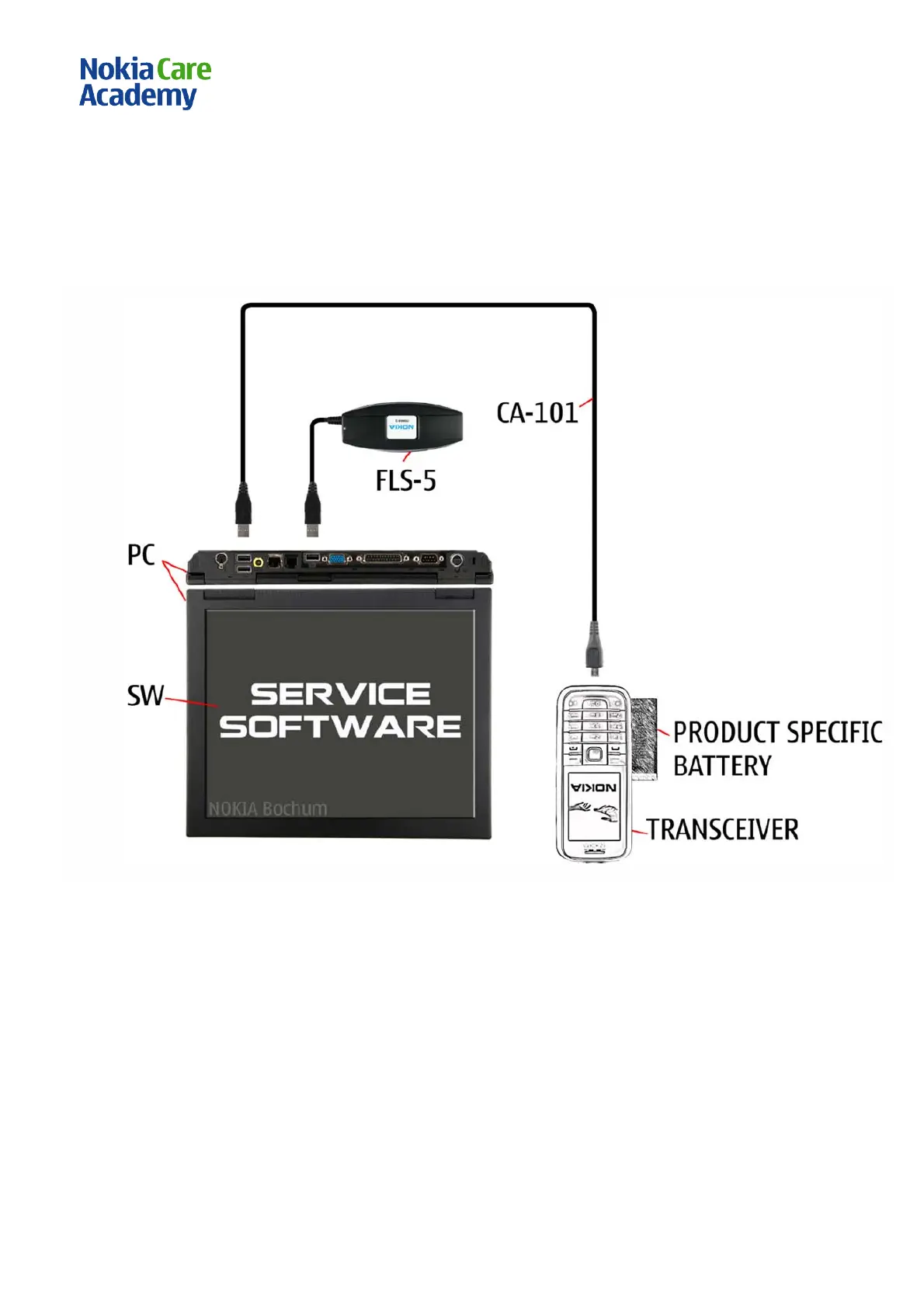

Flash concept - (Point of Sales)
To use the FLS-5 Flash Dongle, follow the user guide inside the sales package.
Please check always for the latest version of flash software, wich is available on Nokia Online.
For further information please refer to the corresponding “Service Concept e-learning” on NOL!

Nokia C5-00 Specifications

General

Display Type	TFT, 16M colors
Internal Storage	50 MB
RAM	128 MB
Battery	Removable Li-Ion 1050 mAh battery (BL-5CT)
Network Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 32
EDGE	Class 32
Announced	2010, March
Status	Discontinued
SIM	Mini-SIM
Memory Card slot	microSD, up to 16 GB
Phonebook	Yes, Photocall
Call records	Detailed, max 30 days
Secondary Camera	No
Alert types	Vibration; MP3, WAV ringtones
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	No
Bluetooth	2.0, A2DP
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Messaging	SMS, MMS, Email, Push Email, IM
Browser	WAP 2.0/xHTML, HTML
Games	Yes + downloadable
Java	Yes, MIDP 2.1
Sensors	Accelerometer, proximity
Talk time	Up to 12 h (2G) / Up to 5 h (3G)
Music play	Up to 34 h
Display Size	2.2 inches
Resolution	240 x 320 pixels
Operating System	Symbian OS 9.3, Series 60 rel. 3.2
Chipset	ARM 11
3G bands	HSDPA 900 / 2100
Dimensions	112 x 46 x 12.3 mm
Video	VGA@15fps
GPS	Yes, with A-GPS; Ovi Maps 3.0
Stand-by	Up to 630 h (2G) / Up to 670 h (3G)
Colors	White
Main Camera	3.15 MP, LED flash
Speed	HSPA 10.2/2 Mbps
