RM-645
Service Manual Level 1&2
Co nf id e nt ial • Cop yright © 2011 NOKIA • A ll rights reserved
10. ASSEMBLY HINTS

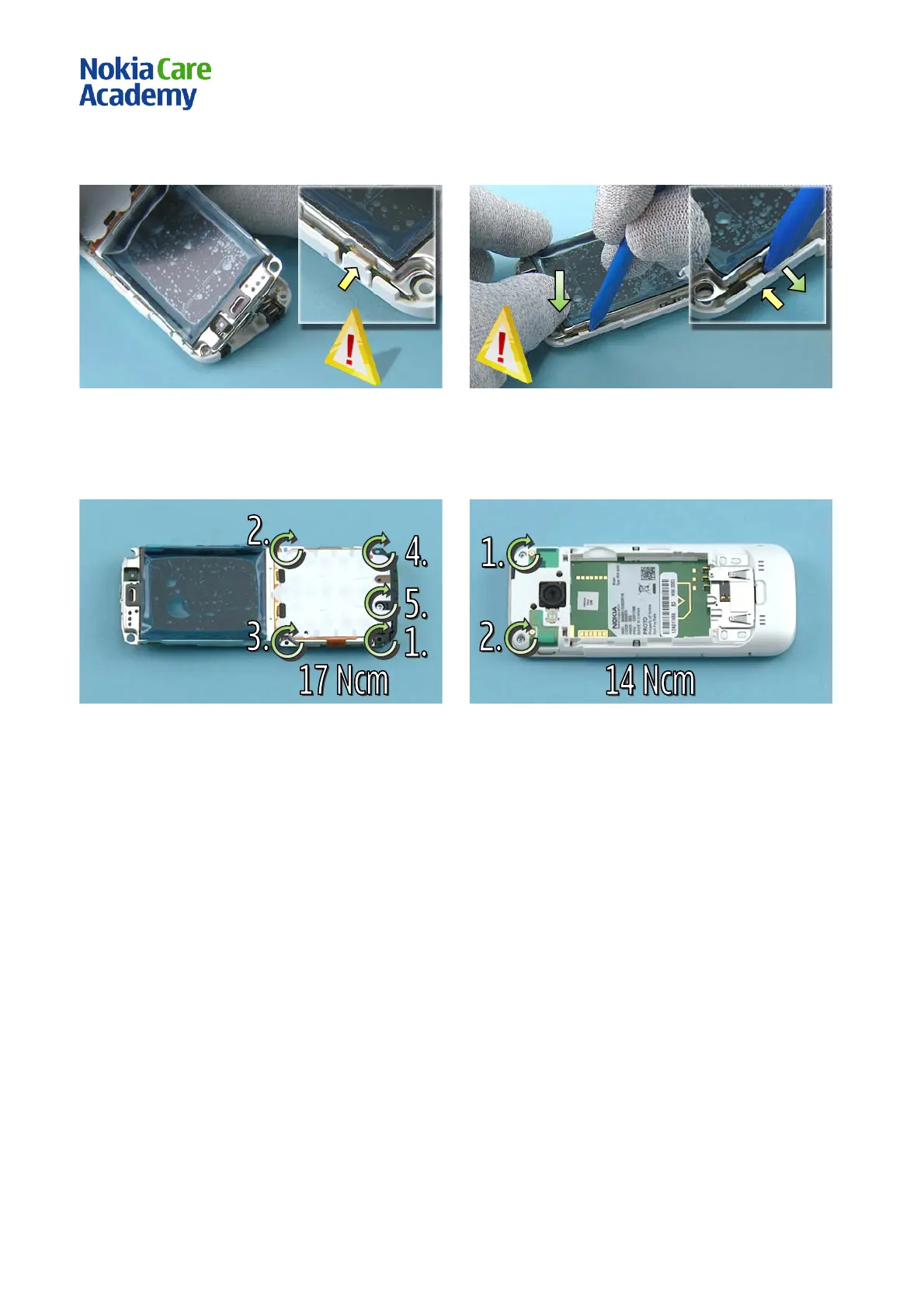

1) Place the top right corner of the UI SHIELD
ASSEMBLY like shown in to the B-COVER. Carefully
place the UI SHIELD ASSEMBLY under the shown clip.
2) Lower down the left side of the UI SHIELD
ASSEMBLY. Very carefully press down the UI SHIELD
ASSEMBLY near the clip. Use the sharp end of the SS-
93 to pull away the B-COVER and place the shown
clip on top of the UI SHIELD ASSEMBLY.
3) Tighten the screw to the torque of 17 Ncm in the
order shown.
4) Tighten the two screws to the torque of 14 Ncm
in the order shown.
