Nokia C5-00
RM-645
Service Manual Level 1&2
9
Co nf id e nt ial • Cop yright © 2011 NOKIA • A ll rights reserved
V e rs ion 2 .0
I SSUE 1

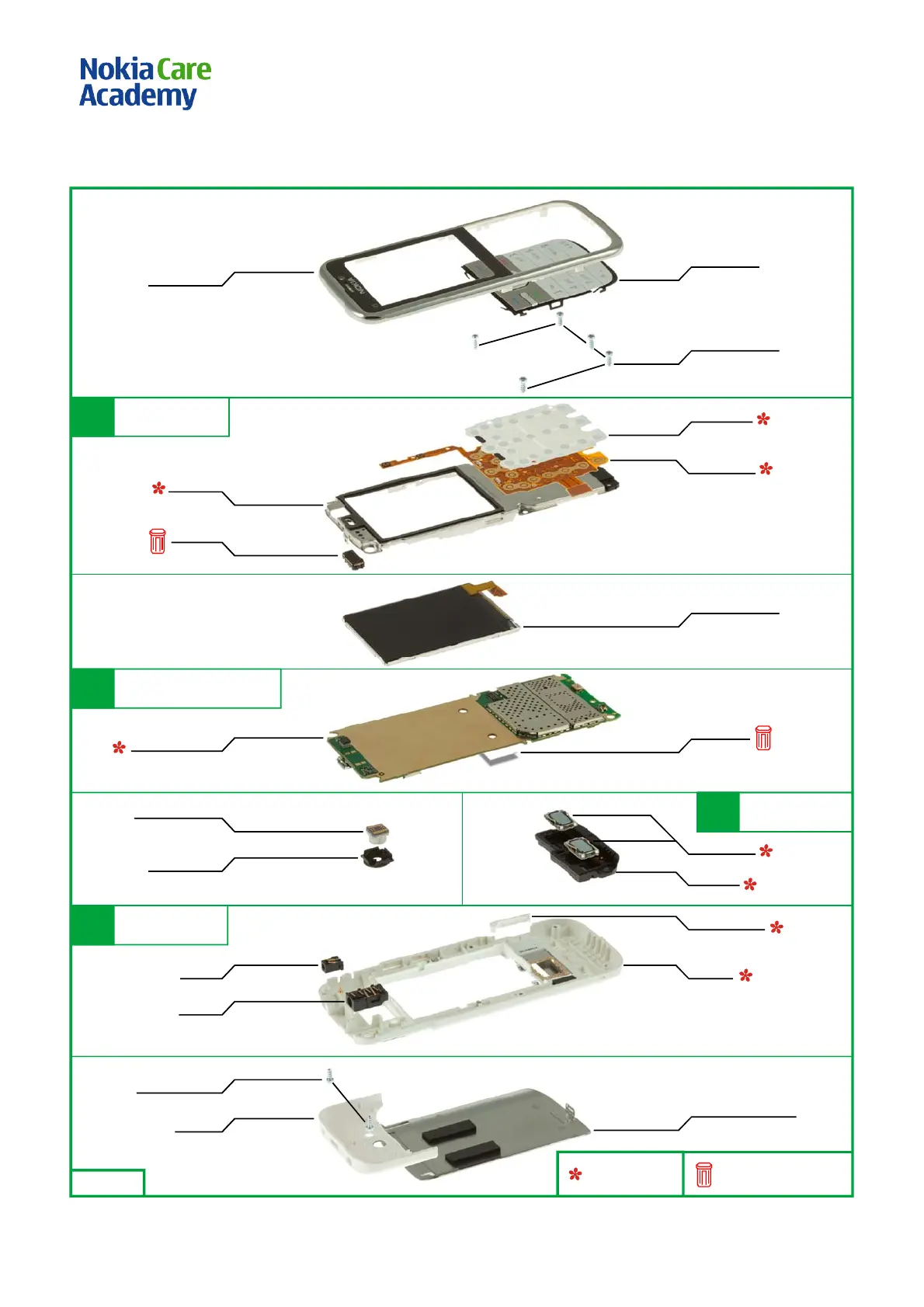

6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1
UI SHIELD ASSY
(I0004 - I0007)
A2
LIGHT SWAP PACKAGE
(I0009 - I0010)
A3
ANTENNA ASSY
(I0013 - I0014)
A4
B-COVER ASSY
(I0015 - I0018)
A-COVER ASSY
I0001
LIGHT SWAP PWB
I0009
CAMERA MODULE
I0011
CAMERA BOOT
I0012
DC JACK
I0016
SCREW 1.6 X 4.5
I0019
D-COVER
I0020
AV JACK
I0017
UI FLEX ASSY
I0005
IHF SPEAKER
I0013
ANTENNA
I0014
B-COVER
I0018
SD CARD DOOR
I0015
KEYMAT ASSY
I0002
SCREWS 1.6 X 4.5
I0003
DOMESHEET
I0004
DISPLAY MODULE
I0008
TYPE LABEL
I00010
BATTERY COVER ASSY
I0021
UI SH
IELD
I0006
EARPIECE
I0007
