Nokia C5-00 Service Manual

Nokia C5-00
RM-645
Service Manual Level 1&2
12
Co nf id e nt ial • Cop yright © 2011 NOKIA • A ll rights reserved
V e rs ion 2 .0
I SSUE 1

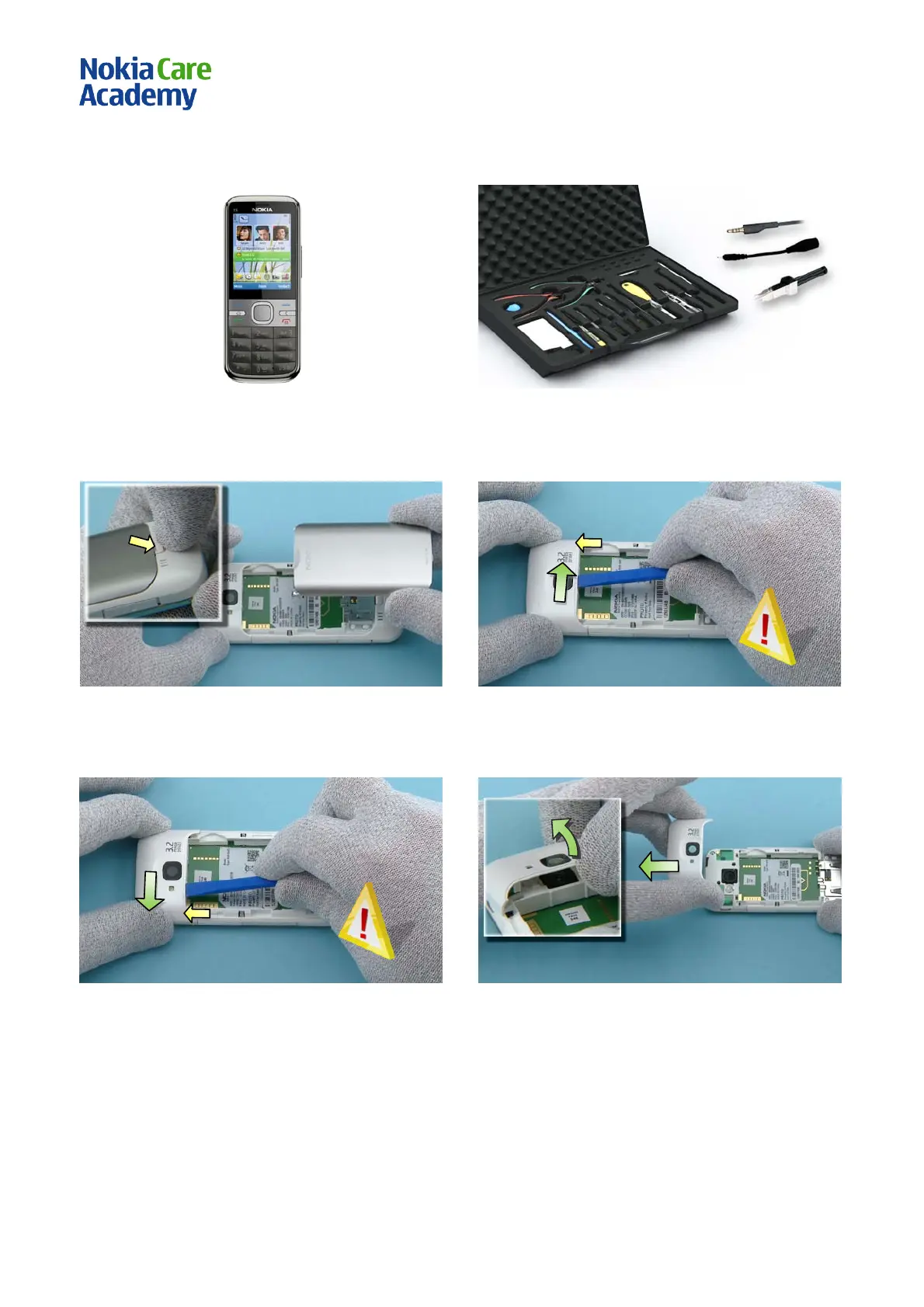

9. DISASSEMBLY INSTRUCTIONS
1) Nokia C5-00 disassembly.
2) You must use the Nokia Standard Toolkit version
2. You will also need SS-88 camera removal tool, an
AV plug and a DC plug.
3) Use the BATTERY COVER RELEASE BUTTON to open
the BATTERY COVER.
4) Slide the SS-93 to direction shown to release clip
on the other side. Be careful not to push the SS-93
more than 3mm in and damage the CAMERA
MODULE.
5) Place the SS-93 between the B-COVER and D-
COVER and slide to the direction shown to release
the second clip. Be careful not to push the SS-93
more than 3mm in.
6) Lift up the D-COVER as shown in the small picture.
Then pull it away from the B-COVER and remove it.
