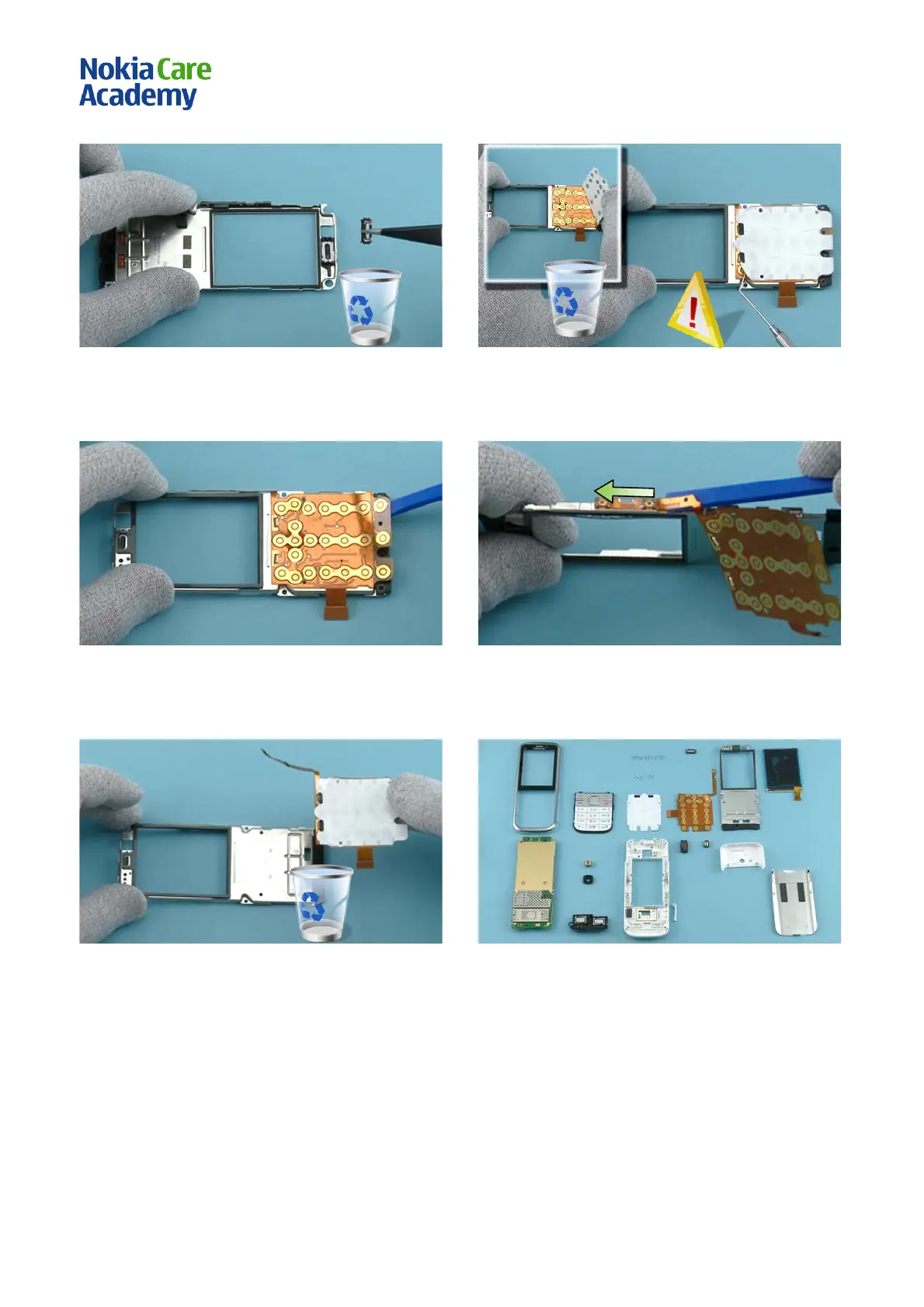

31) Remove the EARPIECE using tweezers. Do not
use it again.
32) Use the dental tool to lift up one corner of the
DOMESHEET ASSY. Pee l off and remove the
DOMESHEET ASSY. Do not use it again.
33) Use the SS-93 to release the UI FLEX ASSY from
the UI SHIELD.
34) Continue to release the UI FLEX ASSY in the
direction shown.
35) Remove the UI FLEX ASSY. Do not use it again. 36) Nokia C5-00 disassembly is now complete.
-END OF DISASSEMBLY-
