Nokia C6-01 Service Manual

Nokia C6-01
RM-718 / RM-601
Service Manual Level 1&2
10 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

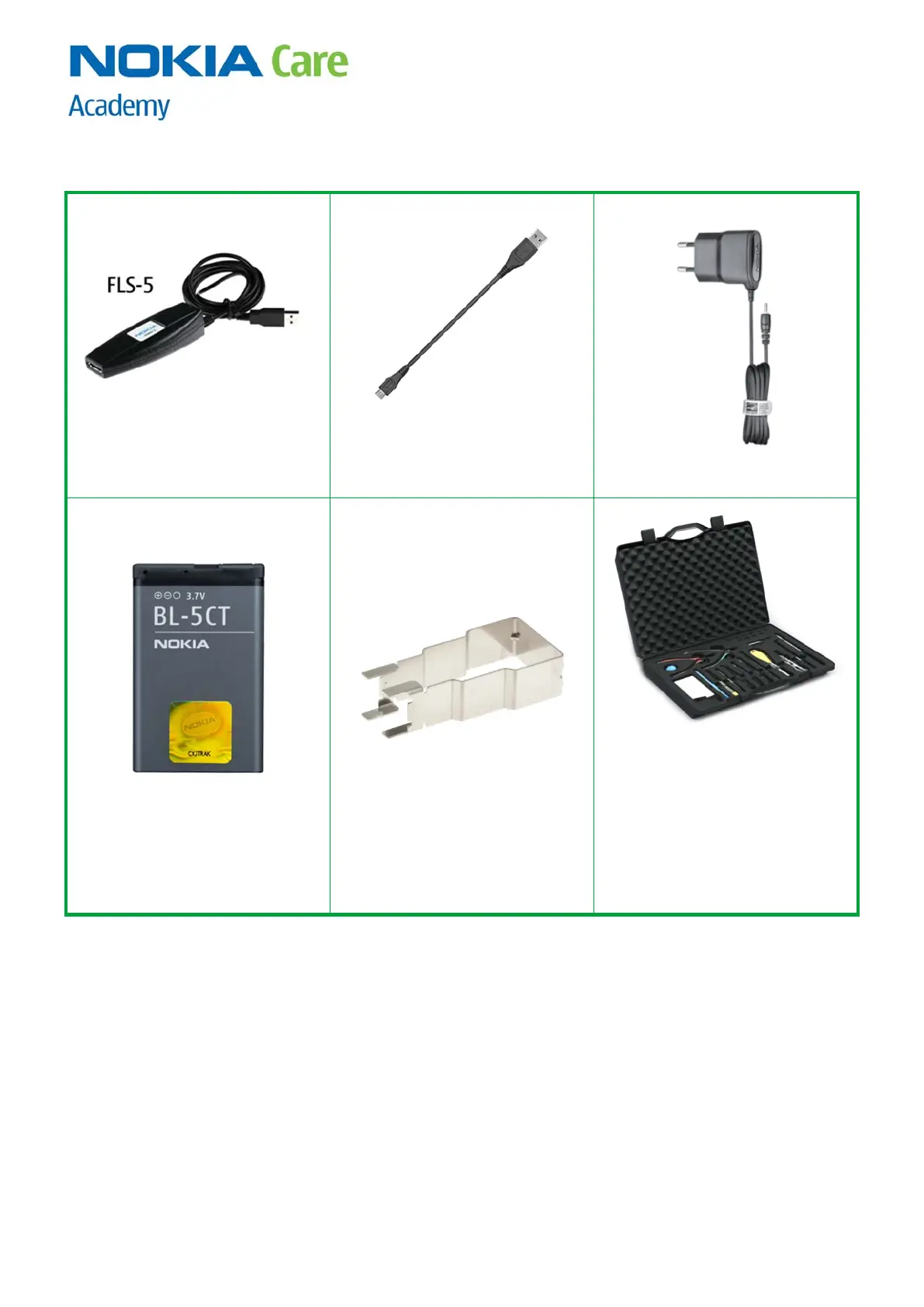

7. SERVICE DEVICES
FLS-5 Flash Device
CA-101
AC-15 Travel Charger
BL-5CT Battery
SS-186 Camera Removal tool
Nokia Standard Toolkit (v2)
For more information, refer to the
Service Bulletin (SB-011) on Nokia
Online. Supplier or manufacturer
contacts for tool re-order can be
found in “Recommended service
equipment” document on Nokia
Online.

Nokia C6-01 Specifications

General

Display Size	3.2 inches
Resolution	360 x 640 pixels
Protection	Corning Gorilla Glass
Processor	680 MHz ARM 11
GPU	Broadcom BCM2727
RAM	256 MB
Internal Storage	340 MB
Card Slot	microSD, up to 32 GB
Video	720p@25fps
Secondary Camera	VGA
Battery Capacity	1050 mAh
Music Play Time	Up to 50 h
Dimensions	103.8 x 52.5 x 13.9 mm
Weight	131 g
Network Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1700 / 1900 / 2100
Speed	HSPA 10.2/2 Mbps
GPRS	Class 33
EDGE	Class 33
SIM	Mini-SIM
WLAN	Wi-Fi 802.11 b/g/n
NFC	Yes
Radio	Stereo FM radio, RDS
USB	microUSB 2.0, USB On-The-Go
Sensors	Accelerometer, proximity, compass
Browser	WAP 2.0/xHTML, HTML, Adobe Flash Lite
Java	Yes, MIDP 2.1
Announced	2010, September
Status	Discontinued
Display Type	AMOLED
Operating System	Symbian^3
Rear Camera	8 MP
Battery Type	Li-Ion
Bluetooth	3.0, A2DP
GPS	Yes, with A-GPS
Colors	Black, Silver
