Nokia C6-01 Service Manual

Nokia C6-01
RM-718 / RM-601
Service Manual Level 1&2
12 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

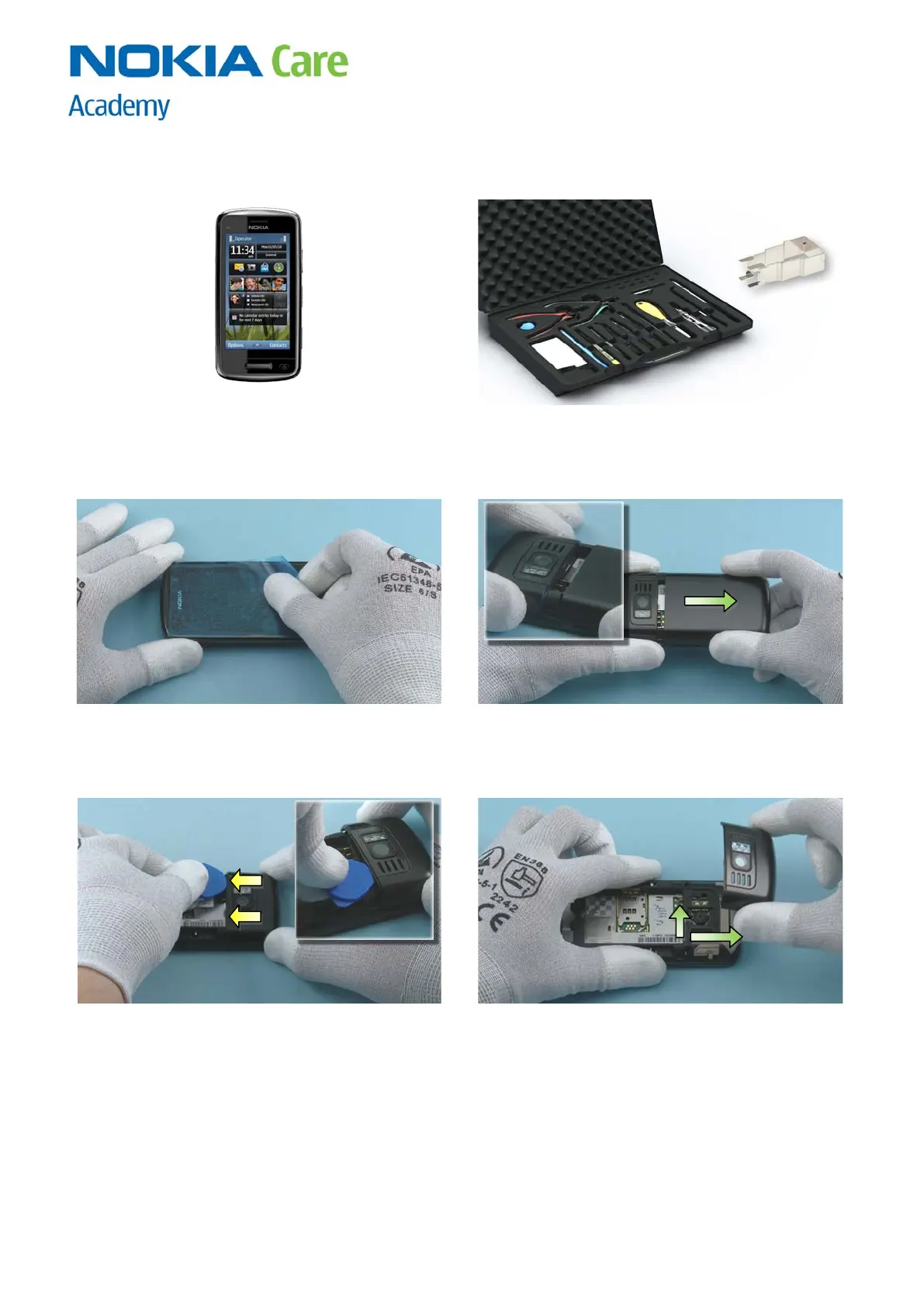

9. DISASSEMBLY INSTRUCTIONS
1) Nokia C6-01 disassembly. 2) For disassembling you need the Nokia Standard
Toolkit version 2 and the camera removal tool SS-
186.
3) Protect the A-COVER with protective film. 4) Pull the BATTERY COVER to direction shown to
remove it.
5) Use the SRT-6 to release the ANTENNA DECORATIVE
from the shown places.
6) Lift up the bottom end of the ANTENNA
DECORATIVE and then pull it to the direction shown.
The ANTENNA DECORATIVE can now be removed.
