Nokia C6-01 Service Manual

Nokia C6-01
RM-718 / RM-601
Service Manual Level 1&2
13 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

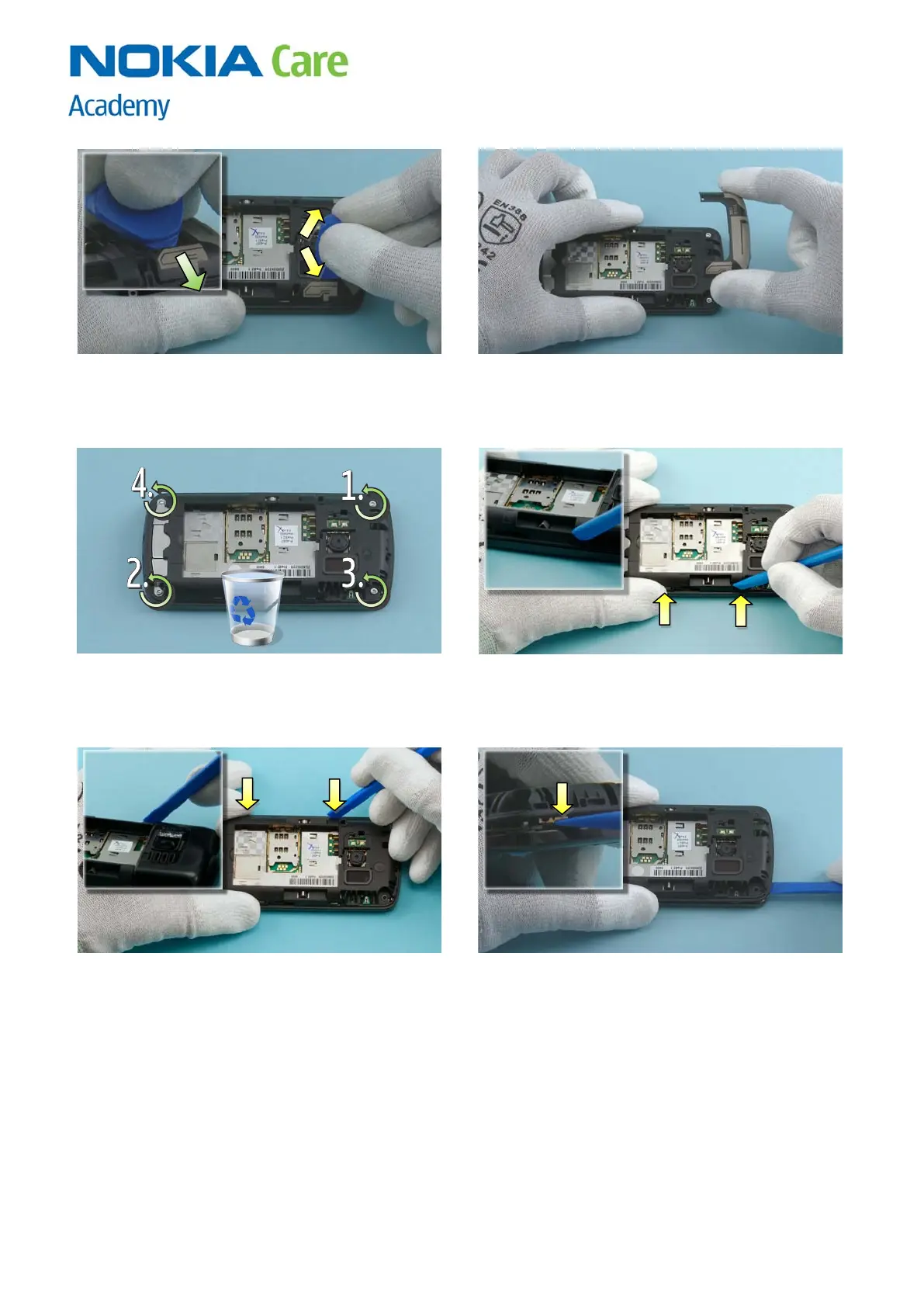

7) Use the SRT-6 to release the ANTENNA from the
shown places. While lifting up the ANTENNA with the
SRT-6, push the ANTENNA carefully outwards to
release the clips holding it.
8) Remove the ANTENNA.
9) Unscrew the four TORX+ size 6 screws in the order
shown. Do not use them again!
10) Before removing the B-COVER, remember to
remove the microSD card. Use the SS-93 to open the
two shown clips holding the B-COVER.
11) Open also the two clips on the other side with
the SS-93.
12) Use the SS-93 to release the clip holding the B-
COVER and the ENGINE BOARD together.

Nokia C6-01 Specifications

General

Display Size	3.2 inches
Resolution	360 x 640 pixels
Protection	Corning Gorilla Glass
Processor	680 MHz ARM 11
GPU	Broadcom BCM2727
RAM	256 MB
Internal Storage	340 MB
Card Slot	microSD, up to 32 GB
Video	720p@25fps
Secondary Camera	VGA
Battery Capacity	1050 mAh
Music Play Time	Up to 50 h
Dimensions	103.8 x 52.5 x 13.9 mm
Weight	131 g
Network Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1700 / 1900 / 2100
Speed	HSPA 10.2/2 Mbps
GPRS	Class 33
EDGE	Class 33
SIM	Mini-SIM
WLAN	Wi-Fi 802.11 b/g/n
NFC	Yes
Radio	Stereo FM radio, RDS
USB	microUSB 2.0, USB On-The-Go
Sensors	Accelerometer, proximity, compass
Browser	WAP 2.0/xHTML, HTML, Adobe Flash Lite
Java	Yes, MIDP 2.1
Announced	2010, September
Status	Discontinued
Display Type	AMOLED
Operating System	Symbian^3
Rear Camera	8 MP
Battery Type	Li-Ion
Bluetooth	3.0, A2DP
GPS	Yes, with A-GPS
Colors	Black, Silver
