Nokia C6-01
RM-718 / RM-601
14 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

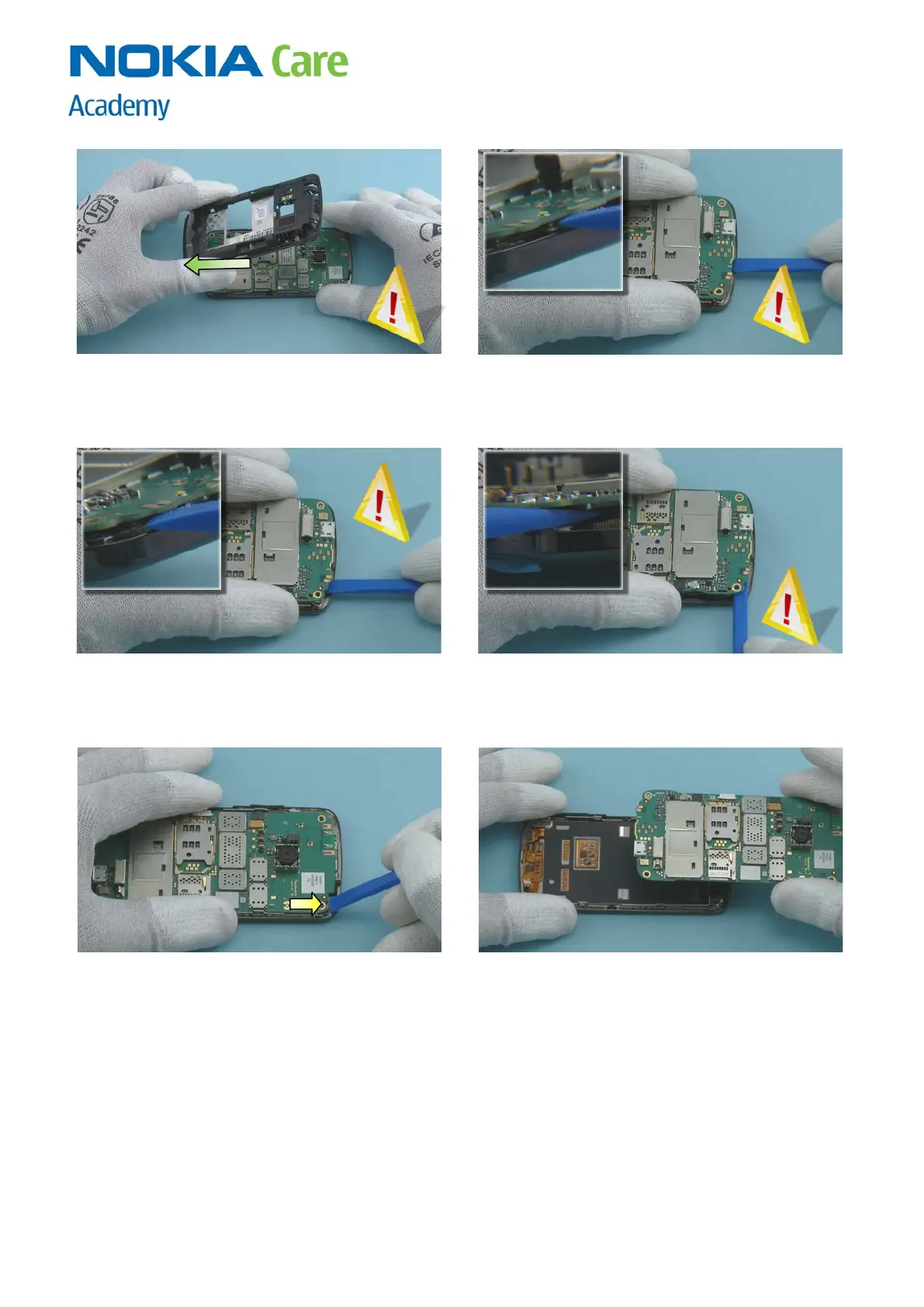

13) Remove the B-COVER to the direction shown, so
that the USB connector is not damaged.
14) Lift up carefully the ENGINE BOARD and open the
A-COVER connector with the SS-93. Be careful not to
damage the connector!
15) Then open the DISPLAY connector with the SS-
93. Be careful not to damage the connector!
16) Finally open the KEYMAT connector. Be careful
not to damage the connector!
17) Open the clip with the SS-93 holding the ENGINE
BOARD and the DISPLAY together.
18) The ENGINE BOARD can now be separated.
