Nokia C6-01 Service Manual

Nokia C6-01
RM-718 / RM-601
Service Manual Level 1&2
15 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

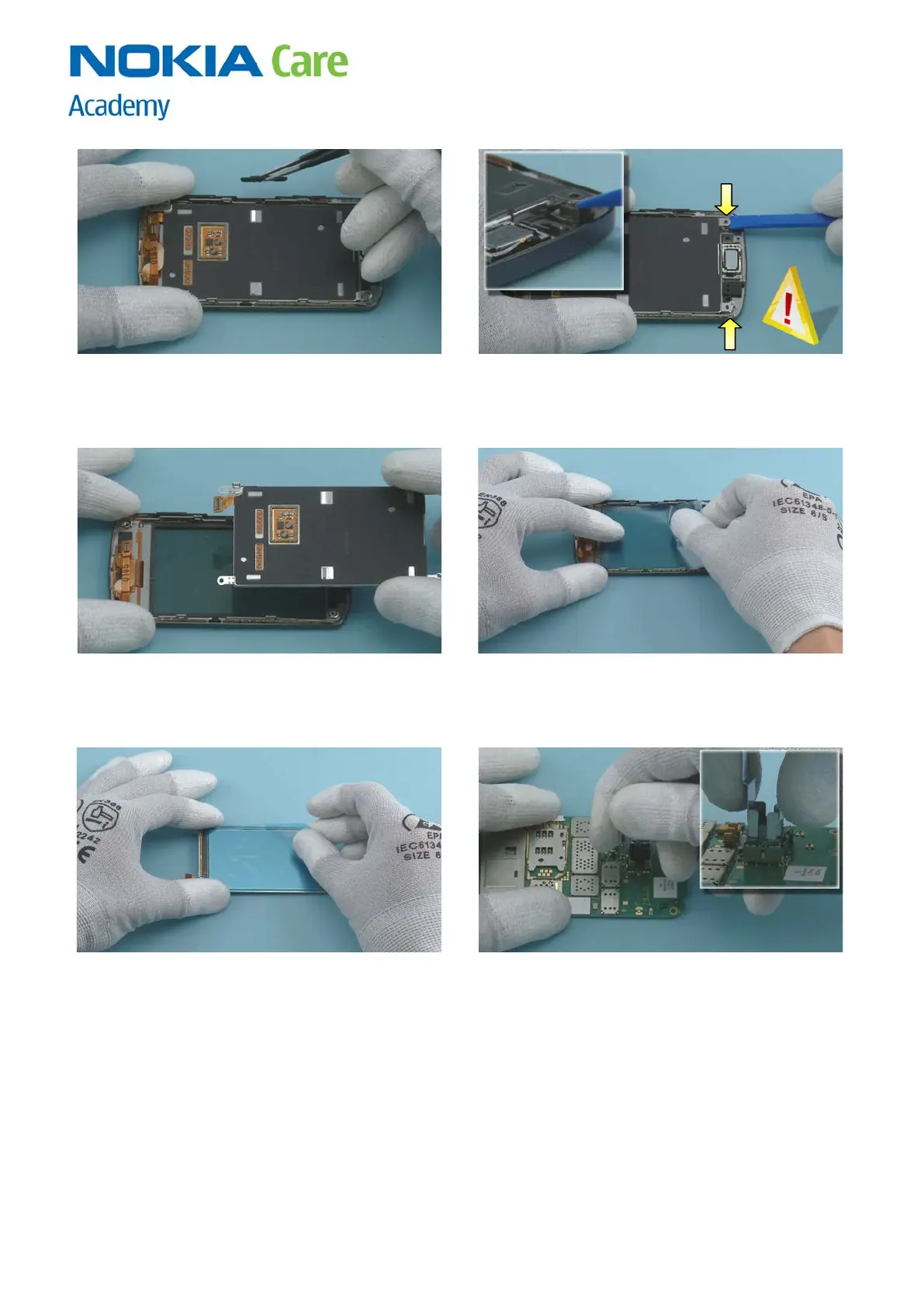

19) Remove the LOCK KEY with the tweezers.
20) Lift up the DISPLAY with the SS-93 from the
shown places. Be careful not to damage the DISPLAY.
21) The DISPLAY can now be removed. Please note
that if the DISPLAY is removed, do not leave the
DISPLAY exposed to UV light for several days.
22) Protect the other side of the A-COVER with
protective film.
23) Protect the DISPLAY with protective film. 24) To remove the CAMERA MODULE, press down the
camera removal tool SS-186 until the camera
retaining clips are released. Lift up the SS-186 and
remove the CAMERA MODULE.

Nokia C6-01 Specifications

General

Display Size	3.2 inches
Resolution	360 x 640 pixels
Protection	Corning Gorilla Glass
Processor	680 MHz ARM 11
GPU	Broadcom BCM2727
RAM	256 MB
Internal Storage	340 MB
Card Slot	microSD, up to 32 GB
Video	720p@25fps
Secondary Camera	VGA
Battery Capacity	1050 mAh
Music Play Time	Up to 50 h
Dimensions	103.8 x 52.5 x 13.9 mm
Weight	131 g
Network Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1700 / 1900 / 2100
Speed	HSPA 10.2/2 Mbps
GPRS	Class 33
EDGE	Class 33
SIM	Mini-SIM
WLAN	Wi-Fi 802.11 b/g/n
NFC	Yes
Radio	Stereo FM radio, RDS
USB	microUSB 2.0, USB On-The-Go
Sensors	Accelerometer, proximity, compass
Browser	WAP 2.0/xHTML, HTML, Adobe Flash Lite
Java	Yes, MIDP 2.1
Announced	2010, September
Status	Discontinued
Display Type	AMOLED
Operating System	Symbian^3
Rear Camera	8 MP
Battery Type	Li-Ion
Bluetooth	3.0, A2DP
GPS	Yes, with A-GPS
Colors	Black, Silver
