Nokia C6-01 Service Manual

Nokia C6-01
RM-718 / RM-601
Service Manual Level 1&2
20 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

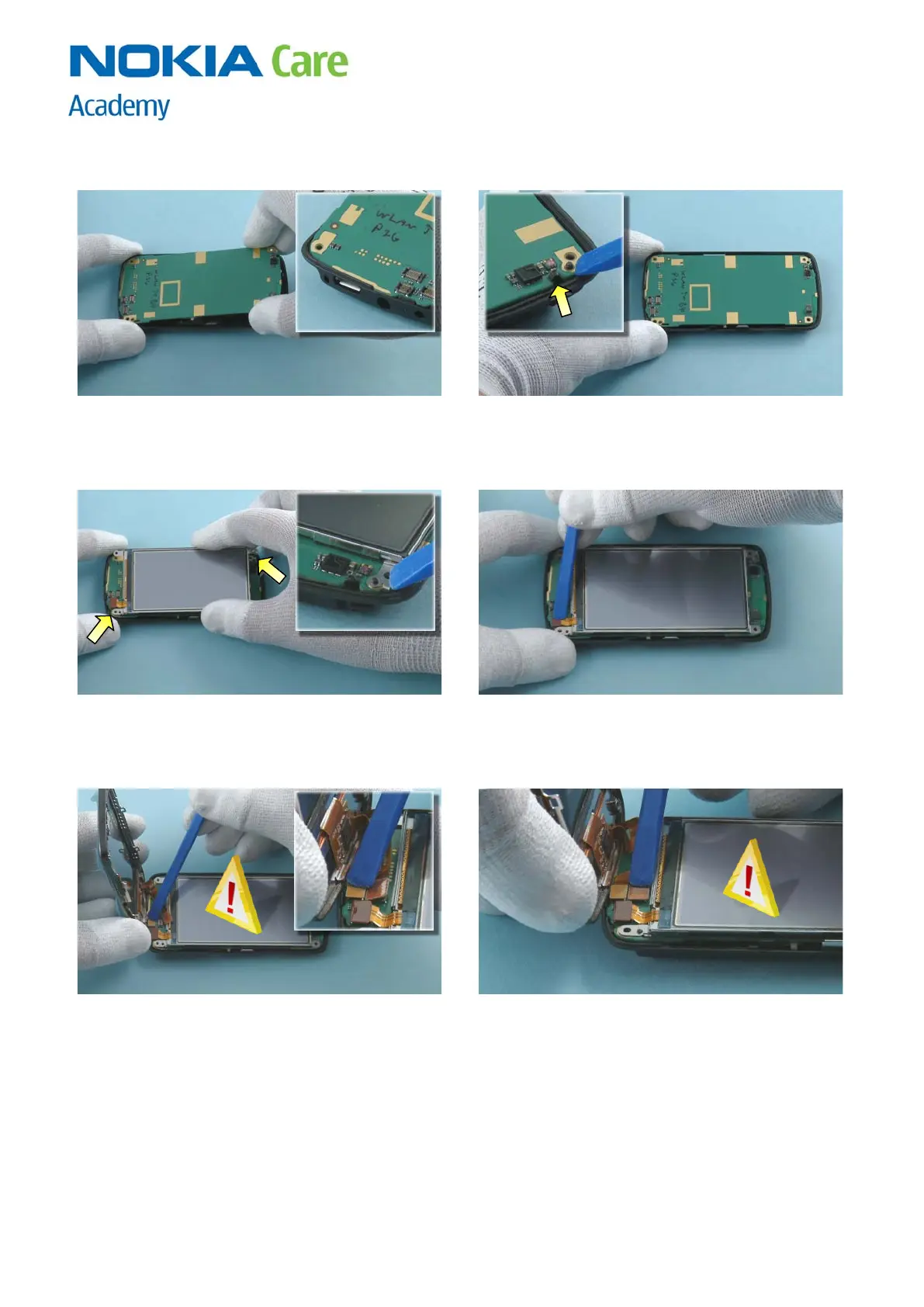

10. ASSEMBLY HINTS
1) Place the bottom part of the ENGINE BOARD to the
B-COVER. Make sure that the USB connector is
correctly placed.
2) Lower down the top part of the ENGINE BOARD.
Make sure that the shown clip is attached and
unharmed.
3) Place the DISPLAY on top of the ENGINE BOARD.
Make sure that the shown guiding pins are placed
correctly.
4) Connect the DISPLAY connector with the SS-93.
5) Hold the A-COVER as shown and carefully connect
the A-COVER connector with the SS-93. Be careful not
to damage the flex, the connector or any nearby
components!
6) Connect also the KEYMAT connector with the SS-
93. Be careful not to damage the flex, the connector
or any nearby components!
