Nokia C6-01
RM-718 / RM-601
21 Confidential | Copyright © 2010 Nokia | All rights reserved Version 1.0

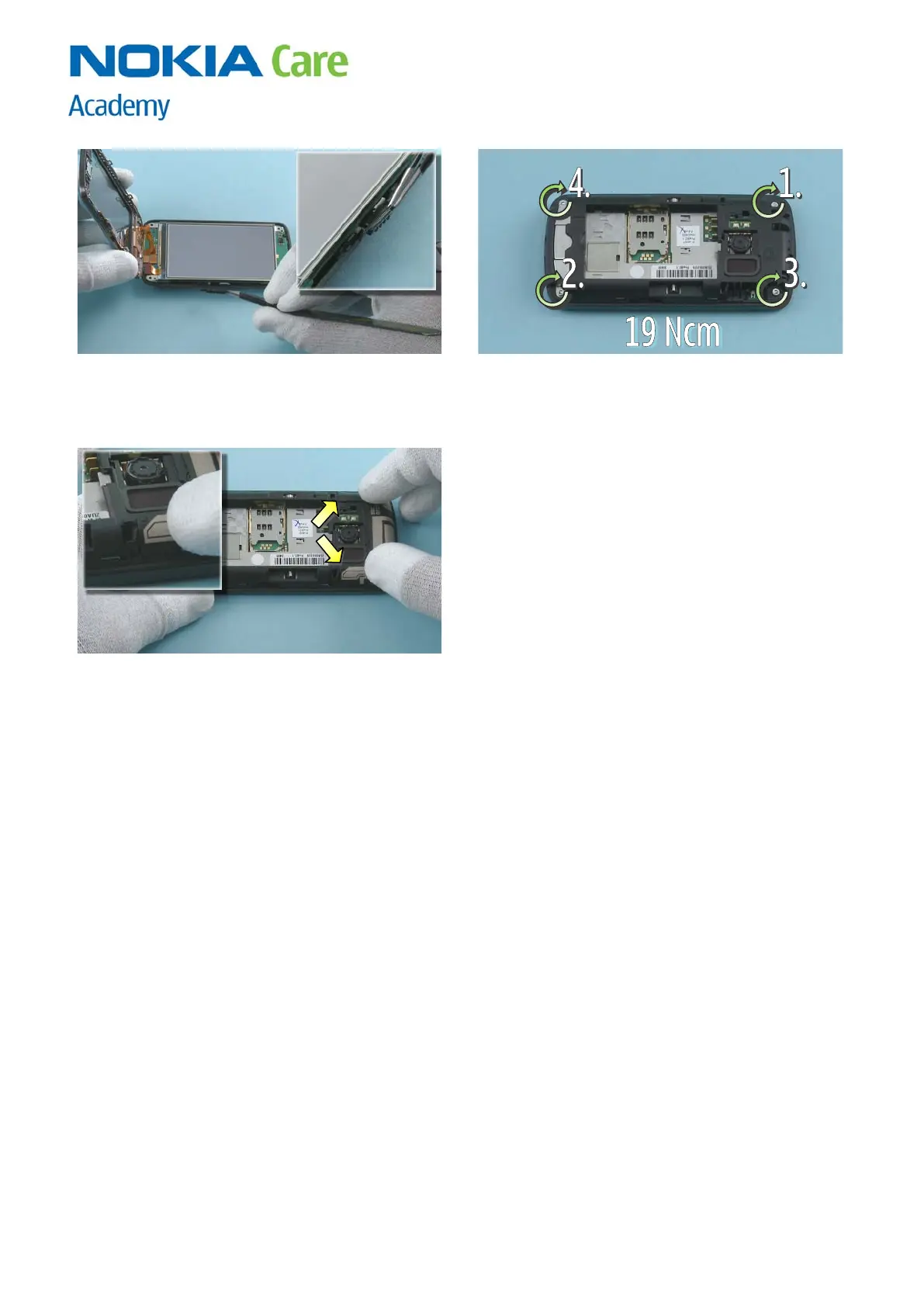

7) Place the LOCK KEY with the tweezers. Make sure
that the LOCK KEY is correctly placed.
8) Tighten the four TORX+ size 6 screws to the
torque of 19 Ncm in the order shown.
9) Place the ANTENNA directly on top of the B-COVER.
Press the ANTENNA carefully so that the two shown
guiding pins are attached.
