Nokia E5-00 - Disassembly Instructions

Nokia E5-00
RM-632 / RM-634 / RM-699
Service Manual Level 1&2
12
Co nf id e nt ial | Cop y rig ht © 2011 NOKIA A ll right s reserved
Version 3.0

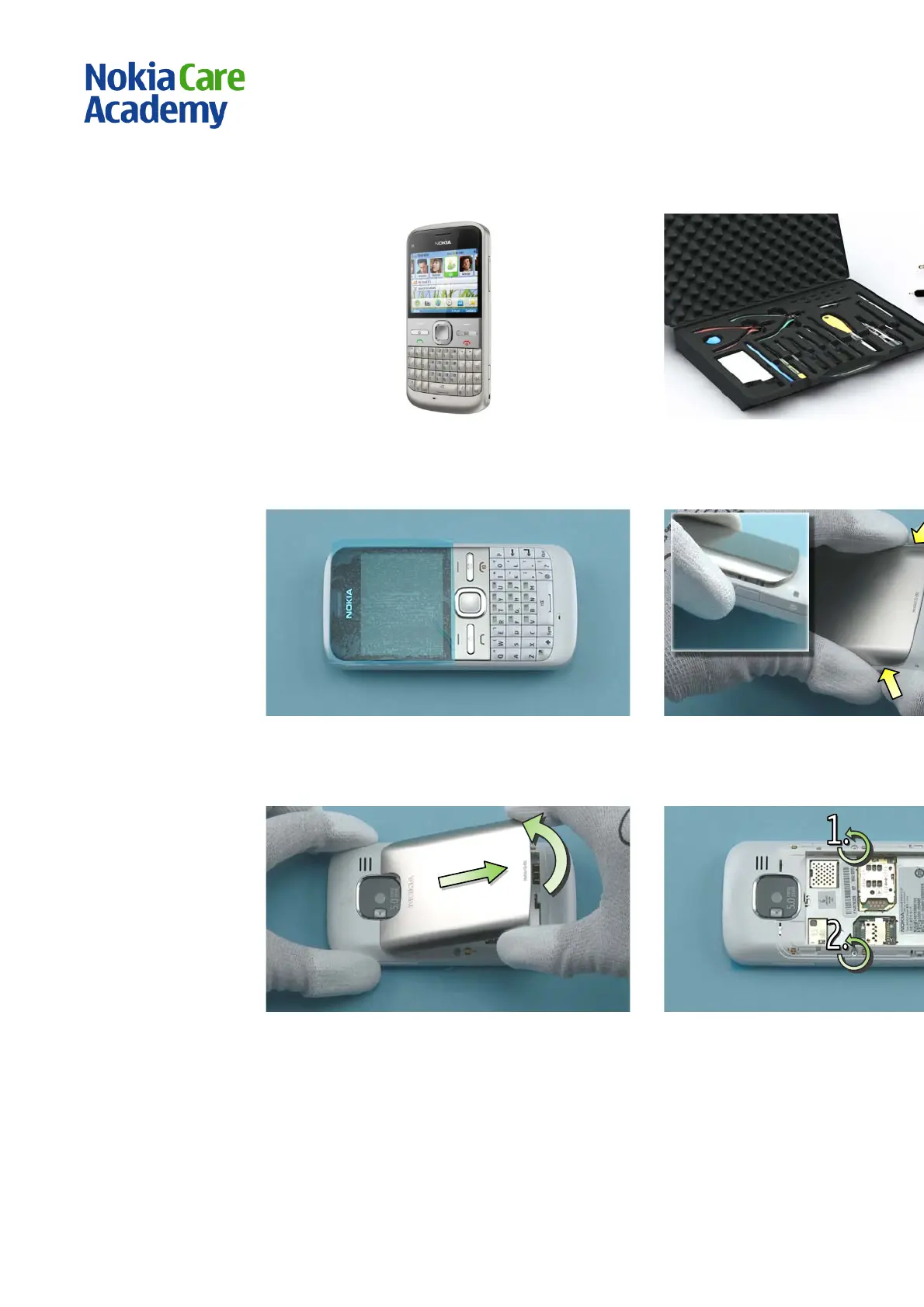

9. DISASSEMBLY INSTRUCTIONS
1) Nokia E5-00 disassembly.
2) You must use the Nokia Standard Toolkit version
2. You will also need the camera removal tool SS-88,
AV plug and the DC plug.
3) Protect the A-COVER window with a protective
film.
4) Release the BATTERY COVER ASSEMBLY by pressing
the release buttons on both sides.
5) Remove the BATTERY COVER ASSEMBLY by first
lifting up the bottom end. Then pull the BATTERY
COVER ASSEMBLY in the direction shown.
6) Unscrew the two TORX+ size 4 screws in the order
shown. Do not use them again!
