Nokia E51 - Assembly Hints

13
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
E51 RM-244
Page
(13) ISSUE 1
Service Manual Level 1&2
ASSEMBLY HINTS12.

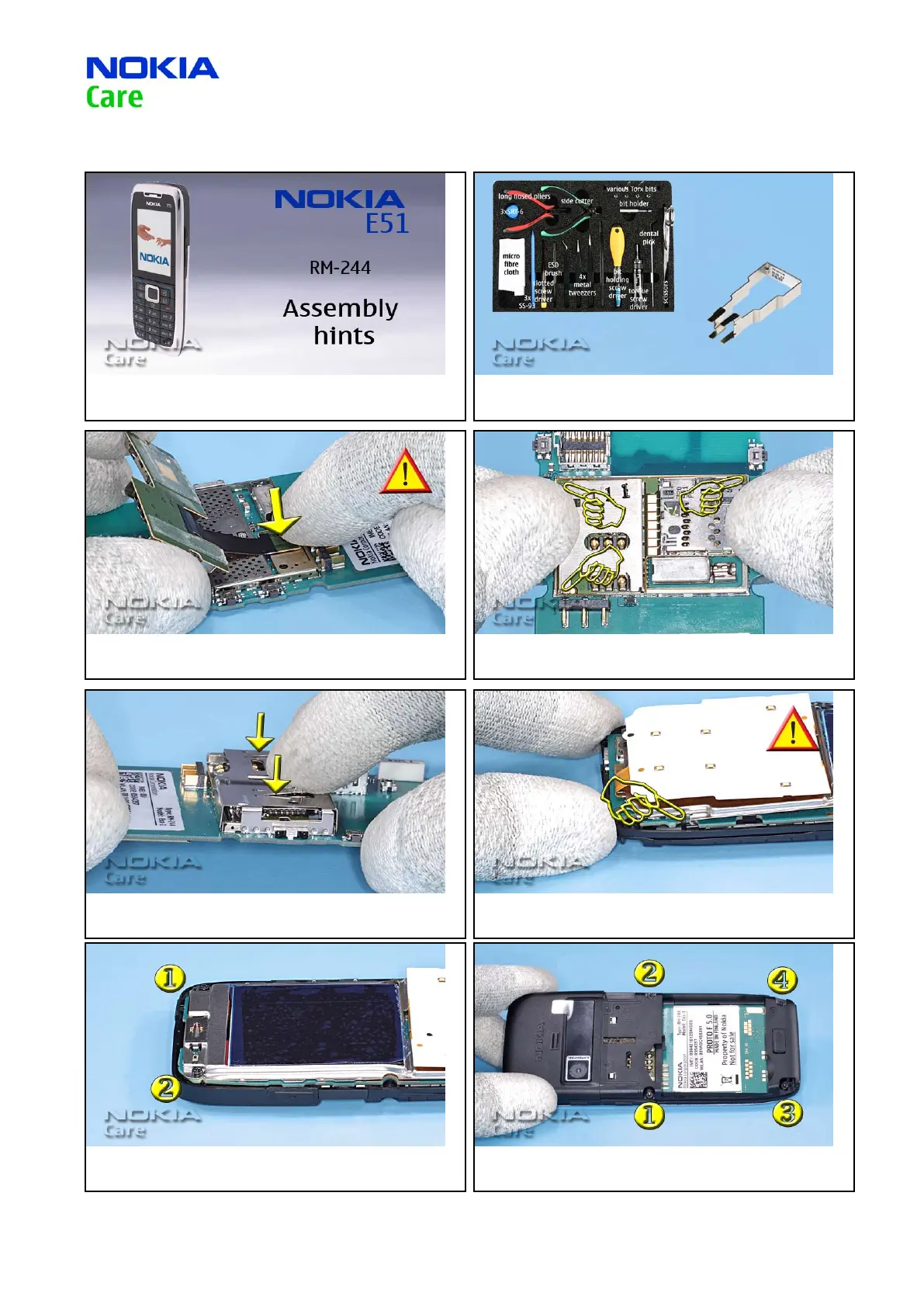

1. Nokia E51 assembly hints. 2. You will need the Nokia Standard Toolkit version 2.0 and the
camera removal tool SS-102.
3. Connect the CARD READER ASSEMBLY to the PWB. 4. Align the CARD READER with the shielding lid and secure it by
pressing it carefully into place.
5. Fit the CARD SHIELD. 6. Attach the hook of the UI FRAME to the PWB.
7. Insert new screws and tighten them with a torque of 17Ncm
in the order shown.
8. Tighten the screws with a torque of 19Ncm in the order
shown.
