Nokia E51 Service Manual

10
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
E51 RM-244
Page
(13) ISSUE 1
Service Manual Level 1&2

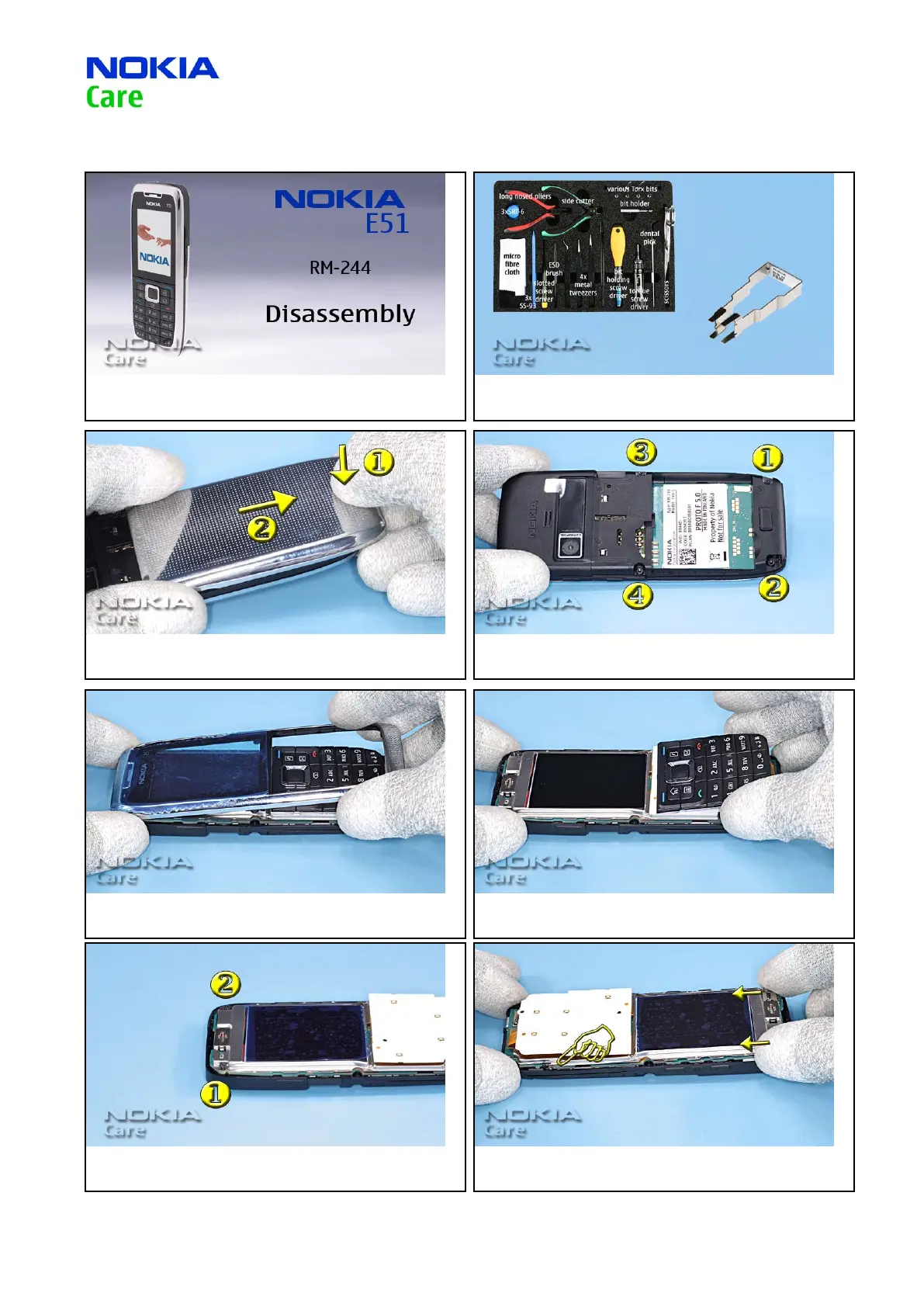

DISASSEMBLY INSTRUCTION11.
1. Nokia E51 disassembly. 2. You will need the Nokia Standard Toolkit version 2.0 and the
camera removal tool SS-102.
3. Unlock and remove the BATTERY COVER. 4. Unscrew the four screws in the order shown.
5. Remove the A-COVER ASSY. 6. Remove the KEYMAT.
7. Unscrew the two screws in the order shown. 8. Carefully slide the UI FRAME ASSY in the shown direction...

Nokia E51 Specifications

General

Display diagonal	2 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
User memory	4096 MB
Internal memory	130 MB
Flash card support	Yes
Rear camera resolution (numeric)	2 MP
Networking type	GSM
Playback formats	MP3/MPEG-4/AAC/eAAC+/WMAAMR-NB/AMR-WB
Operating frequency	850/900/1800/1900 MHz
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Ringer type	Polyphonic
Form factor	Bar
Personal info management (PIM)	Calendar, To-do list
Product color	Silver
Battery type	BP-6MT
Talk time (2G)	4.4 h
Battery capacity	1050 mAh
Standby time (2G)	312 h
Bluetooth version	2.0+EDR
Data network	GPRS

Weight and Dimensions

Depth	114.8 mm
Width	46 mm
Height	12 mm
Weight	100 g
