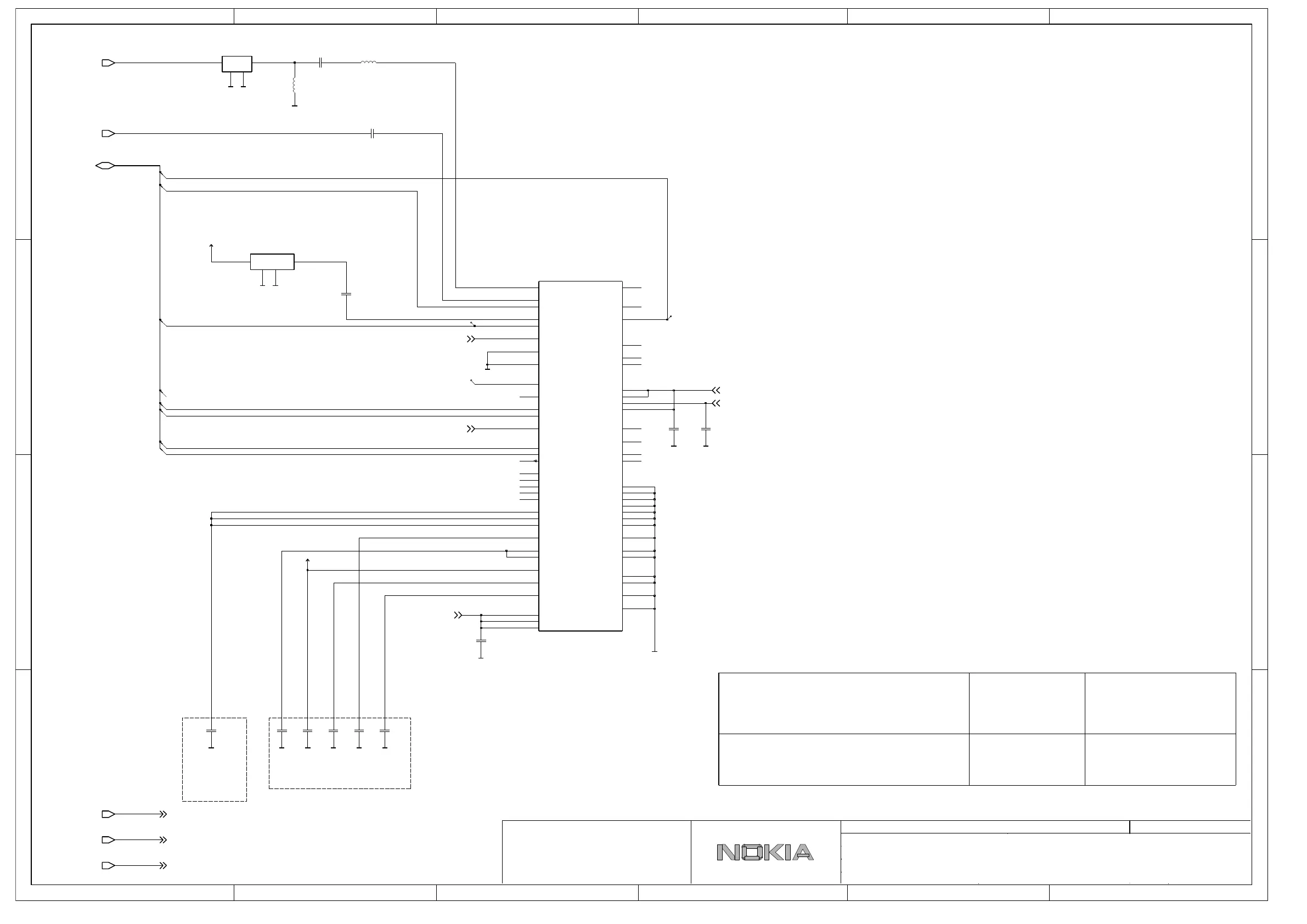

Nokia E52 Service Schematics

MODE
CUSTOMERS NOT USING PA BLANKING
MODE
(PREVENTS FLOATING
INPUT)
C
A
1)TRACK INDUCTANCE FROM VDD_DIG, N6200-H5 TO C6212 MUST BE 1nH MAX.
2)TRACK INDUCTANCE FROM VCC_XXX, N6200 TO DECOUPLING CAPS MUST BE 1nH MAX.
SEE NOTE 2
1
4 6
65
C
5
B B
4
2
D
A
32
D
31
GPS COST 4.0
REF RANGE = 6200-6299
N6200 (PIN)
PLACE CLOSE
TO PIN H5
PLACE CLOSE
TO PIN A2
IO_PA_EN
GND
CONNECT
TO
100n
SEE NOTE 1
NOTES
Name
GPS COST 4.0
This document is property of Nokia Corporation
THIS DRAWING CONTAINS PROPRIETARY AND CONFIDENTIAL INFORMATION.
UNAUTHORIZED REPRODUCTION OF THIS DRAWING IS NOT PERMITTED.
C6206
THIS DRAWING IS PROTECTED BY COPYRIGHT AS AN UNPUBLISHED WORK.
Copyright (C) Nokia Corporation. All rights reserved.
Appr
C6202
100n
J6201
J6202
J6200
GND
OUT+Vcc
GNDGND
VCC_TCXO
GND
VDD_DIG
H5
H6
IO_PA_EN
VSS_DIG
H7
H8
VSS_DIG
-16.368M
G6200 16.368MHz
KT21F-CCW25A
VDDS
G5
G6
U2TX
G7
PG_PULSE_EN
VDD_DIG
G8
H1
VBAT1
GPS_EN_RESET
H2
AGPS_CLK_REQ
H3
VSS_DIG
H4
F5
F6
BYPASS
F7
VSS_DIG
F8
VDDS
G1
VSS_IF
G2
VCC_IF
TEST_IF_P
G3
G4
SLEEPXN
TDI
E5
E6
I2C_SDA_U1RX
VSS_DIG
E7
E8
IO_TIMESTAMP_DATARDY
VSS_ANALOG
F1
F2
VCC_TCXO
TEST_IF_M
F3
VBAT1
F4
I2C_UART_N
IFORCE
D6
TCK
RTC_CLK
D7
TMS
D8
E1
VBAT2
E2
VCC_MIX
E3
VSS_MIX
CONFIG_MODE
E4
C5
TDO
NTRST
C6
C7
IO_INT_U1CLK
C8
IO_RF_LNA_EN
LNA_IN
D1
D2
VSS_LNA
VSS_MIX
D3
VPP
D4
D5
XTAL_OUT
B4
DBGEN
B5
B6
I2C_SCL_U1TX
B7
VDD_DIG
B8
VSS_DIG
VCC_LNA
C3
C4
VPP
A3
VCC_PLL
A4
GPS_CLK
VSENSE
A5
REF_CLK
A6
A7
VDDS
VSS_DIG
A8
B2
VSS_LNA
VSS_PLL
B3
GND
N6200
GPS5350_ROM3.0
A1
VCC_LNA
VBAT3
A2
C6209
100n
GND
100n
C6212
C6205
100n
GND
GND
GND
GND
C6211
3p3
1575.42MHz
B39162B9080L310
Z6200
IN OUT
C6201
33p
VCC_TCXO
3n9H
L6200
6n8H
L6201
6
GND
C6200
33p
100n 100n
C6203
GND
C6204
GND
3
GND
100n
C6210
4
7
1
0
5
2
C6207
100n
GND
VIO_GPS
VBATT_1_3_GPS
GPS(15:0)
VIO_GPS
GND GND
VBATT_2_GPS
VIO_GPS
ANT_GPS
VIO_GPS
VBATT_2_GPS
REFCLK_I
VBATT_1_3_GPS
