E55 RM-482, RM-483
Service Manual Level 1&2
14 CONFIDENTIAL
5
6.1

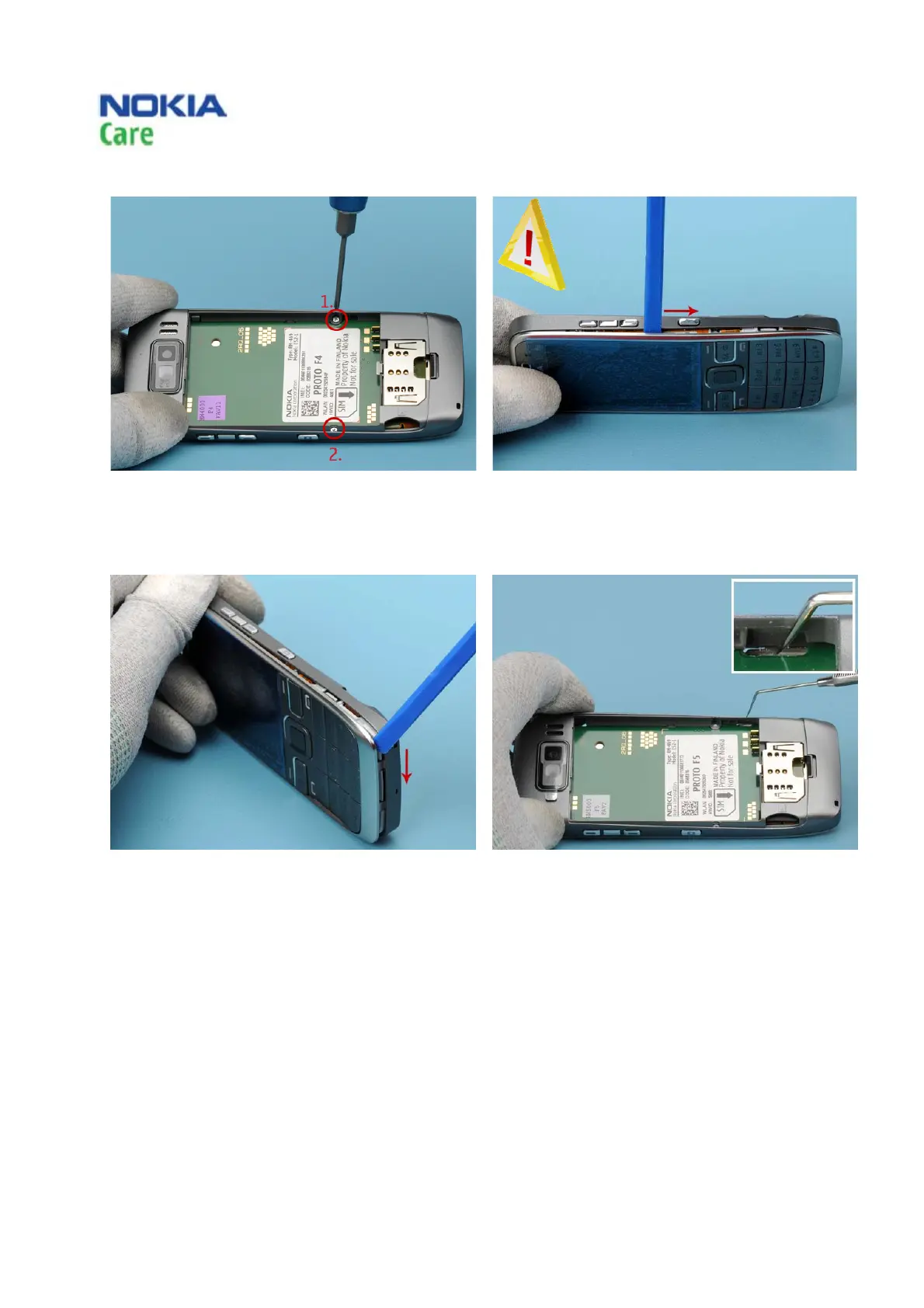

Release the cross slotted screws with the SS-112
tool.
Release the A-COVER using the SS-93 tool. Start
from the middle of the side.
Be careful not to damage the connectors.
6.2
6.3
Slide SS-93 around the bottom to the other side
to open the cover.
After you have released the A-COVER, press the
keymat release slot at the bottom of the phone
with the dental tool.
