E55 RM-482, RM-483
Service Manual Level 1&2
15 CONFIDENTIAL
7
8.1

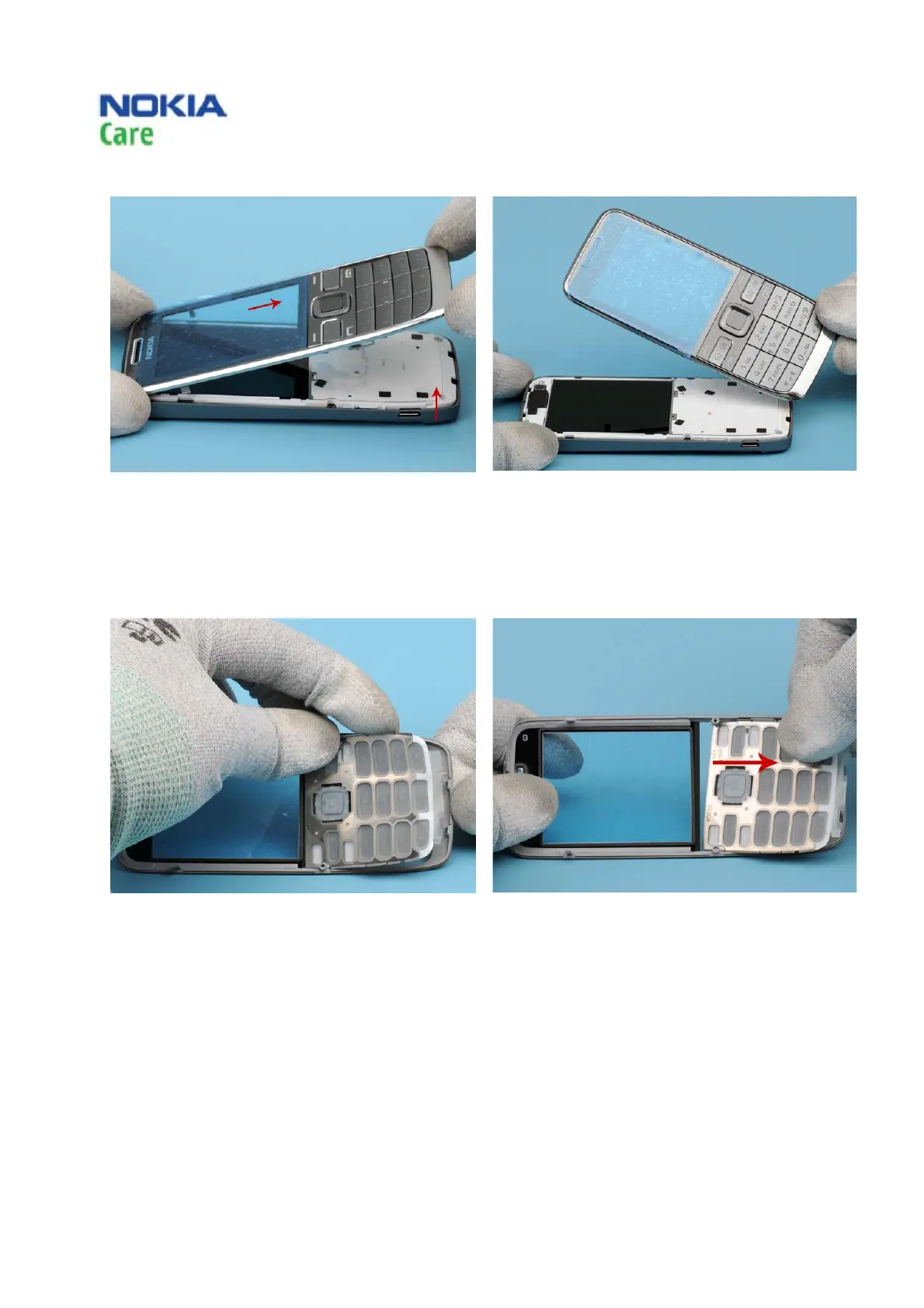

After you have released the keymat, the A-COVER
can be taken off by tilting it from the bottom and
pulling it towards the keymat.
Note: Check that the screw towers in the A-COVER
are intact before using the A-COVER in assembly.
Separate the KEYMAT from the A-COVER.
8.2
8.3
Start separating the KEYMAT from the bottom. Pull the KEYMAT to the direction shown in the
picture.
Issue 1 Copyright © 2008 NOKIA. All rights reserved.
