E55 RM-482, RM-483
Service Manual Level 1&2
18 CONFIDENTIAL
16.3
16.4

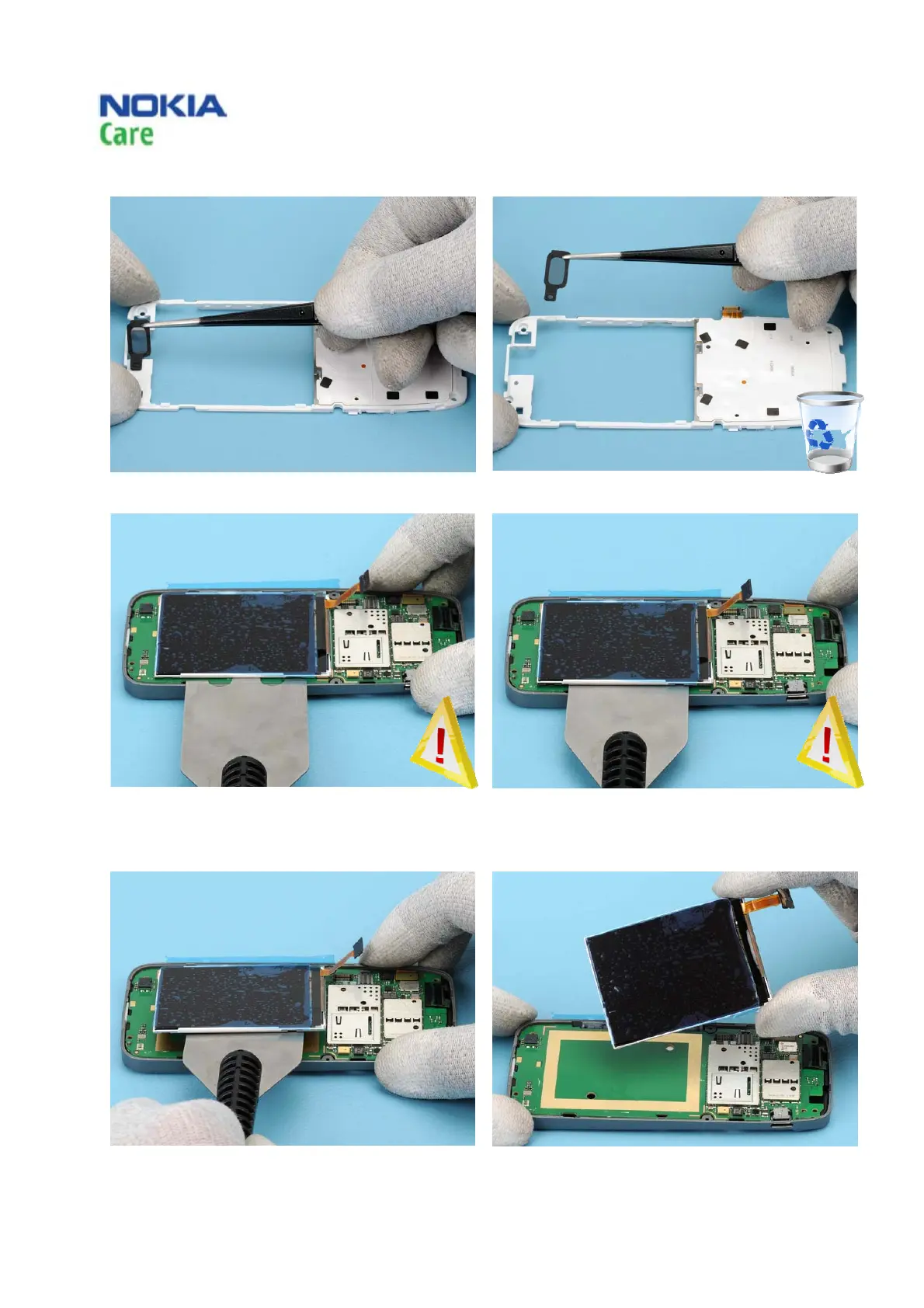

Remove the EARPIECE GASKET.
17.1
17.2
Release the glued LCD carefully with the SS-195
tool. Start from the side of the LCD.
Slide SS-195 carefully under the LCD…
17.3
17.4
… and lift it upwards. Remove the LCD.
Note: LCD ADHESIVE cannot be re-used. Change it
into a new one before re-assembly.
