Nokia E55 - Page 19

E55 RM-482, RM-483
Service Manual Level 1&2
19 CONFIDENTIAL
18 19

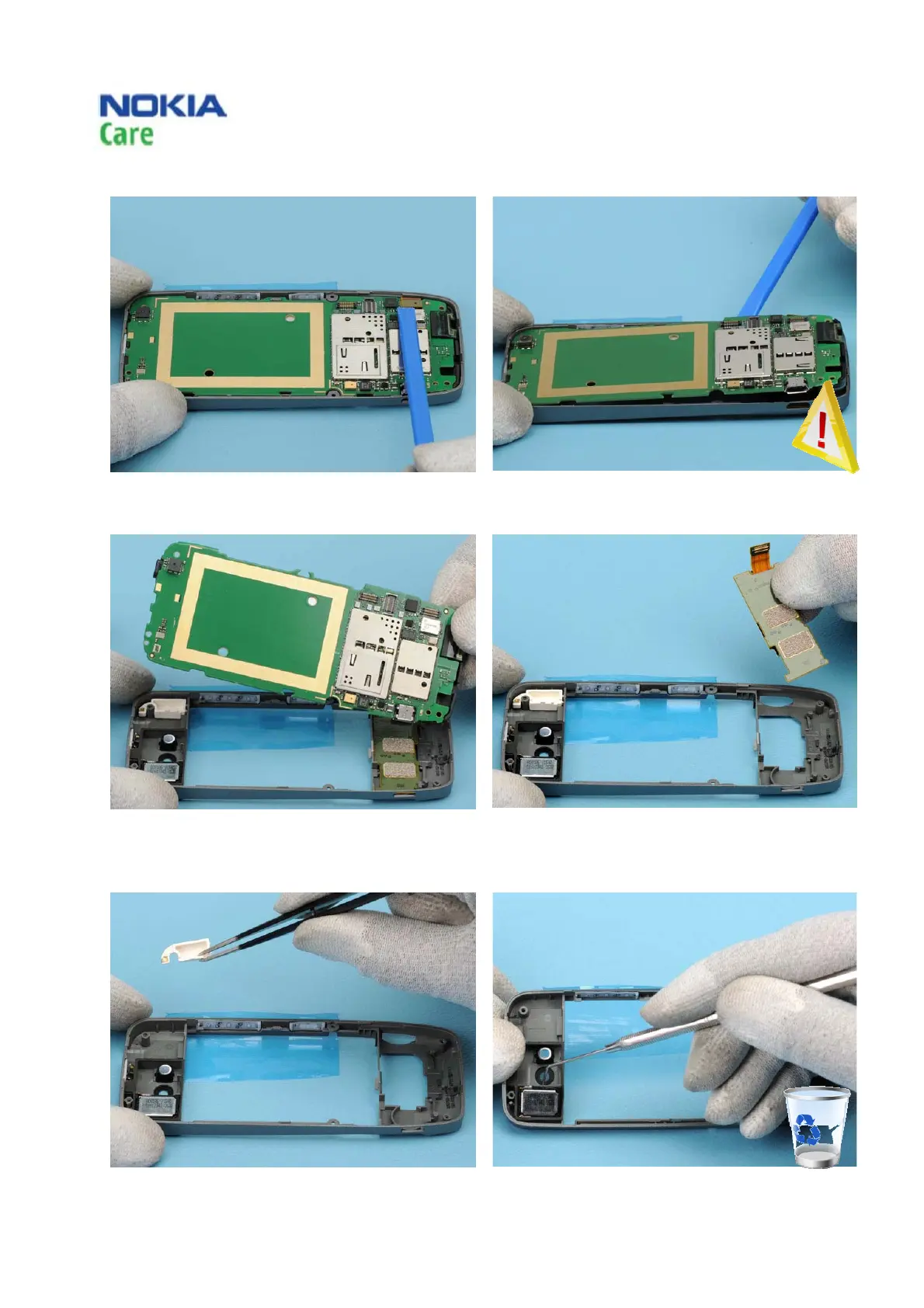

Release the CARD READER MODULE connector. Carefully lift up the PWB using SS-93.
20
21
Remove the PWB. Remove the CARD READER MODULE from the B-
COVER.
22
23
Remove the NON-CELLULAR ANTENNA MODULE
with tweezers.
Lift up the IHF SPEAKER using a dental tool.
