DISASSEMBLY INSTRUCTION11.

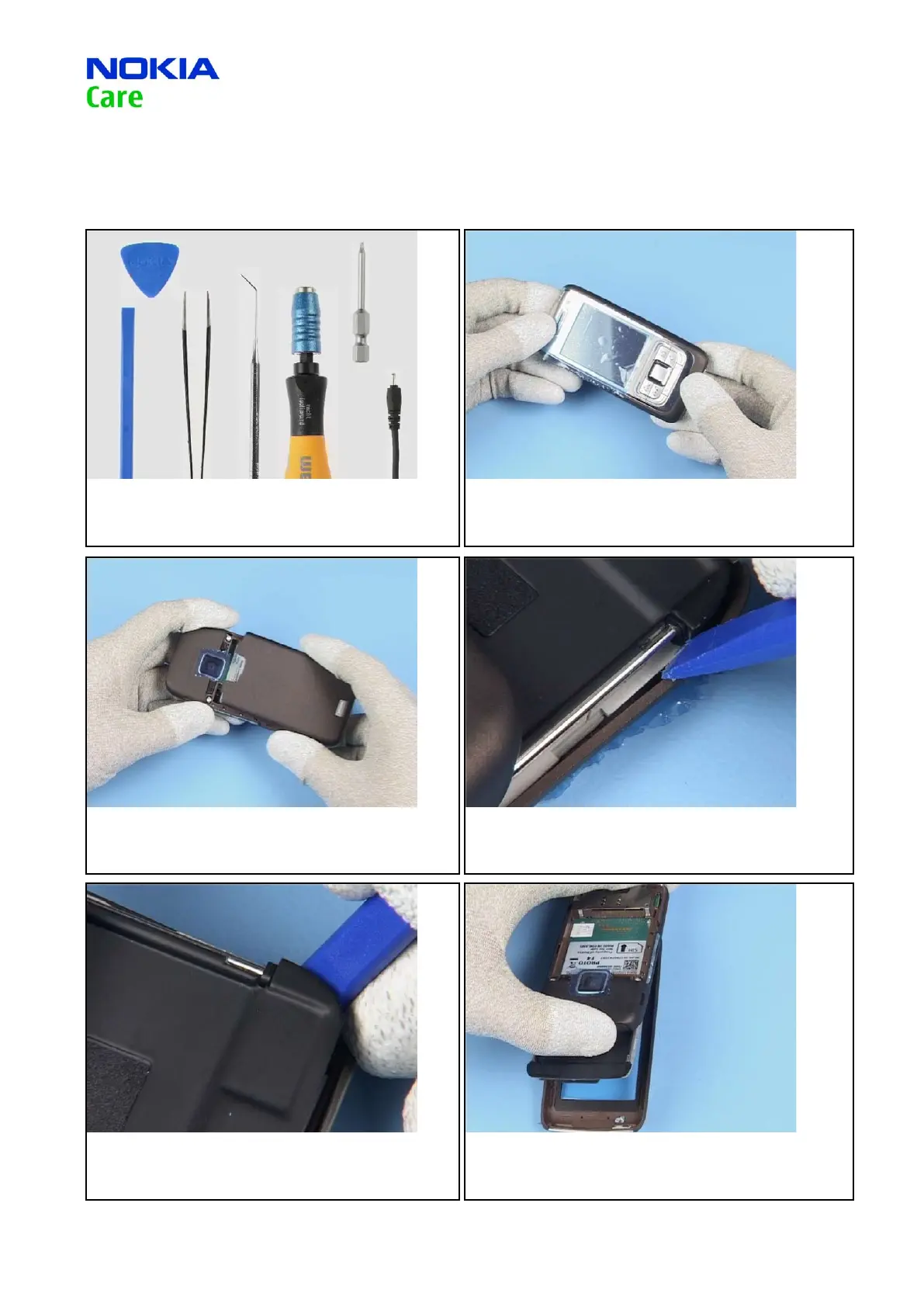

1. Needed tools: The SS-93, the SRT-6, metal tweezers, the
dental pick, a bit holder with a Torx Plus size 6 bit and a dc
plug.
2. Always cover the windows with a protective lm.
3. Unlock and remove the BATTERY COVER.
4. Shift open the assembly. Carefully pry open the clips of the
A-COVER with the SS-93…
5. …on both sides.
6. Lift up the whole assembly.
