Nokia E65 Service Manual

Training and Vendor Development
CMO Operations & Logistics
Multimedia Creation & Support CONFIDENTIAL
19.Jan.2007
23
Service Manual E65 RM-208 Copyright © 2007 NOKIA Corporation. All rights reserved.
Approved 1.0
MGR
Page
(44)

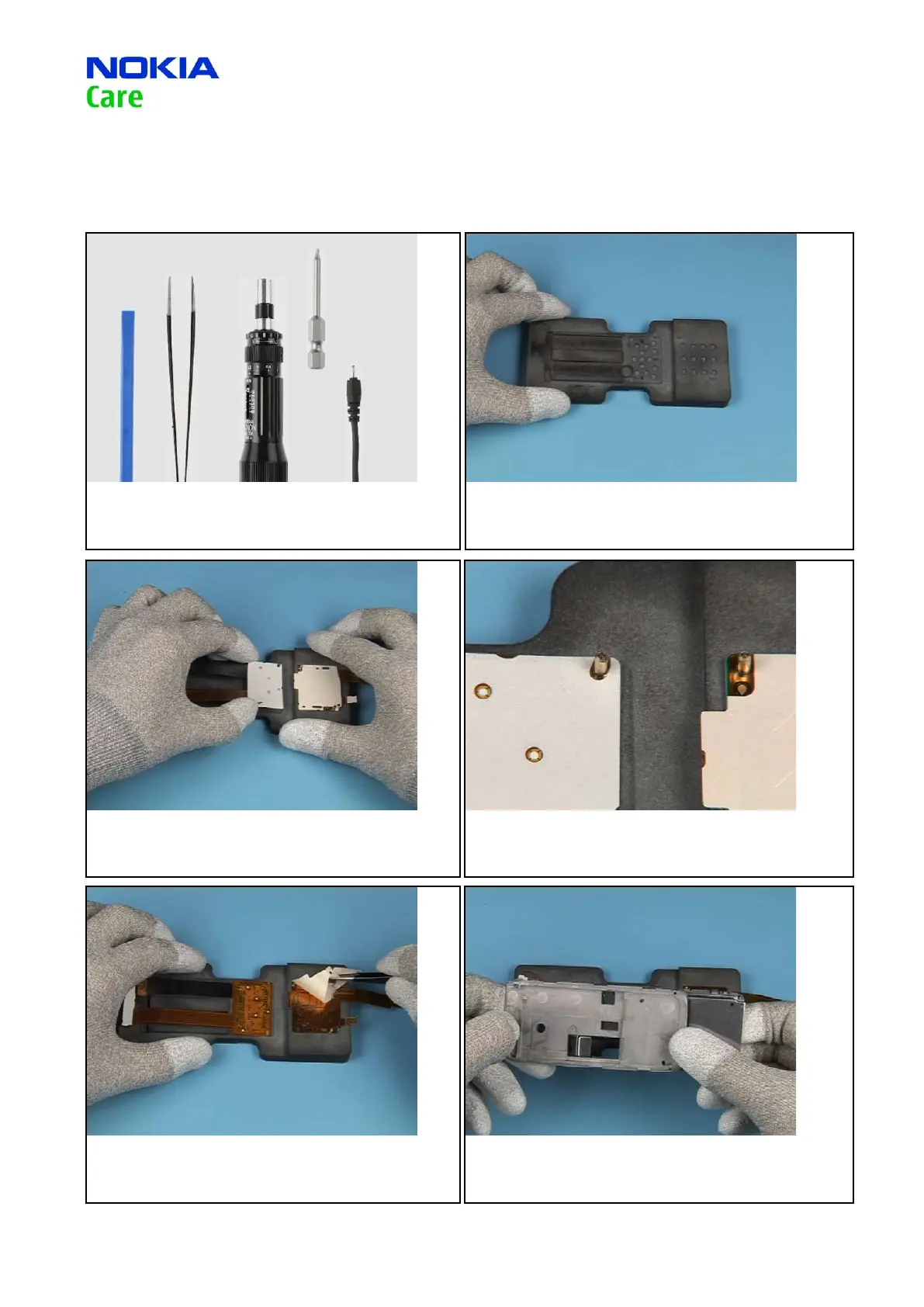

ASSEMBLY INSTRUCTION 12.
1. Needed tools: The SS-93, metal tweezers, a torque driver
with a Torx Plus size 6 bit and a DC plug.
2. The SS-110 Alignment tool is also needed for correct
placement of the ex foils.
3. Place the ex foil assemblies.
4. Mind the guide.
5. Remove all protective lms.
6. Bring the slider into position shown.

Nokia E65 Specifications

General

Display diagonal	2.2 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	50 MB
Rear camera type	Single camera
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Ringer type	Polyphonic
Talk time (2G)	6 h
Battery capacity	1000 mAh
Standby time (2G)	260 h
Form factor	Slider
Product color	Silver
2G standards	GPRS
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	49 mm
Width	105 mm
Height	15.5 mm
Weight	115 g
