GONOGO TEST26.
Before starting the
GoNoGo test, check that
camera window is clean.
If not, clean the window
with cloth.
To test the Camera, Bluetooth WLAN and IRDA functionality refer to the phone
User`s guide.
The User´s Guide is available on www.nokia.com.
Bluetooth test
You need another Bluetooth device (e.g. 6230) to do a GoNoGo test.
Make sure that Bluetooth is activated in the reference unit. The distance of the devices should be not more than 5m
from each other.
Infrared test
You need another infrared device (e.g. 6230) to do a GoNoGo test. The infrared windows of the devices must be
directed to each other and should have a distance of approximate 15 cm. Make sure that infrared is activated in
receiver device.
Warning: Do not point the IR (infrared) beam at anyone’s eye or allow it to interfere with other IR devices. This
device is a Class 1 Laser product.

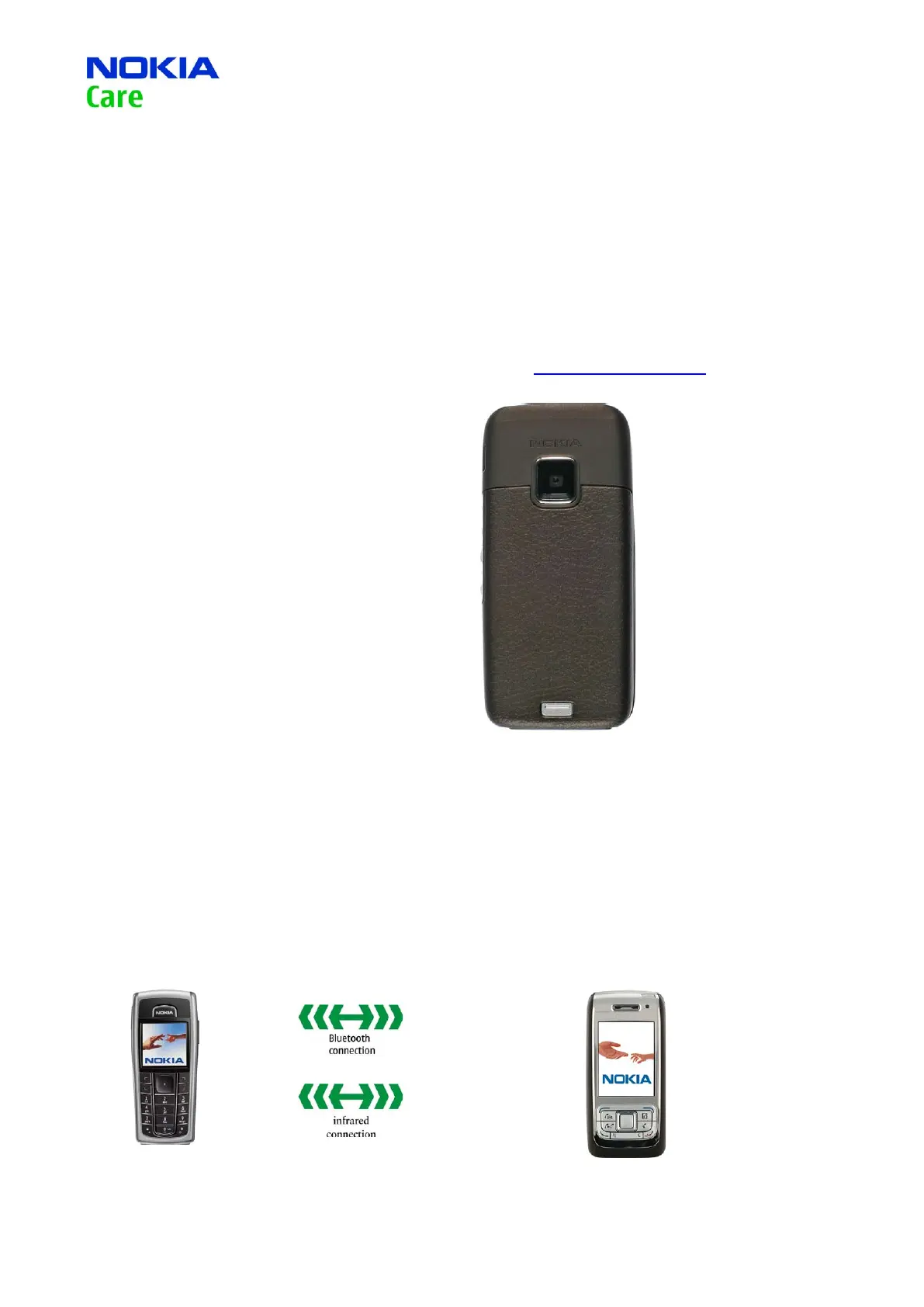

Reference unit, Bluetooth /infrared activated Test unit

Nokia E65 Specifications

General

Display diagonal	2.2 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	50 MB
Rear camera type	Single camera
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Ringer type	Polyphonic
Talk time (2G)	6 h
Battery capacity	1000 mAh
Standby time (2G)	260 h
Form factor	Slider
Product color	Silver
2G standards	GPRS
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	49 mm
Width	105 mm
Height	15.5 mm
Weight	115 g
