Nokia E75 - First Device Start-up

Nokia E75 RM-412/RM-413
Service Manual Level 1&2
16 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

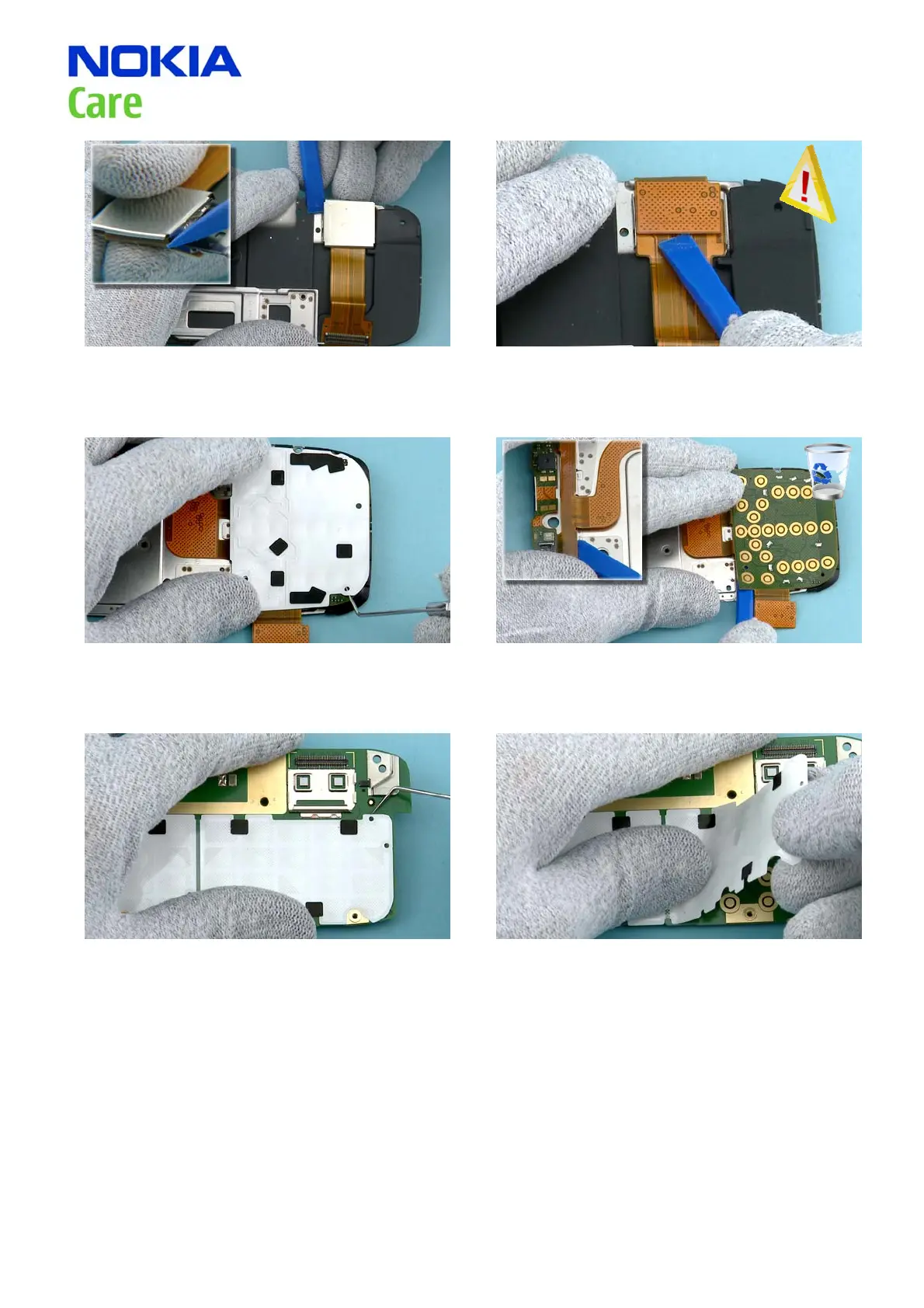

25) Remove the FLEX SLIDER using the SS-93. 26) Open the connector of the DYNAMIC FLEX and
separate it from the SLIDE MODULE. Be careful to not
to damage the connector.
27) Peel off the DOMESHEET using the dental tool. 28) Detach the 2 MX UI FLEX ASSEMBLY from the SLIDE
MODULE with the SS-93. Discard the 2MX UI FLEX
ASSEMBLY, do not use it again.
29) Start releasing the QWERTY DOMESHEET with the
dental tool.
30) Carefully remove the QWERTY DOMESHEET. Make
sure that the whole QWERTY DOMESHEET is removed.
