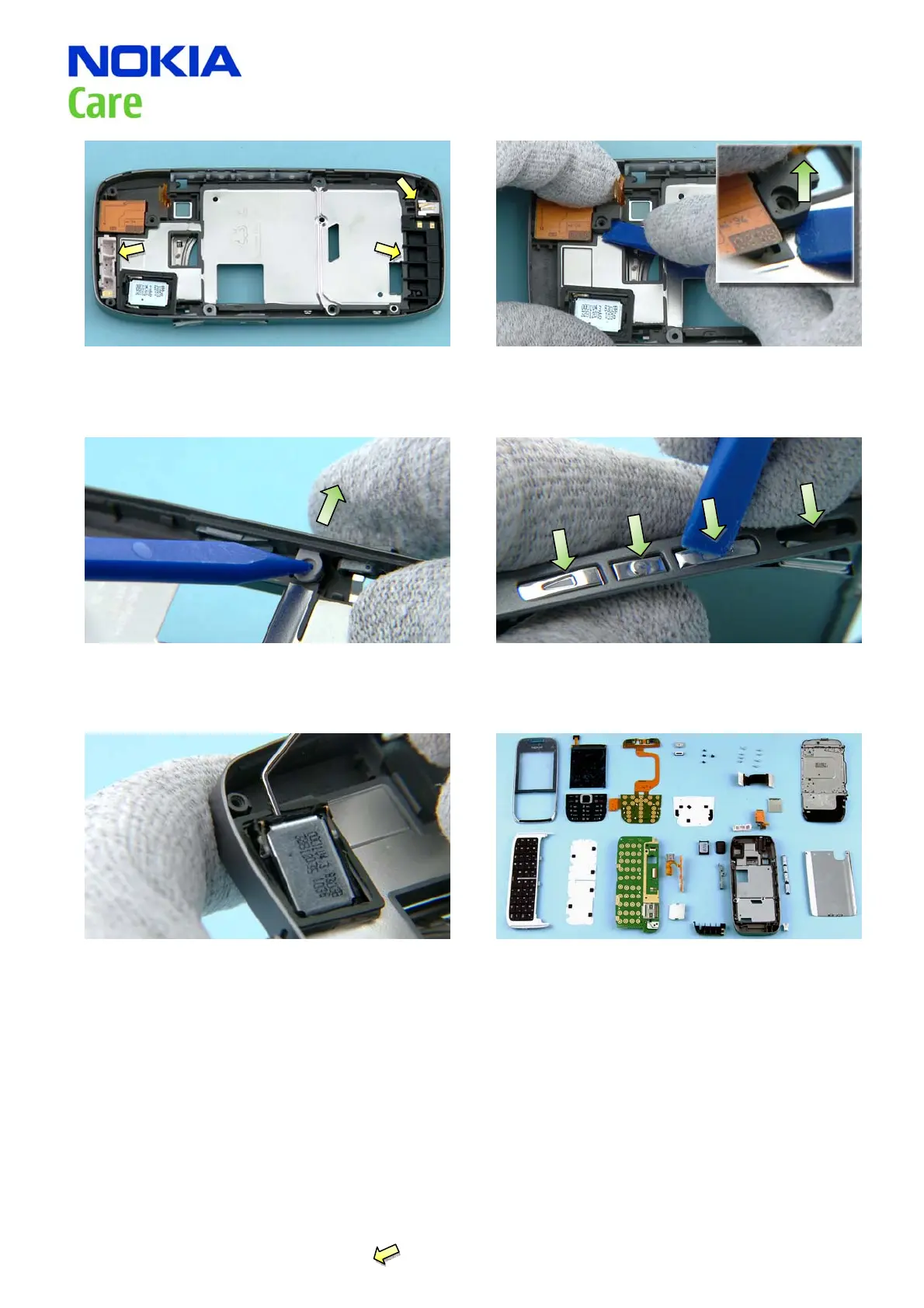

25) Remove the DC JACK, ANTENNA ASSEMBLY, and
GPS/BT WLAN ANTENNA with the tweezers.
26) To release the AV JACK, slide the SS-93 under the
clip and carefully lift it up as shown. Then remove the
AV JACK.
27) Use the sharp end of the SS-93 to push out the
USB/SD-DOOR.
28) Carefully push each button of the SIDE KEY with
SS-93 to remove it.
29) Finally use the dental tool to release the IHF
SPEAKER and the IHF SPEAKER gasket.
-END OF DISASSEMBLY-
