Nokia E90 Service Manual

14
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
E90 RA-6
Page (51) ISSUE 1
Service Manual Level 1&2

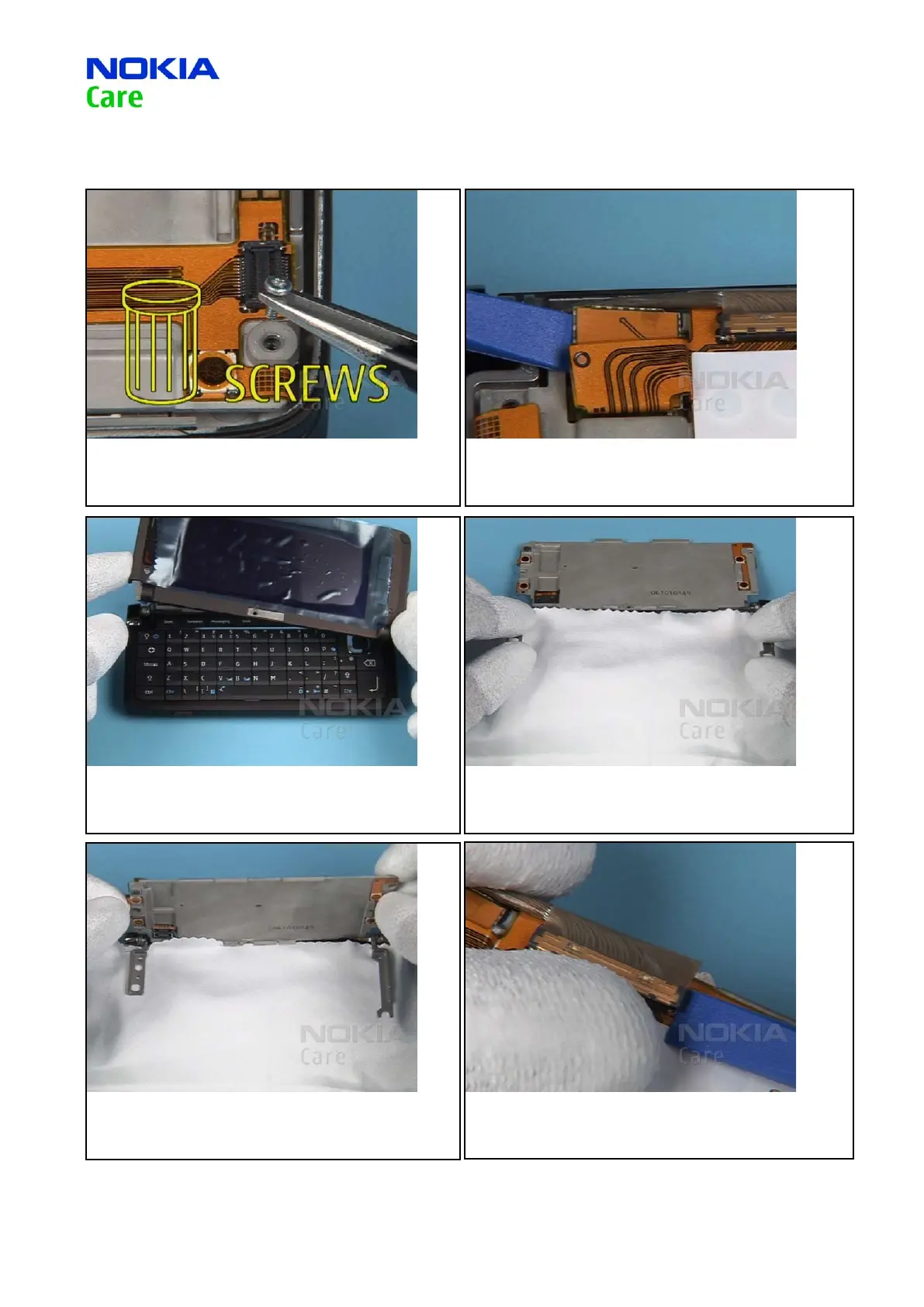

13. Discard them. Do not use them again.
14. Gently lever up the ex connector of the LCD AM 800x352.
15. Open the assembly. Lift up the C-COVER, beginning at the
QWERTY KEYMAT side.
16. It is important to protect the surface with a piece of cloth
before continuing. Flip over both parts of the hinge.
17. Now turn the CHASSIS ASSEMBLY.
18. Be double carefully while opening these 2 MICROCOAX
HARNESS connectors.
