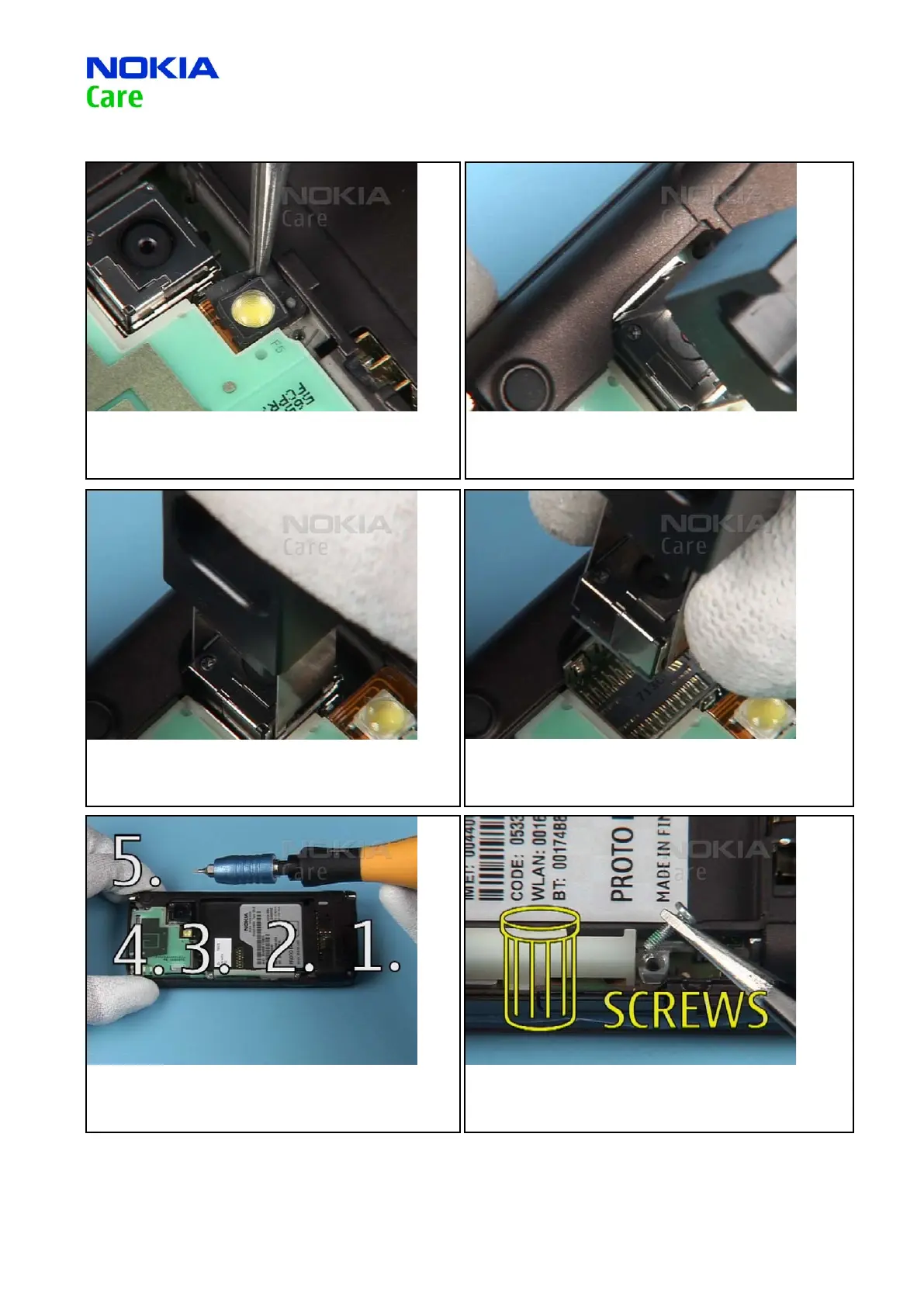

7. Pull up the FLASH GASKET.
8. Insert the SS-81 into the housing of the CAMERA MODULE. Note
the correct positioning of the tool.
9. Gently push it down. The clips of the housing are released
now.
10. Lift out the CAMERA MODULE now.
11. Unscrew these 5 TORX PLUS size 4 screws in the order
shown.
12. Discard the screws. Do not use them again when
reassembling.
