Nokia Lumia 820 User Manual

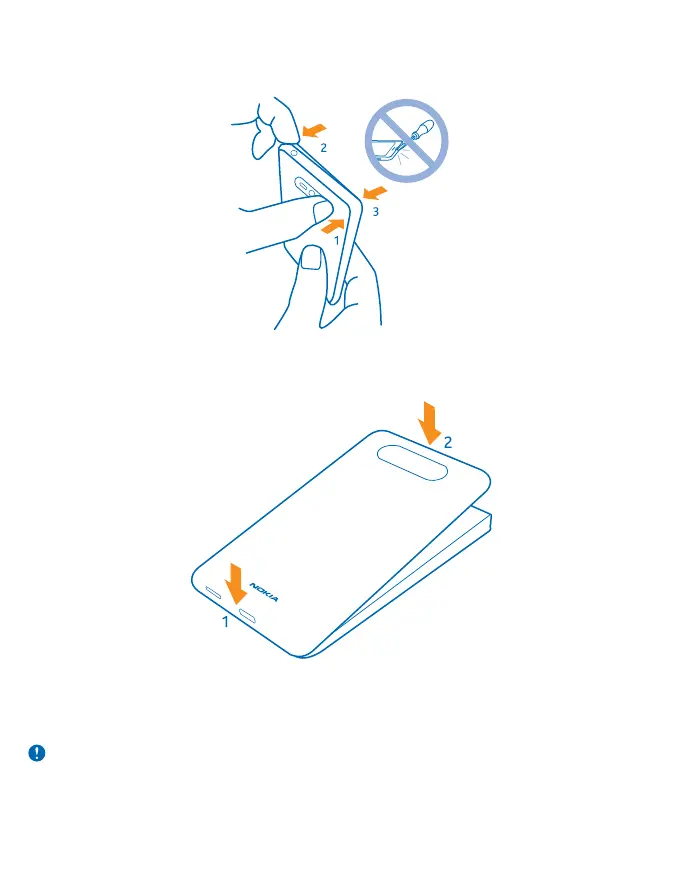

2. At the top left corner, put your fingernail in the seam between the screen frame and the back cover.
Bend the cover until a side seam opens slightly.
3. Repeat on the other corner, and remove the cover.
Replace the back cover
Press the bottom edge of the back cover against the bottom edge of the phone. Then press the back
of the cover until it snaps into place.
Insert the SIM card
Read on to learn how to insert your SIM card into your phone.
Important: Your device uses a micro-SIM card, also known as a mini-UICC SIM card. Use of
incompatible SIM cards, or use of SIM card adapters, may damage the card or the device, and
may corrupt data stored on the card.
© 2014 Microsoft Mobile. All rights reserved.
7

Nokia Lumia 820 Specifications

General

Processor	Dual-core 1.5 GHz Krait
RAM	1 GB
Internal Storage	8 GB
Expandable Storage	microSD, up to 64 GB
Front Camera	VGA
Dimensions	123.8 x 68.5 x 9.9 mm
Weight	160 g
Colors	Black, Gray, Red, Yellow, White, Blue, Violet
Network	GSM / HSPA / LTE
SIM	Micro-SIM
WLAN	Wi-Fi 802.11 a/b/g/n, dual-band
Bluetooth	3.1, A2DP, EDR
GPS	Yes, with A-GPS, GLONASS
NFC	Yes
USB	microUSB 2.0
Display	4.3 inches, AMOLED, 480 x 800 pixels
Rear Camera	8 MP, Carl Zeiss optics
Battery	1650 mAh, removable
Operating System	Microsoft Windows Phone 8
Radio	FM radio
